Probe to translate from a TraceSource to two more easily parsed TraceSources. More...

#include "satellite-phy-rx-carrier-packet-probe.h"

Inheritance diagram for ns3::SatPhyRxCarrierPacketProbe:

Collaboration diagram for ns3::SatPhyRxCarrierPacketProbe:

Public Types
typedef void(*	RxStatusCallback) (uint32_t nPackets, const Address &from, bool status)
	Common callback signature for trace sources related to packets reception by PHY and its status. More...

Public Member Functions
	SatPhyRxCarrierPacketProbe ()
	Default constructor. More...

virtual	~SatPhyRxCarrierPacketProbe ()
	Destructor for SatPhyRxCarrierPacketProbe. More...

virtual bool	ConnectByObject (std::string traceSource, Ptr< Object > obj)
	connect to a trace source attribute provided by a given object More...

virtual void	ConnectByPath (std::string path)
	connect to a trace source provided by a config path More...

void	SetValue (uint32_t nPackets, const Address &address, bool statusFlag)
	Set a probe value. More...

Static Public Member Functions
static TypeId	GetTypeId ()
	Get the type ID. More...

static void	SetValueByPath (std::string path, uint32_t nPackets, const Address &address, bool statusFlag)
	Set a probe value by its name in the Config system. More...

Private Member Functions
void	TraceSink (uint32_t nPackets, const Address &address, bool statusFlag)
	Method to connect to an underlying ns3::TraceSource with arguments of type double and const Address&. More...

Private Attributes
Address	m_address
	The socket address for the traced packet burst. More...

uint32_t	m_nPackets
	The traced number of packets in the packet burst. More...

TracedCallback< uint32_t, const Address &, bool >	m_output
	Output trace, the number of packets, source address, and status flag. More...

TracedCallback< bool, bool >	m_outputBool
	Output trace, previous and current status flag. More...

TracedCallback< uint32_t, uint32_t >	m_outputUinteger
	Output trace, previous and current number of packets. More...

bool	m_statusFlag
	The traced packet burst status flag. More...

Detailed Description

Probe to translate from a TraceSource to two more easily parsed TraceSources.

This class is designed to probe an underlying ns3 TraceSource exporting a packet burst information from SatPhyRxCarrier. This probe exports a trace source "Output" with arguments of type uint32_t, const Address&, and bool. This probe exports other trace sources "OutputUinteger" and "OutputBool" with arguments of type uint32_t and bool, respectively. The trace sources emit values when either the probed trace source emits a new value, or when SetValue () is called.

Definition at line 51 of file satellite-phy-rx-carrier-packet-probe.h.

Member Typedef Documentation

◆ RxStatusCallback

typedef void(* ns3::SatPhyRxCarrierPacketProbe::RxStatusCallback) (uint32_t nPackets, const Address &from, bool status)

Common callback signature for trace sources related to packets reception by PHY and its status.

Parameters

nPackets	number of upper layer packets in the received packet burst.
from	the MAC48 address of the sender of the packets.
status	whether a PHY error or collision has occurred.

Definition at line 118 of file satellite-phy-rx-carrier-packet-probe.h.

Constructor & Destructor Documentation

◆ SatPhyRxCarrierPacketProbe()

ns3::SatPhyRxCarrierPacketProbe::SatPhyRxCarrierPacketProbe ( )

Default constructor.

Definition at line 68 of file satellite-phy-rx-carrier-packet-probe.cc.

◆ ~SatPhyRxCarrierPacketProbe()

ns3::SatPhyRxCarrierPacketProbe::~SatPhyRxCarrierPacketProbe ( )

virtual

Destructor for SatPhyRxCarrierPacketProbe.

Definition at line 73 of file satellite-phy-rx-carrier-packet-probe.cc.

Member Function Documentation

◆ ConnectByObject()

bool ns3::SatPhyRxCarrierPacketProbe::ConnectByObject	(	std::string	traceSource,
		Ptr< Object >	obj
	)

virtual

connect to a trace source attribute provided by a given object

Parameters

traceSource	the name of the attribute TraceSource to connect to
obj	ns3::Object to connect to

Returns: true if the trace source was successfully connected

Definition at line 103 of file satellite-phy-rx-carrier-packet-probe.cc.

References TraceSink().

Here is the call graph for this function:

◆ ConnectByPath()

void ns3::SatPhyRxCarrierPacketProbe::ConnectByPath ( std::string path )

virtual

connect to a trace source provided by a config path

Parameters

path	Config path to bind to

Note, if an invalid path is provided, the probe will not be connected to anything.

Definition at line 114 of file satellite-phy-rx-carrier-packet-probe.cc.

References TraceSink().

Here is the call graph for this function:

◆ GetTypeId()

TypeId ns3::SatPhyRxCarrierPacketProbe::GetTypeId ( void )

static

Get the type ID.

Returns: the object TypeId

Definition at line 45 of file satellite-phy-rx-carrier-packet-probe.cc.

References m_output, m_outputBool, and m_outputUinteger.

◆ SetValue()

void ns3::SatPhyRxCarrierPacketProbe::SetValue	(	uint32_t	nPackets,
		const Address &	address,
		bool	statusFlag
	)

Set a probe value.

Parameters

nPackets	set the traced number of packets in the packet burst equal to this
address	set the socket address for the traced packet burst equal to this
statusFlag	set the traced packet burst status flag equal to this

Definition at line 79 of file satellite-phy-rx-carrier-packet-probe.cc.

References m_address, m_nPackets, m_output, m_outputBool, m_outputUinteger, and m_statusFlag.

◆ SetValueByPath()

void ns3::SatPhyRxCarrierPacketProbe::SetValueByPath	(	std::string	path,
		uint32_t	nPackets,
		const Address &	address,
		bool	statusFlag
	)

static

Set a probe value by its name in the Config system.

Parameters

path	config path to access the probe
nPackets	set the traced number of packets in the packet burst equal to this
address	set the socket address for the traced packet burst equal to this
statusFlag	set the traced packet burst status flag equal to this

Definition at line 91 of file satellite-phy-rx-carrier-packet-probe.cc.

◆ TraceSink()

void ns3::SatPhyRxCarrierPacketProbe::TraceSink	(	uint32_t	nPackets,
		const Address &	address,
		bool	statusFlag
	)

private

Method to connect to an underlying ns3::TraceSource with arguments of type double and const Address&.

Parameters

nPackets	the traced number of packets in the packet burst
address	the socket address for the traced packet burst
statusFlag	the traced packet burst status flag

Definition at line 123 of file satellite-phy-rx-carrier-packet-probe.cc.

References m_address, m_nPackets, m_output, m_outputBool, m_outputUinteger, and m_statusFlag.

Referenced by ConnectByObject(), and ConnectByPath().

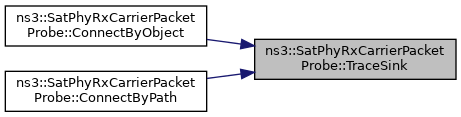

Here is the caller graph for this function:
