ns3::SatLinkResultsLora Class Reference

Link results for F-SIM. More...

#include "satellite-link-results.h"

Inheritance diagram for ns3::SatLinkResultsLora:

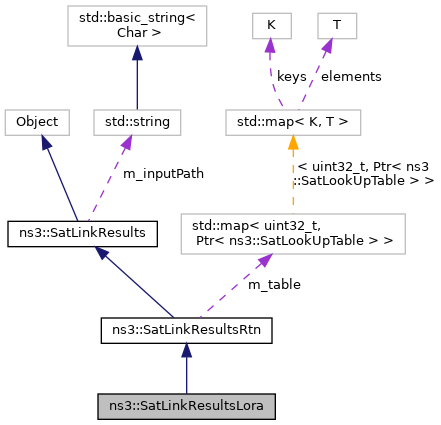

Collaboration diagram for ns3::SatLinkResultsLora:

Public Member Functions
	SatLinkResultsLora ()
	Default constructor. More...
	~SatLinkResultsLora ()
Ptr< SatMutualInformationTable >	GetMutualInformationTable () const
	Get the Mutual Information Table. More...
double	GetNormalizedSymbolInformation (double snirDb) const
	Get the Normalized Symbol Information corresponding to a given SNIR. More...
double	GetSnirDb (double symbolInformationTarget) const
	Get the SNIR in dB for a given Normalized Symbol Information target. More...
Public Member Functions inherited from ns3::SatLinkResultsRtn
	SatLinkResultsRtn ()
	Default constructor. More...
	~SatLinkResultsRtn ()
double	GetBler (uint32_t waveformId, double ebNoDb) const
	Get a BLER value from link results. More...
double	GetEbNoDb (uint32_t waveformId, double blerTarget) const
	Get a Eb/No requirement for a given BLER target from link results. More...
Public Member Functions inherited from ns3::SatLinkResults
	SatLinkResults ()
	Default constructor. More...
void	Initialize ()
	Initialize look up tables. More...

Static Public Member Functions
static TypeId	GetTypeId ()
	Get the type ID. More...
Static Public Member Functions inherited from ns3::SatLinkResultsRtn
static TypeId	GetTypeId ()
	Get the type ID. More...
Static Public Member Functions inherited from ns3::SatLinkResults
static TypeId	GetTypeId ()
	Get the type ID. More...

Protected Member Functions
void	DoInitialize ()
	Initialize by loading F-SIM look up tables. More...

Private Attributes
Ptr< SatMutualInformationTable >	m_mutualInformationTable
	Mutual information table. More...

Additional Inherited Members
Protected Attributes inherited from ns3::SatLinkResultsRtn
std::map< uint32_t, Ptr< SatLookUpTable > >	m_table
	Map of satellite link result look up tables. More...
Protected Attributes inherited from ns3::SatLinkResults
std::string	m_inputPath
	The base path where the text files containing link results data can be found. More...
bool	m_isInitialized
	Indicates if SatLinkResults::Initialize has been called. More...

Detailed Description

Link results for F-SIM.

Loads and maintains multiple SatLookUpTable. Provides query service based on waveform id. Loads and maintains a Mutual Information table.

See usage examples in the parent class documentation (SatLinkResults).

Definition at line 283 of file satellite-link-results.h.

Constructor & Destructor Documentation

SatLinkResultsLora()

ns3::SatLinkResultsLora::SatLinkResultsLora

(

)

Default constructor.

Definition at line 188 of file satellite-link-results.cc.

~SatLinkResultsLora()

ns3::SatLinkResultsLora::~SatLinkResultsLora ( )

inline

Definition at line 291 of file satellite-link-results.h.

Member Function Documentation

DoInitialize()

void ns3::SatLinkResultsLora::DoInitialize ( void  )

protectedvirtual

Initialize by loading F-SIM look up tables.

Implements ns3::SatLinkResultsRtn.

Definition at line 201 of file satellite-link-results.cc.

References ns3::SatLinkResults::m_inputPath, m_mutualInformationTable, and ns3::SatLinkResultsRtn::m_table.

GetMutualInformationTable()

Ptr<SatMutualInformationTable> ns3::SatLinkResultsLora::GetMutualInformationTable ( ) const

inline

Get the Mutual Information Table.

Definition at line 324 of file satellite-link-results.h.

References m_mutualInformationTable.

GetNormalizedSymbolInformation()

double ns3::SatLinkResultsLora::GetNormalizedSymbolInformation ( double  snirDb ) const

inline

Get the Normalized Symbol Information corresponding to a given SNIR.

Parameters

snirDb

SNIR in logarithmic scale

Returns

Normalized Symbol Information

Definition at line 306 of file satellite-link-results.h.

References m_mutualInformationTable.

GetSnirDb()

double ns3::SatLinkResultsLora::GetSnirDb ( double  symbolInformationTarget ) const

inline

Get the SNIR in dB for a given Normalized Symbol Information target.

Parameters

Normalizd

Symbol Information target (0-1)

Returns

Snir target in dB

Definition at line 316 of file satellite-link-results.h.

References m_mutualInformationTable.

GetTypeId()

TypeId ns3::SatLinkResultsLora::GetTypeId ( void  )

static

Get the type ID.

Returns

the object TypeId

Definition at line 194 of file satellite-link-results.cc.

Member Data Documentation

m_mutualInformationTable

Ptr<SatMutualInformationTable> ns3::SatLinkResultsLora::m_mutualInformationTable

private

Mutual information table.

Definition at line 339 of file satellite-link-results.h.

Referenced by DoInitialize(), GetMutualInformationTable(), GetNormalizedSymbolInformation(), and GetSnirDb().

---

The documentation for this class was generated from the following files:

• /builds/sns3/satellite/satellite/model/satellite-link-results.h
• /builds/sns3/satellite/satellite/model/satellite-link-results.cc
