ns3::SatLookUpTable Class Reference

Loads a link result file and provide query service for BLER. More...

#include "satellite-look-up-table.h"

Inheritance diagram for ns3::SatLookUpTable:

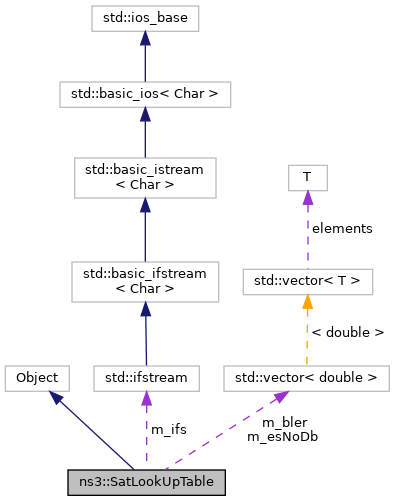

Collaboration diagram for ns3::SatLookUpTable:

Public Member Functions
	SatLookUpTable (std::string linkResultPath)
	Constructor with initialization parameters. More...
virtual	~SatLookUpTable ()
	Destructor for SatLookUpTable. More...
double	GetBler (double sinrDb) const
	Get the BLER corresponding to a given SINR. More...
double	GetEsNoDb (double blerTarget) const
	Get Es/No in dB for a given BLER target. More...

Static Public Member Functions
static TypeId	GetTypeId ()
	Get the type ID. More...

Private Member Functions
virtual void	DoDispose ()
void	Load (std::string linkResultPath)
	Load the link results. More...

Private Attributes
std::vector< double >	m_bler
std::vector< double >	m_esNoDb
std::ifstream *	m_ifs

Detailed Description

Loads a link result file and provide query service for BLER.

Definition at line 38 of file satellite-look-up-table.h.

Constructor & Destructor Documentation

SatLookUpTable()

ns3::SatLookUpTable::SatLookUpTable

(

std::string

linkResultPath

)

Constructor with initialization parameters.

Parameters

linkResultPath

Definition at line 38 of file satellite-look-up-table.cc.

References Load().

Here is the call graph for this function:

~SatLookUpTable()

ns3::SatLookUpTable::~SatLookUpTable ( )

virtual

Destructor for SatLookUpTable.

Definition at line 44 of file satellite-look-up-table.cc.

Member Function Documentation

DoDispose()

void ns3::SatLookUpTable::DoDispose ( void  )

privatevirtual

Definition at line 50 of file satellite-look-up-table.cc.

References m_bler, m_esNoDb, and m_ifs.

GetBler()

double ns3::SatLookUpTable::GetBler

(

double

sinrDb

)

const

Get the BLER corresponding to a given SINR.

Parameters

sinrDb

SINR in logarithmic scale

Returns

BLER

Definition at line 79 of file satellite-look-up-table.cc.

References ns3::SatUtils::Interpolate(), m_bler, and m_esNoDb.

Here is the call graph for this function:

GetEsNoDb()

double ns3::SatLookUpTable::GetEsNoDb

(

double

blerTarget

)

const

Get Es/No in dB for a given BLER target.

Parameters

blerTarget

BLER target (0-1)

Returns

Es/No target in dB

Definition at line 138 of file satellite-look-up-table.cc.

References ns3::SatUtils::Interpolate(), m_bler, and m_esNoDb.

Here is the call graph for this function:

GetTypeId()

TypeId ns3::SatLookUpTable::GetTypeId ( void  )

static

Get the type ID.

Returns

the object TypeId

Definition at line 72 of file satellite-look-up-table.cc.

Load()

void ns3::SatLookUpTable::Load ( std::string  linkResultPath )

private

Load the link results.

Parameters

linkResultsPath

Path to a link results file.

Definition at line 184 of file satellite-look-up-table.cc.

References m_bler, m_esNoDb, and m_ifs.

Referenced by SatLookUpTable().

Here is the caller graph for this function:

Member Data Documentation

m_bler

std::vector<double> ns3::SatLookUpTable::m_bler

private

Definition at line 82 of file satellite-look-up-table.h.

Referenced by DoDispose(), GetBler(), GetEsNoDb(), and Load().

m_esNoDb

std::vector<double> ns3::SatLookUpTable::m_esNoDb

private

Definition at line 81 of file satellite-look-up-table.h.

Referenced by DoDispose(), GetBler(), GetEsNoDb(), and Load().

m_ifs

std::ifstream* ns3::SatLookUpTable::m_ifs

private

Definition at line 83 of file satellite-look-up-table.h.

Referenced by DoDispose(), and Load().

---

The documentation for this class was generated from the following files:

• /builds/sns3/satellite/satellite/model/satellite-look-up-table.h
• /builds/sns3/satellite/satellite/model/satellite-look-up-table.cc
