This helper allows to set customs C/N0 values for some GW or UT nodes. More...

#include "satellite-cno-helper.h"

Inheritance diagram for ns3::SatCnoHelper:

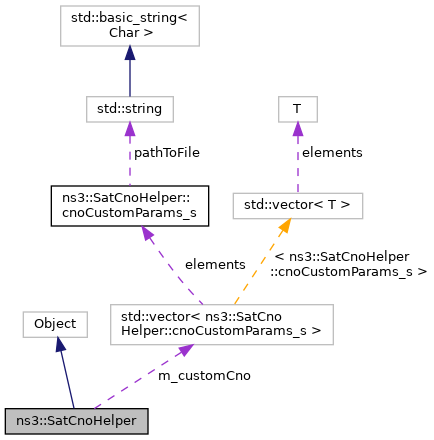

Collaboration diagram for ns3::SatCnoHelper:

Classes
struct	cnoCustomParams_s
	Struct for storing the custom C/N0 for some nodes. More...

Public Member Functions
	SatCnoHelper ()
	Default constructor. More...

	SatCnoHelper (Ptr< SatHelper > satHelper)
	Create a base SatCnoHelper. More...

virtual	~SatCnoHelper ()
	Destructor for SatCnoHelper. More...

TypeId	GetInstanceTypeId (void) const
	Get the type ID of object instance. More...

void	SetGwNodeCno (NodeContainer nodes, SatEnums::ChannelType_t channel, double cno)
	Set a constant C/N0 for one GW node and one channel direction. More...

void	SetGwNodeCno (Ptr< Node > node, SatEnums::ChannelType_t channel, double cno)
	Set a constant C/N0 for one GW node and one channel direction. More...

void	SetGwNodeCno (uint32_t nodeId, SatEnums::ChannelType_t channel, double cno)
	Set a constant C/N0 for one GW node and one channel direction. More...

void	SetGwNodeCnoFile (Ptr< Node > node, SatEnums::ChannelType_t channel, std::string path)
	Set a constant C/N0 for one GW node and one channel direction. More...

void	SetGwNodeCnoFile (uint32_t nodeId, SatEnums::ChannelType_t channel, std::string path)
	Set a constant C/N0 for one GW node and one channel direction. More...

void	SetUtNodeCno (NodeContainer nodes, SatEnums::ChannelType_t channel, double cno)
	Set a constant C/N0 for one UT node and one channel direction. More...

void	SetUtNodeCno (Ptr< Node > node, SatEnums::ChannelType_t channel, double cno)
	Set a constant C/N0 for one UT node and one channel direction. More...

void	SetUtNodeCno (uint32_t nodeId, SatEnums::ChannelType_t channel, double cno)
	Set a constant C/N0 for one UT node and one channel direction. More...

void	SetUtNodeCnoFile (Ptr< Node > node, SatEnums::ChannelType_t channel, std::string path)
	Set a constant C/N0 for one UT node and one channel direction. More...

void	SetUtNodeCnoFile (uint32_t nodeId, SatEnums::ChannelType_t channel, std::string path)
	Set a constant C/N0 for one UT node and one channel direction. More...

void	UseTracesForDefault (bool useTraces)
	Set m_useTraces attribute. More...

Static Public Member Functions
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Member Functions
void	ApplyConfiguration ()
	Apply configuration to all the satellite channels Needs to be done after node creation. More...

bool	CheckDuplicate (Ptr< Node > node, SatEnums::ChannelType_t channel)
	Verify if a node has already been set. More...

Private Attributes
std::vector< cnoCustomParams_s >	m_customCno
	Array storing manual C/N0 updates (constant or custom file) More...

Ptr< SatHelper >	m_satHelper
	Pointer to the SatHelper objet. More...

bool	m_useTraces
	Use C/N0 input traces instead of power calculation from antenna gain. More...

Detailed Description

This helper allows to set customs C/N0 values for some GW or UT nodes.

For each node, the C/N0 value can be constant over time, or follow a trace file giving the temporal evolution of this parameter.

Definition at line 38 of file satellite-cno-helper.h.

Constructor & Destructor Documentation

◆ SatCnoHelper() [1/2]

ns3::SatCnoHelper::SatCnoHelper ( )

Default constructor.

Definition at line 53 of file satellite-cno-helper.cc.

References ns3::SatEnums::RX_CNO_INPUT_TRACE.

◆ SatCnoHelper() [2/2]

ns3::SatCnoHelper::SatCnoHelper ( Ptr< SatHelper > satHelper )

Create a base SatCnoHelper.

Parameters

satHelper The satellite Helper

Definition at line 61 of file satellite-cno-helper.cc.

References ns3::SatEnums::RX_CNO_INPUT_TRACE.

◆ ~SatCnoHelper()

virtual ns3::SatCnoHelper::~SatCnoHelper ( )

inlinevirtual

Destructor for SatCnoHelper.

Definition at line 80 of file satellite-cno-helper.h.

Member Function Documentation

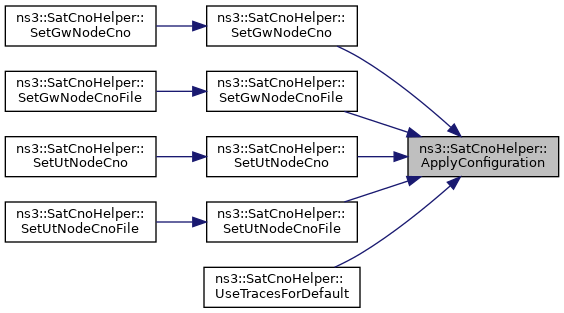

◆ ApplyConfiguration()

void ns3::SatCnoHelper::ApplyConfiguration ( )

private

Apply configuration to all the satellite channels Needs to be done after node creation.

Definition at line 207 of file satellite-cno-helper.cc.

References ns3::SatEnums::FORWARD_FEEDER_CH, ns3::SatEnums::FORWARD_USER_CH, m_customCno, m_satHelper, m_useTraces, ns3::SatEnums::RETURN_FEEDER_CH, and ns3::SatEnums::RETURN_USER_CH.

Referenced by SetGwNodeCno(), SetGwNodeCnoFile(), SetUtNodeCno(), SetUtNodeCnoFile(), and UseTracesForDefault().

Here is the caller graph for this function:

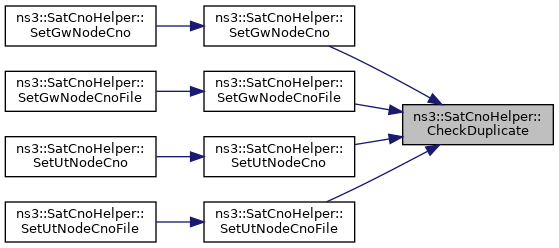

◆ CheckDuplicate()

bool ns3::SatCnoHelper::CheckDuplicate	(	Ptr< Node >	node,
		SatEnums::ChannelType_t	channel
	)

private

Verify if a node has already been set.

Parameters

node	The node to verify

Returns: true if the node is aleady stored in m_customCno

Definition at line 293 of file satellite-cno-helper.cc.

References m_customCno.

Referenced by SetGwNodeCno(), SetGwNodeCnoFile(), SetUtNodeCno(), and SetUtNodeCnoFile().

Here is the caller graph for this function:

◆ GetInstanceTypeId()

TypeId ns3::SatCnoHelper::GetInstanceTypeId ( void ) const

Get the type ID of object instance.

Returns: the TypeId of object instance

Definition at line 46 of file satellite-cno-helper.cc.

References GetTypeId().

Here is the call graph for this function:

◆ GetTypeId()

TypeId ns3::SatCnoHelper::GetTypeId ( void )

static

Get the type ID.

Returns: the object TypeId

Definition at line 38 of file satellite-cno-helper.cc.

Referenced by GetInstanceTypeId().

Here is the caller graph for this function:

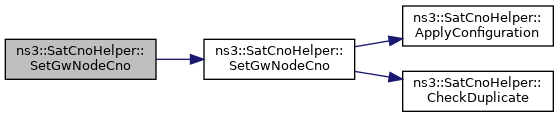

◆ SetGwNodeCno() [1/3]

void ns3::SatCnoHelper::SetGwNodeCno	(	NodeContainer	nodes,
		SatEnums::ChannelType_t	channel,
		double	cno
	)

Set a constant C/N0 for one GW node and one channel direction.

Parameters

nodes	The nodes to apply the new C/N0
channel	The channel type
cno	The constant C/N0 value to set

Definition at line 133 of file satellite-cno-helper.cc.

References SetGwNodeCno().

Here is the call graph for this function:

◆ SetGwNodeCno() [2/3]

void ns3::SatCnoHelper::SetGwNodeCno	(	Ptr< Node >	node,
		SatEnums::ChannelType_t	channel,
		double	cno
	)

Set a constant C/N0 for one GW node and one channel direction.

Parameters

node	The node to apply the new C/N0
channel	The channel type
cno	The constant C/N0 value to set

Definition at line 77 of file satellite-cno-helper.cc.

References ApplyConfiguration(), ns3::SatCnoHelper::cnoCustomParams_s::channelType, CheckDuplicate(), ns3::SatCnoHelper::cnoCustomParams_s::cno, ns3::SatCnoHelper::cnoCustomParams_s::constant, ns3::SatEnums::FORWARD_FEEDER_CH, ns3::SatCnoHelper::cnoCustomParams_s::isGw, m_customCno, ns3::SatCnoHelper::cnoCustomParams_s::node, and ns3::SatEnums::RETURN_FEEDER_CH.

Referenced by SetGwNodeCno().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetGwNodeCno() [3/3]

void ns3::SatCnoHelper::SetGwNodeCno	(	uint32_t	nodeId,
		SatEnums::ChannelType_t	channel,
		double	cno
	)

Set a constant C/N0 for one GW node and one channel direction.

Parameters

nodeId	The ID of the node to apply the new C/N0
channel	The channel type
cno	The constant C/N0 value to set

Definition at line 121 of file satellite-cno-helper.cc.

References m_satHelper, and SetGwNodeCno().

Here is the call graph for this function:

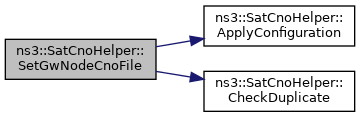

◆ SetGwNodeCnoFile() [1/2]

void ns3::SatCnoHelper::SetGwNodeCnoFile	(	Ptr< Node >	node,
		SatEnums::ChannelType_t	channel,
		std::string	path
	)

Set a constant C/N0 for one GW node and one channel direction.

Parameters

node	The node to apply the new C/N0
channel	The channel type
path	The path to the file to read

Definition at line 151 of file satellite-cno-helper.cc.

References ApplyConfiguration(), ns3::SatCnoHelper::cnoCustomParams_s::channelType, CheckDuplicate(), ns3::SatCnoHelper::cnoCustomParams_s::constant, ns3::SatEnums::FORWARD_FEEDER_CH, ns3::SatCnoHelper::cnoCustomParams_s::isGw, m_customCno, ns3::SatCnoHelper::cnoCustomParams_s::node, ns3::SatCnoHelper::cnoCustomParams_s::pathToFile, and ns3::SatEnums::RETURN_FEEDER_CH.

Referenced by SetGwNodeCnoFile().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetGwNodeCnoFile() [2/2]

void ns3::SatCnoHelper::SetGwNodeCnoFile	(	uint32_t	nodeId,
		SatEnums::ChannelType_t	channel,
		std::string	path
	)

Set a constant C/N0 for one GW node and one channel direction.

Parameters

nodeId	The ID of the node to apply the new C/N0
channel	The channel type
path	The path to the file to read

Definition at line 195 of file satellite-cno-helper.cc.

References m_satHelper, and SetGwNodeCnoFile().

Here is the call graph for this function:

◆ SetUtNodeCno() [1/3]

void ns3::SatCnoHelper::SetUtNodeCno	(	NodeContainer	nodes,
		SatEnums::ChannelType_t	channel,
		double	cno
	)

Set a constant C/N0 for one UT node and one channel direction.

Parameters

nodes	The nodes to apply the new C/N0
channel	The channel type
cno	The constant C/N0 value to set

Definition at line 142 of file satellite-cno-helper.cc.

References SetUtNodeCno().

Here is the call graph for this function:

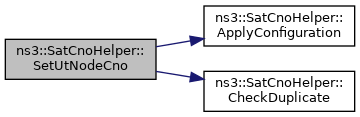

◆ SetUtNodeCno() [2/3]

void ns3::SatCnoHelper::SetUtNodeCno	(	Ptr< Node >	node,
		SatEnums::ChannelType_t	channel,
		double	cno
	)

Set a constant C/N0 for one UT node and one channel direction.

Parameters

node	The node to apply the new C/N0
channel	The channel type
cno	The constant C/N0 value to set

Definition at line 99 of file satellite-cno-helper.cc.

References ApplyConfiguration(), ns3::SatCnoHelper::cnoCustomParams_s::channelType, CheckDuplicate(), ns3::SatCnoHelper::cnoCustomParams_s::cno, ns3::SatCnoHelper::cnoCustomParams_s::constant, ns3::SatEnums::FORWARD_USER_CH, ns3::SatCnoHelper::cnoCustomParams_s::isGw, m_customCno, ns3::SatCnoHelper::cnoCustomParams_s::node, and ns3::SatEnums::RETURN_USER_CH.

Referenced by SetUtNodeCno().

Here is the call graph for this function:

Here is the caller graph for this function:

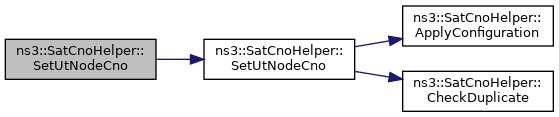

◆ SetUtNodeCno() [3/3]

void ns3::SatCnoHelper::SetUtNodeCno	(	uint32_t	nodeId,
		SatEnums::ChannelType_t	channel,
		double	cno
	)

Set a constant C/N0 for one UT node and one channel direction.

Parameters

nodeId	The ID of the node to apply the new C/N0
channel	The channel type
cno	The constant C/N0 value to set

Definition at line 127 of file satellite-cno-helper.cc.

References m_satHelper, and SetUtNodeCno().

Here is the call graph for this function:

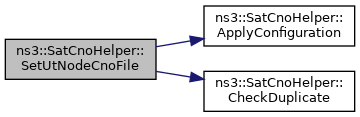

◆ SetUtNodeCnoFile() [1/2]

void ns3::SatCnoHelper::SetUtNodeCnoFile	(	Ptr< Node >	node,
		SatEnums::ChannelType_t	channel,
		std::string	path
	)

Set a constant C/N0 for one UT node and one channel direction.

Parameters

node	The node to apply the new C/N0
channel	The channel type
path	The path to the file to read

Definition at line 173 of file satellite-cno-helper.cc.

References ApplyConfiguration(), ns3::SatCnoHelper::cnoCustomParams_s::channelType, CheckDuplicate(), ns3::SatCnoHelper::cnoCustomParams_s::constant, ns3::SatEnums::FORWARD_USER_CH, ns3::SatCnoHelper::cnoCustomParams_s::isGw, m_customCno, ns3::SatCnoHelper::cnoCustomParams_s::node, ns3::SatCnoHelper::cnoCustomParams_s::pathToFile, and ns3::SatEnums::RETURN_USER_CH.

Referenced by SetUtNodeCnoFile().

Here is the call graph for this function:

Here is the caller graph for this function:

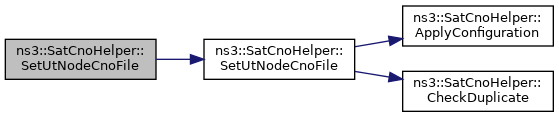

◆ SetUtNodeCnoFile() [2/2]

void ns3::SatCnoHelper::SetUtNodeCnoFile	(	uint32_t	nodeId,
		SatEnums::ChannelType_t	channel,
		std::string	path
	)

Set a constant C/N0 for one UT node and one channel direction.

Parameters

nodeId	The ID of the node to apply the new C/N0
channel	The channel type
path	The path to the file to read

Definition at line 201 of file satellite-cno-helper.cc.

References m_satHelper, and SetUtNodeCnoFile().

Here is the call graph for this function:

◆ UseTracesForDefault()

void ns3::SatCnoHelper::UseTracesForDefault ( bool useTraces )

Set m_useTraces attribute.

Definition at line 70 of file satellite-cno-helper.cc.

References ApplyConfiguration(), and m_useTraces.

Here is the call graph for this function:

Member Data Documentation

◆ m_customCno

std::vector<cnoCustomParams_s> ns3::SatCnoHelper::m_customCno

private

Array storing manual C/N0 updates (constant or custom file)

Definition at line 184 of file satellite-cno-helper.h.

Referenced by ApplyConfiguration(), CheckDuplicate(), SetGwNodeCno(), SetGwNodeCnoFile(), SetUtNodeCno(), and SetUtNodeCnoFile().

◆ m_satHelper

Ptr<SatHelper> ns3::SatCnoHelper::m_satHelper

private

Pointer to the SatHelper objet.

Definition at line 174 of file satellite-cno-helper.h.

Referenced by ApplyConfiguration(), SetGwNodeCno(), SetGwNodeCnoFile(), SetUtNodeCno(), and SetUtNodeCnoFile().

◆ m_useTraces

bool ns3::SatCnoHelper::m_useTraces

private

Use C/N0 input traces instead of power calculation from antenna gain.

Definition at line 179 of file satellite-cno-helper.h.

Referenced by ApplyConfiguration(), and UseTracesForDefault().

The documentation for this class was generated from the following files:

/builds/sns3/satellite/satellite/helper/satellite-cno-helper.h
/builds/sns3/satellite/satellite/helper/satellite-cno-helper.cc

Classes

Public Member Functions

Static Public Member Functions

Private Member Functions

Private Attributes

Detailed Description

Constructor & Destructor Documentation

◆ SatCnoHelper() [1/2]

◆ SatCnoHelper() [2/2]

◆ ~SatCnoHelper()

Member Function Documentation

◆ ApplyConfiguration()

◆ CheckDuplicate()

◆ GetInstanceTypeId()

◆ GetTypeId()

◆ SetGwNodeCno() [1/3]

◆ SetGwNodeCno() [2/3]

◆ SetGwNodeCno() [3/3]

◆ SetGwNodeCnoFile() [1/2]

◆ SetGwNodeCnoFile() [2/2]

◆ SetUtNodeCno() [1/3]

◆ SetUtNodeCno() [2/3]

◆ SetUtNodeCno() [3/3]

◆ SetUtNodeCnoFile() [1/2]

◆ SetUtNodeCnoFile() [2/2]

◆ UseTracesForDefault()

Member Data Documentation

◆ m_customCno

◆ m_satHelper

◆ m_useTraces
