This class implements a tag that carries the satellite MAC specific information, such as source and destination MAC address. More...

#include "satellite-mac-tag.h"

Inheritance diagram for ns3::SatMacTag:

Collaboration diagram for ns3::SatMacTag:

Public Member Functions
	SatMacTag ()
	Default constructor. More...

	~SatMacTag ()
	Destructor for SatMacTag. More...

virtual void	Deserialize (TagBuffer i)
	Deserializes information from buffer to this instance of SatMacTag. More...

Mac48Address	GetDestAddress (void) const
	Get destination MAC address. More...

virtual TypeId	GetInstanceTypeId (void) const
	Get the type ID of instance. More...

virtual uint32_t	GetSerializedSize (void) const
	Get serialized size of SatMacTag. More...

Mac48Address	GetSourceAddress (void) const
	Get source MAC address. More...

virtual void	Print (std::ostream &os) const
	Print time stamp of this instance of SatMacTag. More...

virtual void	Serialize (TagBuffer i) const
	Serializes information to buffer from this instance of SatMacTag. More...

void	SetDestAddress (Mac48Address dest)
	Set destination MAC address. More...

void	SetSourceAddress (Mac48Address source)
	Set source MAC address. More...

Static Public Member Functions
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Attributes
Mac48Address	m_destAddress

Mac48Address	m_sourceAddress

Static Private Attributes
static const uint32_t	ADDRESS_LENGHT = 6

Detailed Description

This class implements a tag that carries the satellite MAC specific information, such as source and destination MAC address.

Definition at line 39 of file satellite-mac-tag.h.

Constructor & Destructor Documentation

◆ SatMacTag()

ns3::SatMacTag::SatMacTag ( )

Default constructor.

Definition at line 35 of file satellite-mac-tag.cc.

◆ ~SatMacTag()

ns3::SatMacTag::~SatMacTag ( )

Destructor for SatMacTag.

Definition at line 40 of file satellite-mac-tag.cc.

Member Function Documentation

◆ Deserialize()

void ns3::SatMacTag::Deserialize ( TagBuffer i )

virtual

Deserializes information from buffer to this instance of SatMacTag.

Parameters

i	Buffer from which the information is deserialized

Definition at line 111 of file satellite-mac-tag.cc.

References ADDRESS_LENGHT, m_destAddress, and m_sourceAddress.

◆ GetDestAddress()

Mac48Address ns3::SatMacTag::GetDestAddress ( void ) const

Get destination MAC address.

Returns: Destination MAC address

Definition at line 68 of file satellite-mac-tag.cc.

References m_destAddress.

Referenced by ns3::SatUtils::GetPacketInfo(), ns3::SatPhyRxCarrier::GetReceiveParams(), PrintBbFrameInfo(), ns3::SatOrbiterFeederMac::Receive(), ns3::SatOrbiterUserMac::Receive(), ns3::SatGwMac::Receive(), ns3::SatUtMac::Receive(), ns3::SatGenericStreamEncapsulatorArq::ReceivePdu(), ns3::SatGenericStreamEncapsulator::ReceivePdu(), ns3::SatReturnLinkEncapsulatorArq::ReceivePdu(), ns3::SatReturnLinkEncapsulator::ReceivePdu(), ns3::SatUtMac::ReceiveSignalingPacket(), ns3::SatGwMac::ReceiveSignalingPacket(), ns3::SatMac::RxTraces(), ns3::SatOrbiterMac::RxTraces(), and ns3::SatChannel::StartTx().

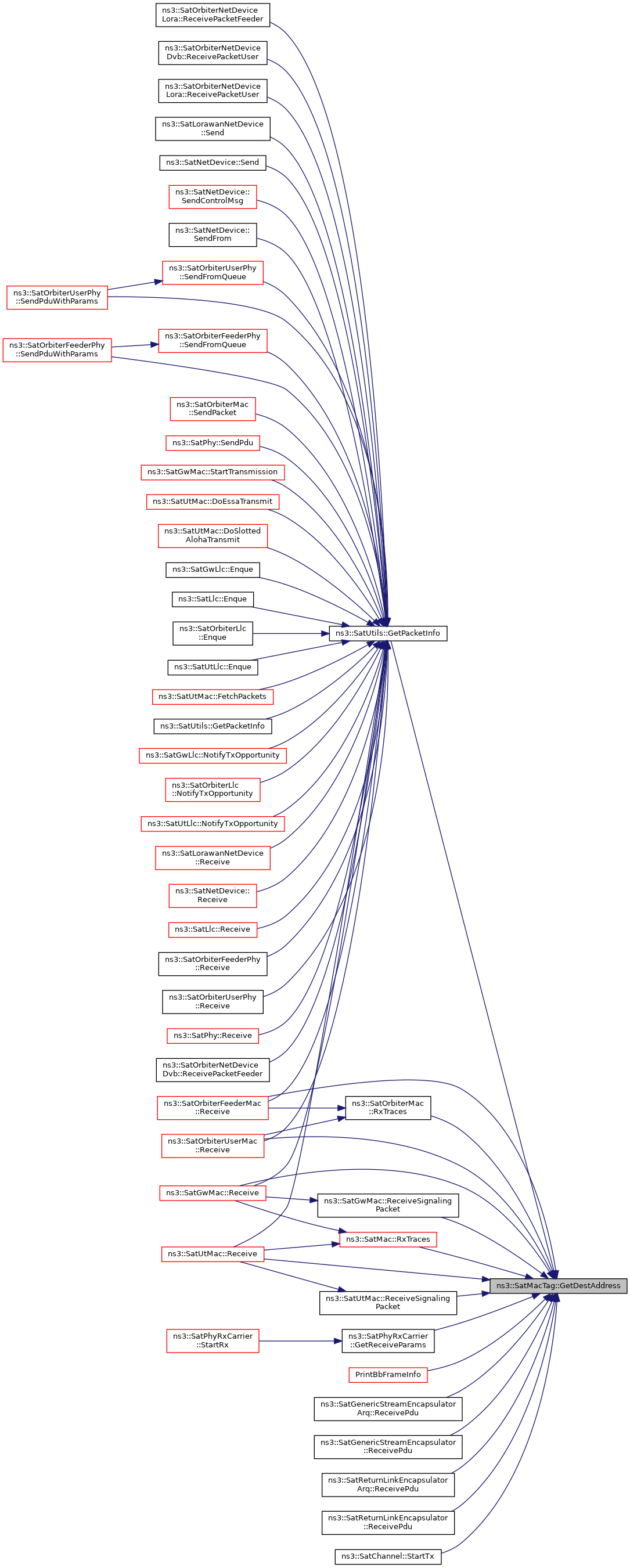

Here is the caller graph for this function:

◆ GetInstanceTypeId()

TypeId ns3::SatMacTag::GetInstanceTypeId ( void ) const

virtual

Get the type ID of instance.

Returns: the object TypeId

Definition at line 53 of file satellite-mac-tag.cc.

References GetTypeId().

Here is the call graph for this function:

◆ GetSerializedSize()

uint32_t ns3::SatMacTag::GetSerializedSize ( void ) const

virtual

Get serialized size of SatMacTag.

Returns: Serialized size in bytes

Definition at line 89 of file satellite-mac-tag.cc.

References ADDRESS_LENGHT.

◆ GetSourceAddress()

Mac48Address ns3::SatMacTag::GetSourceAddress ( void ) const

Get source MAC address.

Returns: Source MAC address

Definition at line 82 of file satellite-mac-tag.cc.

References m_sourceAddress.

Referenced by ns3::SatUtils::GetPacketInfo(), ns3::SatPhyRxCarrier::GetReceiveParams(), ns3::SatChannel::GetSourceAddress(), ns3::SatOrbiterFeederMac::Receive(), ns3::SatOrbiterUserMac::Receive(), ns3::SatGwMac::Receive(), ns3::SatUtMac::Receive(), ns3::SatOrbiterFeederMac::ReceiveSignalingPacket(), ns3::SatOrbiterUserMac::ReceiveSignalingPacket(), and ns3::SatPhyRxCarrierPerSlot::ReceiveSlot().

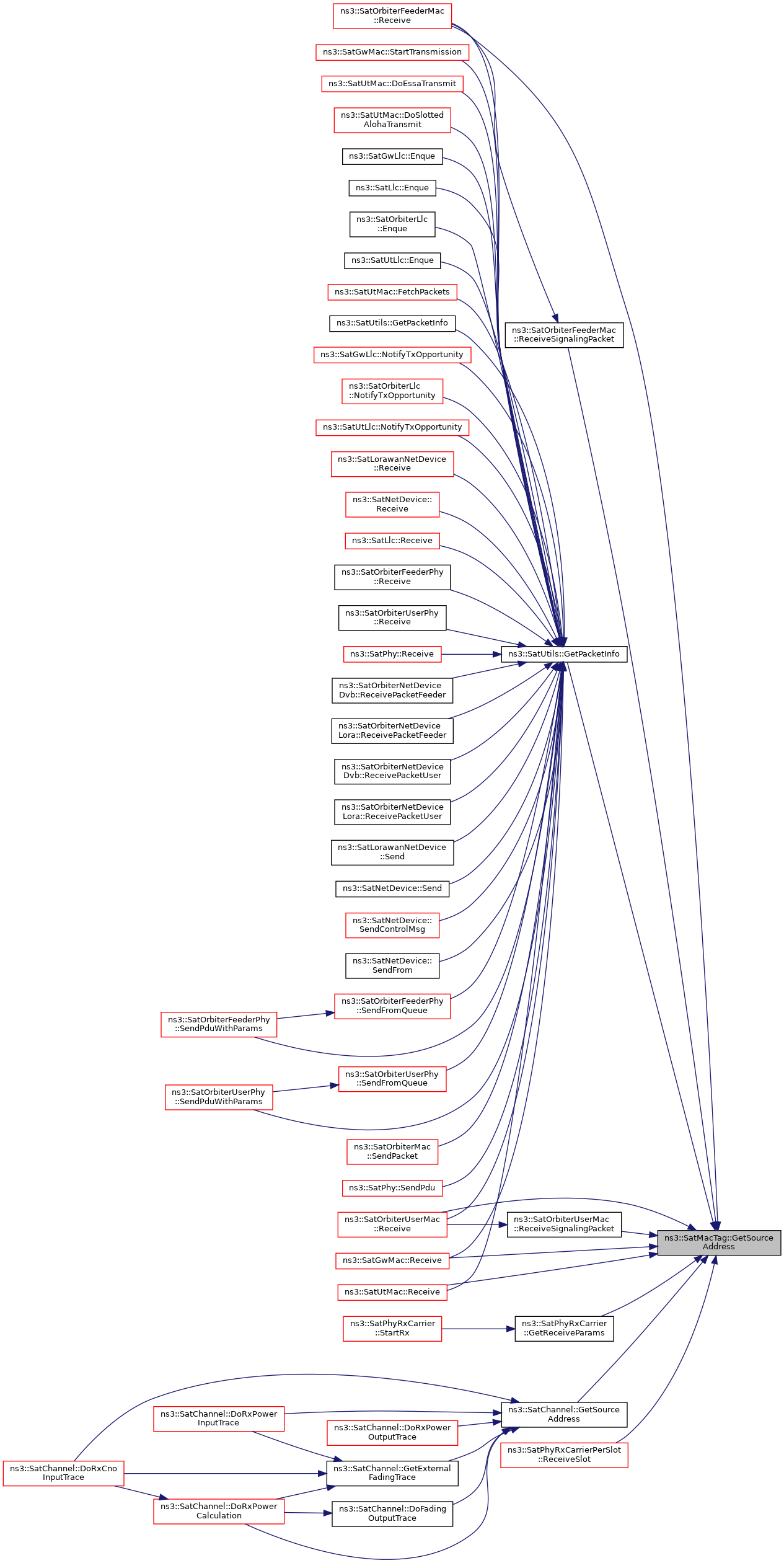

Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::SatMacTag::GetTypeId ( void )

static

Get the type ID.

Returns: the object TypeId

Definition at line 46 of file satellite-mac-tag.cc.

Referenced by GetInstanceTypeId().

Here is the caller graph for this function:

◆ Print()

void ns3::SatMacTag::Print ( std::ostream & os ) const

virtual

Print time stamp of this instance of SatMacTag.

Parameters

&os	Output stream to which tag timestamp is printed.

Definition at line 125 of file satellite-mac-tag.cc.

References m_destAddress, and m_sourceAddress.

◆ Serialize()

void ns3::SatMacTag::Serialize ( TagBuffer i ) const

virtual

Serializes information to buffer from this instance of SatMacTag.

Parameters

i	Buffer in which the information is serialized

Definition at line 97 of file satellite-mac-tag.cc.

References ADDRESS_LENGHT, m_destAddress, and m_sourceAddress.

◆ SetDestAddress()

void ns3::SatMacTag::SetDestAddress ( Mac48Address dest )

Set destination MAC address.

Parameters

dest	Destination MAC address

Definition at line 61 of file satellite-mac-tag.cc.

References m_destAddress.

Referenced by ns3::SatUtMac::DoTransmit(), ns3::SatOrbiterFeederMac::EnquePacket(), ns3::SatOrbiterUserMac::EnquePacket(), ns3::SatBaseEncapsulator::EnquePdu(), ns3::SatReturnLinkEncapsulator::EnquePdu(), ns3::SatFwdLinkSchedulerDefault::GetNextFrame(), ns3::SatFwdLinkSchedulerTimeSlicing::GetNextFrame(), ns3::SatScpcScheduler::GetNextFrame(), ns3::SatGenericStreamEncapsulatorArq::NotifyTxOpportunity(), ns3::SatGenericStreamEncapsulator::NotifyTxOpportunity(), ns3::SatReturnLinkEncapsulatorArq::NotifyTxOpportunity(), ns3::SatReturnLinkEncapsulator::NotifyTxOpportunity(), ns3::LorawanMacEndDeviceClassA::Receive(), ns3::LorawanGroundMacGateway::Send(), ns3::LorawanOrbiterMacGateway::Send(), ns3::LorawanMacGateway::Send(), ns3::SatOrbiterNetDeviceDvb::SendControlMsgToFeeder(), ns3::SatMac::SendPacket(), and ns3::LorawanMacEndDeviceClassA::SendToPhy().

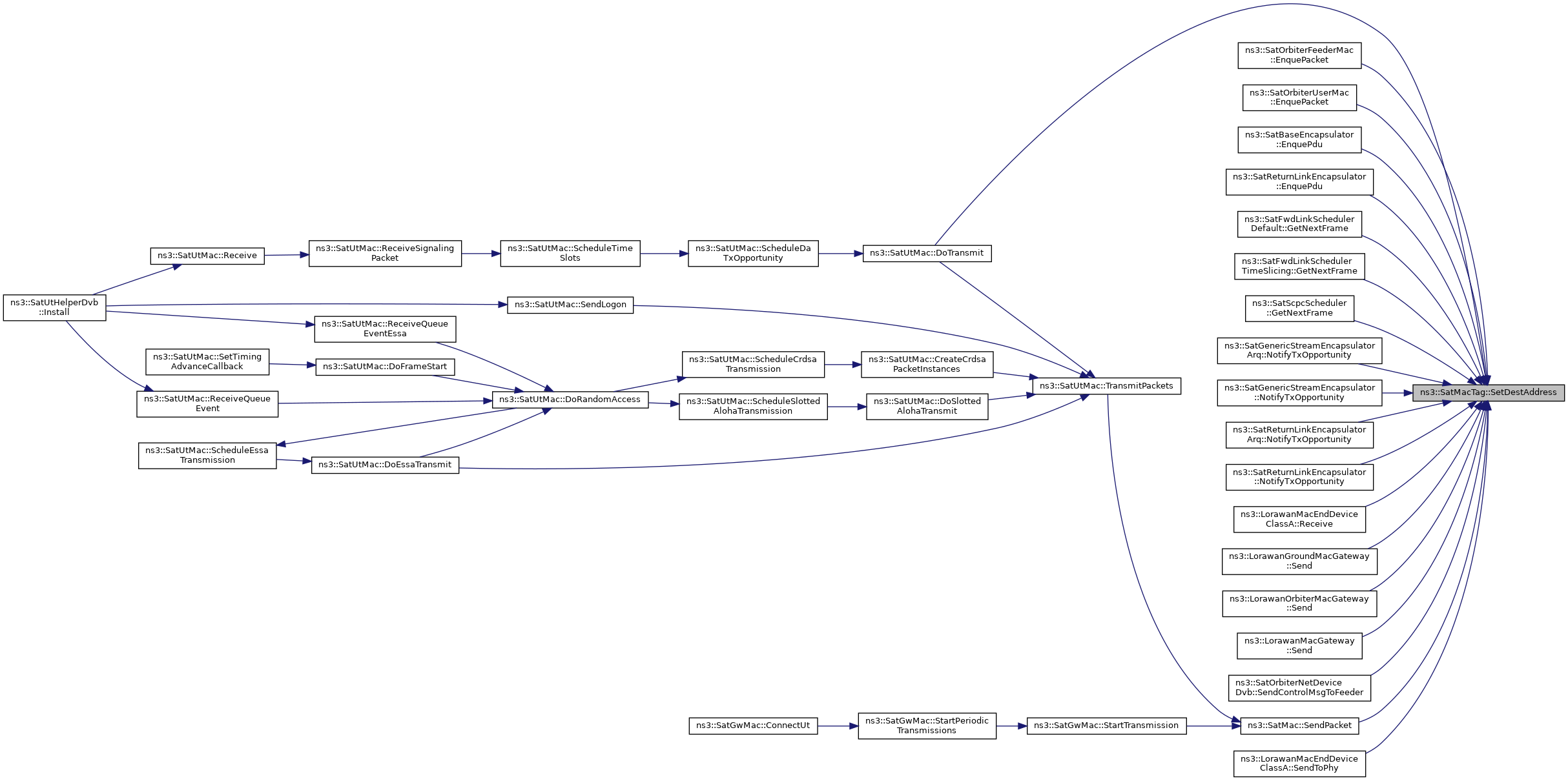

Here is the caller graph for this function:

◆ SetSourceAddress()

void ns3::SatMacTag::SetSourceAddress ( Mac48Address source )

Set source MAC address.

Parameters

source Source MAC address

Definition at line 75 of file satellite-mac-tag.cc.

References m_sourceAddress.

Referenced by ns3::SatUtMac::DoTransmit(), ns3::SatOrbiterFeederMac::EnquePacket(), ns3::SatOrbiterUserMac::EnquePacket(), ns3::SatBaseEncapsulator::EnquePdu(), ns3::SatReturnLinkEncapsulator::EnquePdu(), ns3::SatFwdLinkSchedulerDefault::GetNextFrame(), ns3::SatFwdLinkSchedulerTimeSlicing::GetNextFrame(), ns3::SatScpcScheduler::GetNextFrame(), ns3::SatGenericStreamEncapsulatorArq::NotifyTxOpportunity(), ns3::SatGenericStreamEncapsulator::NotifyTxOpportunity(), ns3::SatReturnLinkEncapsulatorArq::NotifyTxOpportunity(), ns3::SatReturnLinkEncapsulator::NotifyTxOpportunity(), ns3::LorawanGroundMacGateway::Send(), ns3::LorawanOrbiterMacGateway::Send(), ns3::LorawanMacGateway::Send(), ns3::SatOrbiterNetDeviceDvb::SendControlMsgToFeeder(), and ns3::LorawanMacEndDeviceClassA::SendToPhy().

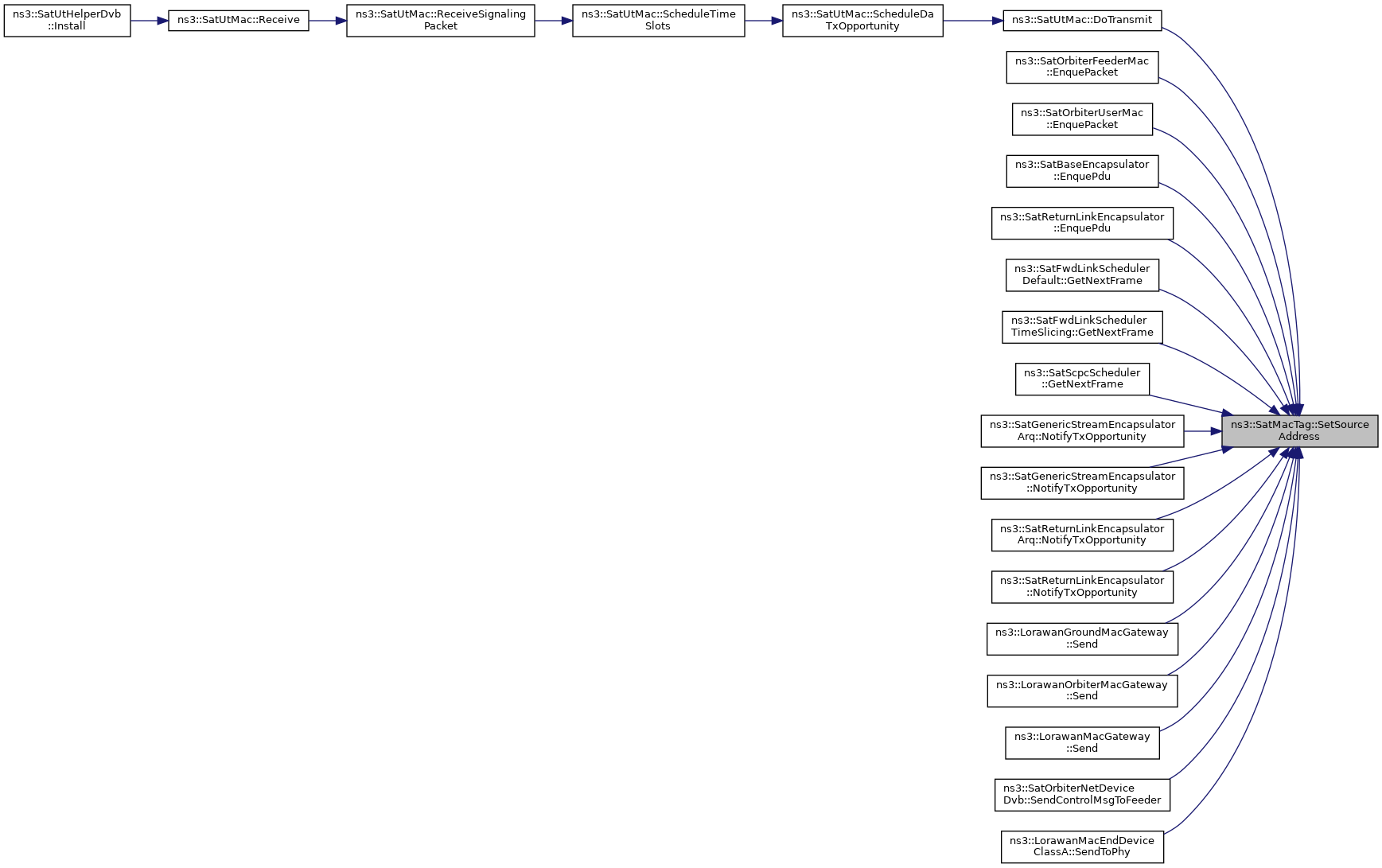

Here is the caller graph for this function:

Member Data Documentation

◆ ADDRESS_LENGHT

const uint32_t ns3::SatMacTag::ADDRESS_LENGHT = 6

staticprivate

Definition at line 113 of file satellite-mac-tag.h.

Referenced by Deserialize(), GetSerializedSize(), and Serialize().

◆ m_destAddress

Mac48Address ns3::SatMacTag::m_destAddress

private

Definition at line 115 of file satellite-mac-tag.h.

Referenced by Deserialize(), GetDestAddress(), Print(), Serialize(), and SetDestAddress().

◆ m_sourceAddress

Mac48Address ns3::SatMacTag::m_sourceAddress

private

Definition at line 116 of file satellite-mac-tag.h.

Referenced by Deserialize(), GetSourceAddress(), Print(), Serialize(), and SetSourceAddress().

The documentation for this class was generated from the following files:

/builds/sns3/satellite/satellite/model/satellite-mac-tag.h
/builds/sns3/satellite/satellite/model/satellite-mac-tag.cc
