Class representing the Network Address component of a LoraDeviceAddress (25 bits) More...
#include "lora-device-address.h"
Public Member Functions | |
| NwkAddr (uint32_t nwkId=0) | |
| uint32_t | Get (void) const |
| Get an uint32_t representation of the 25-bit network address. More... | |
| void | Set (uint32_t nwkAddr) |
| Set the NwkAddr, starting from a 32-bit representation of a 25-bit integer. More... | |
Private Attributes | |
| uint32_t | m_nwkAddr |
| 8-bit integer representation of the network id More... | |
Detailed Description
Class representing the Network Address component of a LoraDeviceAddress (25 bits)
Definition at line 69 of file lora-device-address.h.
Constructor & Destructor Documentation
◆ NwkAddr()
| ns3::NwkAddr::NwkAddr | ( | uint32_t | nwkId = 0 | ) |
Definition at line 65 of file lora-device-address.cc.
Member Function Documentation
◆ Get()
| uint32_t ns3::NwkAddr::Get | ( | void | ) | const |
Get an uint32_t representation of the 25-bit network address.
- Returns
- The Network Address.
Definition at line 83 of file lora-device-address.cc.
References m_nwkAddr.
Referenced by ns3::LoraDeviceAddress::LoraDeviceAddress(), ns3::LoraDeviceAddress::Get(), ns3::LoraDeviceAddressGenerator::GetNextAddress(), ns3::LoraDeviceAddress::GetNwkAddr(), ns3::LoraDeviceAddressGenerator::NextAddress(), and ns3::LoraDeviceAddress::Print().

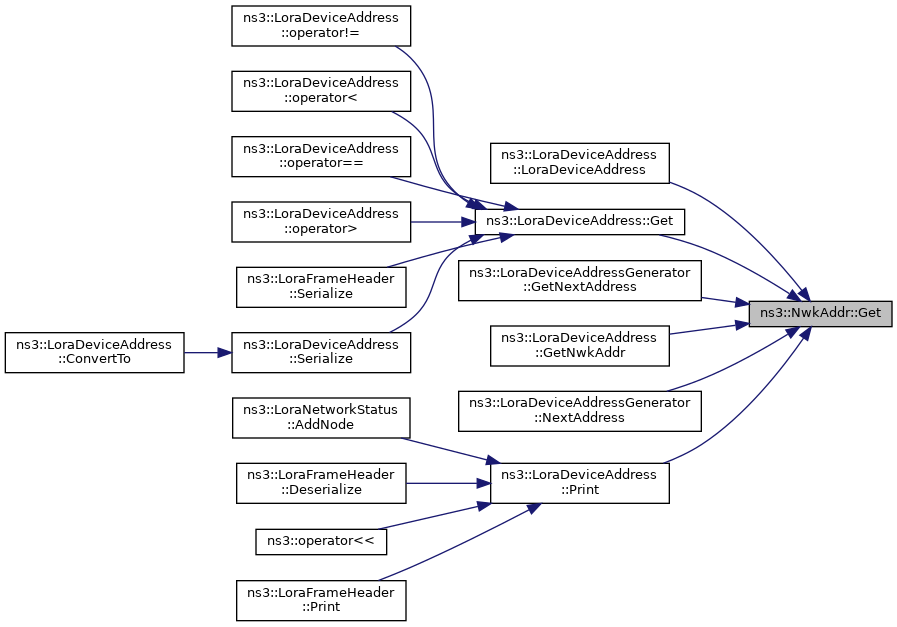

Here is the caller graph for this function:
◆ Set()
| void ns3::NwkAddr::Set | ( | uint32_t | nwkAddr | ) |
Set the NwkAddr, starting from a 32-bit representation of a 25-bit integer.
This method will ignore the most significant bits of the argument. This means that all arguments such that nwkAddr > 2^25 will actually be considered as nwkAddr mod 2^25.
- Parameters
-
nwkAddr The Network Address to set.
Definition at line 71 of file lora-device-address.cc.
References m_nwkAddr.
Referenced by ns3::LoraDeviceAddress::LoraDeviceAddress(), ns3::LoraDeviceAddressGenerator::LoraDeviceAddressGenerator(), ns3::LoraDeviceAddressGenerator::NextAddress(), ns3::LoraDeviceAddressGenerator::NextNetwork(), ns3::LoraDeviceAddress::Set(), and ns3::LoraDeviceAddress::SetNwkAddr().

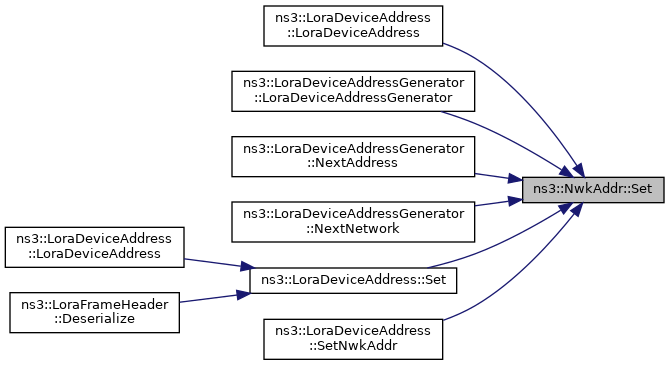

Here is the caller graph for this function:
Member Data Documentation
◆ m_nwkAddr
|
private |
8-bit integer representation of the network id
Definition at line 93 of file lora-device-address.h.
The documentation for this class was generated from the following files:
- /builds/sns3/satellite/satellite/model/lora-device-address.h
- /builds/sns3/satellite/satellite/model/lora-device-address.cc
