This class represents the device address of a LoraWAN End Device. More...

#include "lora-device-address.h"

Collaboration diagram for ns3::LoraDeviceAddress:

Public Member Functions
	LoraDeviceAddress ()

	LoraDeviceAddress (NwkID nwkId, NwkAddr nwkAddr)
	Build a new address from a network id and network address. More...

	LoraDeviceAddress (uint32_t address)
	Build a new address from a 32-bit integer. More...

	LoraDeviceAddress (uint8_t nwkId, uint32_t nwkAddr)
	Build a new address from a network id and network address. More...

uint32_t	Get (void) const
	Get the address in 32-bit integer form. More...

uint32_t	GetNwkAddr (void)
	Get the NwkAddr of this device. More...

uint8_t	GetNwkID (void)
	Get the NwkID of this device. More...

bool	operator!= (const LoraDeviceAddress &other) const

bool	operator< (const LoraDeviceAddress &other) const

bool	operator== (const LoraDeviceAddress &other) const

bool	operator> (const LoraDeviceAddress &other) const

std::string	Print (void) const
	Print the address bit-by-bit to a human-readable string. More...

void	Serialize (uint8_t buf[4]) const
	Convert this address to a buffer. More...

void	Set (uint32_t address)
	Set the address as a 32 bit integer. More...

void	Set (uint8_t nwkId, uint32_t nwkAddr)
	Set the address, combining a network id and a network address. More...

void	SetNwkAddr (uint32_t nwkAddr)
	Set the NwkAddr of this device. More...

void	SetNwkID (uint8_t nwkId)
	Set the NwkID of this device. More...

Static Public Member Functions
static LoraDeviceAddress	ConvertFrom (const Address &address)
	Convert from an ordinary address to a LoraDeviceAddress instance. More...

static LoraDeviceAddress	Deserialize (const uint8_t buf[4])
	Convert the input buffer into a new address. More...

Private Member Functions
Address	ConvertTo (void) const
	Convert this instance of LoraDeviceAddress to an Address. More...

Static Private Member Functions
static uint8_t	GetType (void)

Private Attributes
NwkAddr	m_nwkAddr
	The network address of this address. More...

NwkID	m_nwkId
	The network Id of this address. More...

Detailed Description

This class represents the device address of a LoraWAN End Device.

Definition at line 97 of file lora-device-address.h.

Constructor & Destructor Documentation

◆ LoraDeviceAddress() [1/4]

ns3::LoraDeviceAddress::LoraDeviceAddress ( )

Definition at line 89 of file lora-device-address.cc.

Referenced by Deserialize().

Here is the caller graph for this function:

◆ LoraDeviceAddress() [2/4]

ns3::LoraDeviceAddress::LoraDeviceAddress ( uint32_t address )

Build a new address from a 32-bit integer.

Definition at line 94 of file lora-device-address.cc.

References Set().

Here is the call graph for this function:

◆ LoraDeviceAddress() [3/4]

ns3::LoraDeviceAddress::LoraDeviceAddress	(	uint8_t	nwkId,
		uint32_t	nwkAddr
	)

Build a new address from a network id and network address.

Definition at line 101 of file lora-device-address.cc.

References m_nwkAddr, m_nwkId, ns3::NwkAddr::Set(), and ns3::NwkID::Set().

Here is the call graph for this function:

◆ LoraDeviceAddress() [4/4]

ns3::LoraDeviceAddress::LoraDeviceAddress	(	NwkID	nwkId,
		NwkAddr	nwkAddr
	)

Build a new address from a network id and network address.

Definition at line 109 of file lora-device-address.cc.

References ns3::NwkID::Get(), ns3::NwkAddr::Get(), m_nwkAddr, and m_nwkId.

Here is the call graph for this function:

Member Function Documentation

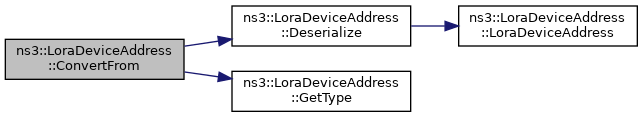

◆ ConvertFrom()

LoraDeviceAddress ns3::LoraDeviceAddress::ConvertFrom ( const Address & address )

static

Convert from an ordinary address to a LoraDeviceAddress instance.

Definition at line 159 of file lora-device-address.cc.

References Deserialize(), and GetType().

Here is the call graph for this function:

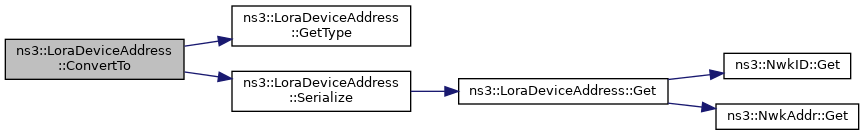

◆ ConvertTo()

Address ns3::LoraDeviceAddress::ConvertTo ( void ) const

private

Convert this instance of LoraDeviceAddress to an Address.

Definition at line 149 of file lora-device-address.cc.

References GetType(), and Serialize().

Here is the call graph for this function:

◆ Deserialize()

LoraDeviceAddress ns3::LoraDeviceAddress::Deserialize ( const uint8_t buf[4] )

static

Convert the input buffer into a new address.

Definition at line 131 of file lora-device-address.cc.

References LoraDeviceAddress().

Referenced by ConvertFrom().

Here is the call graph for this function:

Here is the caller graph for this function:

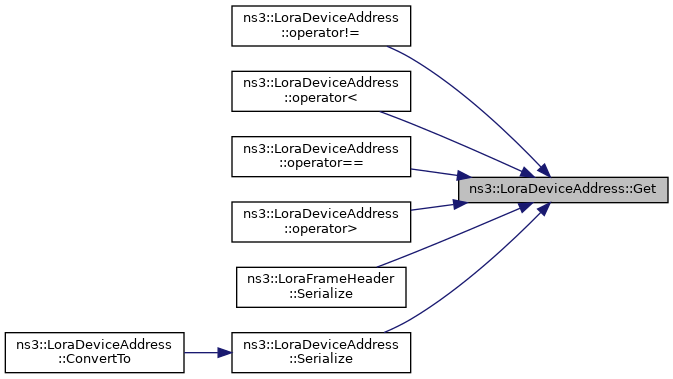

◆ Get()

uint32_t ns3::LoraDeviceAddress::Get ( void ) const

Get the address in 32-bit integer form.

Definition at line 183 of file lora-device-address.cc.

References ns3::NwkID::Get(), ns3::NwkAddr::Get(), m_nwkAddr, and m_nwkId.

Referenced by operator!=(), operator<(), operator==(), operator>(), ns3::LoraFrameHeader::Serialize(), and Serialize().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetNwkAddr()

uint32_t ns3::LoraDeviceAddress::GetNwkAddr ( void )

Get the NwkAddr of this device.

Remarks: The NwkAddr will be contained on the 25 least significant bits of the uint32_t.

Returns: A 32-bit representation of the Network Address of this Device Address.

Definition at line 213 of file lora-device-address.cc.

References ns3::NwkAddr::Get(), and m_nwkAddr.

Here is the call graph for this function:

◆ GetNwkID()

uint8_t ns3::LoraDeviceAddress::GetNwkID ( void )

Get the NwkID of this device.

Remarks: The NwkID bit-by-bit representation will be contained in the 7 least significant bits of the returned uint8_t.

Returns: An 8-bit representation of the Network Id of this Device Address.

Definition at line 205 of file lora-device-address.cc.

References ns3::NwkID::Get(), and m_nwkId.

Here is the call graph for this function:

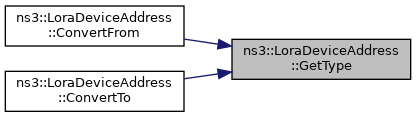

◆ GetType()

uint8_t ns3::LoraDeviceAddress::GetType ( void )

staticprivate

Definition at line 174 of file lora-device-address.cc.

Referenced by ConvertFrom(), and ConvertTo().

Here is the caller graph for this function:

◆ operator!=()

bool ns3::LoraDeviceAddress::operator!= ( const LoraDeviceAddress & other ) const

Definition at line 255 of file lora-device-address.cc.

References Get().

Here is the call graph for this function:

◆ operator<()

bool ns3::LoraDeviceAddress::operator< ( const LoraDeviceAddress & other ) const

Definition at line 260 of file lora-device-address.cc.

References Get().

Here is the call graph for this function:

◆ operator==()

bool ns3::LoraDeviceAddress::operator== ( const LoraDeviceAddress & other ) const

Definition at line 249 of file lora-device-address.cc.

References Get().

Here is the call graph for this function:

◆ operator>()

bool ns3::LoraDeviceAddress::operator> ( const LoraDeviceAddress & other ) const

Definition at line 267 of file lora-device-address.cc.

References Get().

Here is the call graph for this function:

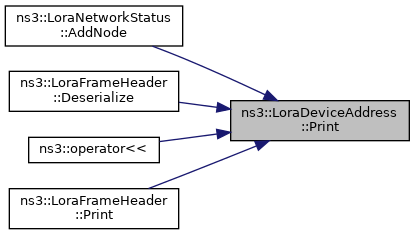

◆ Print()

std::string ns3::LoraDeviceAddress::Print ( void ) const

Print the address bit-by-bit to a human-readable string.

Returns: The string containing the network address.

Definition at line 237 of file lora-device-address.cc.

References ns3::NwkID::Get(), ns3::NwkAddr::Get(), m_nwkAddr, and m_nwkId.

Referenced by ns3::LoraNetworkStatus::AddNode(), ns3::LoraFrameHeader::Deserialize(), ns3::operator<<(), and ns3::LoraFrameHeader::Print().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Serialize()

void ns3::LoraDeviceAddress::Serialize ( uint8_t buf[4] ) const

Convert this address to a buffer.

Definition at line 118 of file lora-device-address.cc.

References Get().

Referenced by ConvertTo().

Here is the call graph for this function:

Here is the caller graph for this function:

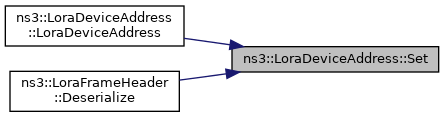

◆ Set() [1/2]

void ns3::LoraDeviceAddress::Set ( uint32_t address )

Set the address as a 32 bit integer.

Definition at line 196 of file lora-device-address.cc.

References m_nwkAddr, m_nwkId, ns3::NwkAddr::Set(), and ns3::NwkID::Set().

Referenced by LoraDeviceAddress(), and ns3::LoraFrameHeader::Deserialize().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Set() [2/2]

void ns3::LoraDeviceAddress::Set	(	uint8_t	nwkId,
		uint32_t	nwkAddr
	)

Set the address, combining a network id and a network address.

Note that nwkId is 7 bits long, and this function expects the 7 least significant bits to contain the nwkId. Similarly for the nwkAddr, the 25 least signficant bits of the uint32 are those that are expected to contain the nwkAddr.

◆ SetNwkAddr()

void ns3::LoraDeviceAddress::SetNwkAddr ( uint32_t nwkAddr )

Set the NwkAddr of this device.

Remarks: The NwkAddr is expected to be contained on the least significant bits of the uint32_t.

Parameters

nwkAddr The network address to set.

Definition at line 229 of file lora-device-address.cc.

References m_nwkAddr, and ns3::NwkAddr::Set().

Here is the call graph for this function:

◆ SetNwkID()

void ns3::LoraDeviceAddress::SetNwkID ( uint8_t nwkId )

Set the NwkID of this device.

Remarks: The NwkID is expected to be contained on the 7 least significant bits of the uint8_t.

Parameters

nwkId The network id to set.

Definition at line 221 of file lora-device-address.cc.

References m_nwkId, and ns3::NwkID::Set().

Here is the call graph for this function:

Member Data Documentation

◆ m_nwkAddr

NwkAddr ns3::LoraDeviceAddress::m_nwkAddr

private

The network address of this address.

Definition at line 211 of file lora-device-address.h.

Referenced by LoraDeviceAddress(), Get(), GetNwkAddr(), Print(), Set(), and SetNwkAddr().

◆ m_nwkId

NwkID ns3::LoraDeviceAddress::m_nwkId

private

The network Id of this address.

Definition at line 210 of file lora-device-address.h.

Referenced by LoraDeviceAddress(), Get(), GetNwkID(), Print(), Set(), and SetNwkID().

The documentation for this class was generated from the following files:

/builds/sns3/satellite/satellite/model/lora-device-address.h
/builds/sns3/satellite/satellite/model/lora-device-address.cc
