This class can install Network Server applications on multiple nodes at once. More...
#include "lora-network-server-helper.h"
Inheritance diagram for ns3::LoraNetworkServerHelper:
Collaboration diagram for ns3::LoraNetworkServerHelper:
Public Member Functions | |
| LoraNetworkServerHelper () | |
| ~LoraNetworkServerHelper () | |
| void | EnableAdr (bool enableAdr) |
| Enable (true) or disable (false) the ADR component in the Network Server created by this helper. More... | |
| ApplicationContainer | Install (NodeContainer c) |
| ApplicationContainer | Install (Ptr< Node > node) |
| void | SetAdr (std::string type) |
| Set the ADR implementation to use in the Network Server created by this helper. More... | |
| void | SetAttribute (std::string name, const AttributeValue &value) |
| void | SetEndDevices (NodeContainer endDevices) |
| Set which end devices will be managed by this NS. More... | |
| void | SetGateways (NodeContainer gateways) |
| Set which gateways will need to be connected to this NS. More... | |
Static Public Member Functions | |
| static TypeId | GetTypeId (void) |
| Get the type ID. More... | |
Private Member Functions | |
| void | InstallComponents (Ptr< LoraNetworkServer > netServer) |
| Ptr< Application > | InstallPriv (Ptr< Node > node) |
Private Attributes | |
| bool | m_adrEnabled |
| ObjectFactory | m_adrSupportFactory |
| NodeContainer | m_endDevices |
| Set of endDevices to connect to this NS. More... | |
| ObjectFactory | m_factory |
| NodeContainer | m_gateways |
| Set of gateways to connect to this NS. More... | |
| PointToPointHelper | p2pHelper |
| Helper to create PointToPoint links. More... | |
Detailed Description
This class can install Network Server applications on multiple nodes at once.
Definition at line 44 of file lora-network-server-helper.h.
Constructor & Destructor Documentation
◆ LoraNetworkServerHelper()
| ns3::LoraNetworkServerHelper::LoraNetworkServerHelper | ( | ) |
Definition at line 50 of file lora-network-server-helper.cc.
References m_factory, p2pHelper, and SetAdr().
Here is the call graph for this function:
◆ ~LoraNetworkServerHelper()
| ns3::LoraNetworkServerHelper::~LoraNetworkServerHelper | ( | ) |
Definition at line 58 of file lora-network-server-helper.cc.
Member Function Documentation
◆ EnableAdr()
| void ns3::LoraNetworkServerHelper::EnableAdr | ( | bool | enableAdr | ) |
Enable (true) or disable (false) the ADR component in the Network Server created by this helper.
Definition at line 136 of file lora-network-server-helper.cc.
References m_adrEnabled.
◆ GetTypeId()
|
static |
Get the type ID.
- Returns
- the object TypeId
Definition at line 42 of file lora-network-server-helper.cc.
◆ Install() [1/2]
| ApplicationContainer ns3::LoraNetworkServerHelper::Install | ( | NodeContainer | c | ) |
Definition at line 87 of file lora-network-server-helper.cc.
References InstallPriv().

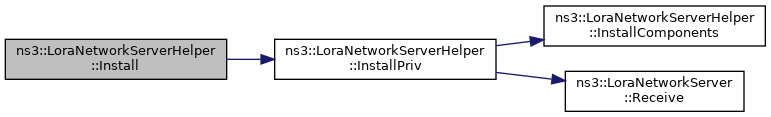

Here is the call graph for this function:
◆ Install() [2/2]
| ApplicationContainer ns3::LoraNetworkServerHelper::Install | ( | Ptr< Node > | node | ) |
Definition at line 81 of file lora-network-server-helper.cc.
References InstallPriv().
Here is the call graph for this function:
◆ InstallComponents()
|
private |
Definition at line 153 of file lora-network-server-helper.cc.
References m_adrEnabled, and m_adrSupportFactory.
Referenced by InstallPriv().
Here is the caller graph for this function:
◆ InstallPriv()
|
private |
Definition at line 99 of file lora-network-server-helper.cc.
References InstallComponents(), m_endDevices, m_factory, m_gateways, p2pHelper, and ns3::LoraNetworkServer::Receive().
Referenced by Install().
Here is the call graph for this function:
Here is the caller graph for this function:
◆ SetAdr()
| void ns3::LoraNetworkServerHelper::SetAdr | ( | std::string | type | ) |
Set the ADR implementation to use in the Network Server created by this helper.
Definition at line 144 of file lora-network-server-helper.cc.
References m_adrSupportFactory.
Referenced by LoraNetworkServerHelper().
Here is the caller graph for this function:
◆ SetAttribute()
| void ns3::LoraNetworkServerHelper::SetAttribute | ( | std::string | name, |
| const AttributeValue & | value | ||
| ) |
Definition at line 63 of file lora-network-server-helper.cc.
References m_factory.
◆ SetEndDevices()
| void ns3::LoraNetworkServerHelper::SetEndDevices | ( | NodeContainer | endDevices | ) |
Set which end devices will be managed by this NS.
Definition at line 75 of file lora-network-server-helper.cc.
References m_endDevices.
◆ SetGateways()
| void ns3::LoraNetworkServerHelper::SetGateways | ( | NodeContainer | gateways | ) |
Set which gateways will need to be connected to this NS.
Definition at line 69 of file lora-network-server-helper.cc.
References m_gateways.
Member Data Documentation
◆ m_adrEnabled
|
private |
Definition at line 97 of file lora-network-server-helper.h.
Referenced by EnableAdr(), and InstallComponents().
◆ m_adrSupportFactory
|
private |
Definition at line 99 of file lora-network-server-helper.h.
Referenced by InstallComponents(), and SetAdr().
◆ m_endDevices
|
private |
Set of endDevices to connect to this NS.
Definition at line 93 of file lora-network-server-helper.h.
Referenced by InstallPriv(), and SetEndDevices().
◆ m_factory
|
private |
Definition at line 89 of file lora-network-server-helper.h.
Referenced by LoraNetworkServerHelper(), InstallPriv(), and SetAttribute().
◆ m_gateways
|
private |
Set of gateways to connect to this NS.
Definition at line 91 of file lora-network-server-helper.h.
Referenced by InstallPriv(), and SetGateways().
◆ p2pHelper
|
private |
Helper to create PointToPoint links.
Definition at line 95 of file lora-network-server-helper.h.
Referenced by LoraNetworkServerHelper(), and InstallPriv().
The documentation for this class was generated from the following files:
- /builds/sns3/satellite/satellite/helper/lora-network-server-helper.h
- /builds/sns3/satellite/satellite/helper/lora-network-server-helper.cc
