ns3::LoraNetworkServer Class Reference

The LoraNetworkServer is an application standing on top of a node equipped with links that connect it with the gateways. More...

#include "lora-network-server.h"

Inheritance diagram for ns3::LoraNetworkServer:

Collaboration diagram for ns3::LoraNetworkServer:

Public Member Functions
	LoraNetworkServer ()
virtual	~LoraNetworkServer ()
void	AddComponent (Ptr< LoraNetworkControllerComponent > component)
	A NetworkControllerComponent to this LoraNetworkServer instance. More...
void	AddGateway (Ptr< Node > gateway, Ptr< NetDevice > netDevice)
	Add this gateway to the list of gateways connected to this NS. More...
void	AddNode (Ptr< Node > node)
	Inform the LoraNetworkServer that this node is connected to the network. More...
void	AddNodes (NodeContainer nodes)
	Inform the LoraNetworkServer that these nodes are connected to the network. More...
Ptr< LoraNetworkStatus >	GetNetworkStatus (void)
bool	Receive (Ptr< NetDevice > device, Ptr< const Packet > packet, uint16_t protocol, const Address &address)
	Receive a packet from a gateway. More...
void	StartApplication (void)
	Start the NS application. More...
void	StopApplication (void)
	Stop the NS application. More...

Static Public Member Functions
static TypeId	GetTypeId (void)

Protected Attributes
Ptr< LoraNetworkController >	m_controller
TracedCallback< Ptr< const Packet > >	m_receivedPacket
Ptr< LoraNetworkScheduler >	m_scheduler
Ptr< LoraNetworkStatus >	m_status

Detailed Description

The LoraNetworkServer is an application standing on top of a node equipped with links that connect it with the gateways.

This version of the LoraNetworkServer attempts to closely mimic an actual Network Server, by providing as much functionality as possible.

Definition at line 53 of file lora-network-server.h.

Constructor & Destructor Documentation

LoraNetworkServer()

ns3::LoraNetworkServer::LoraNetworkServer

(

)

Definition at line 60 of file lora-network-server.cc.

~LoraNetworkServer()

ns3::LoraNetworkServer::~LoraNetworkServer ( )

virtual

Definition at line 68 of file lora-network-server.cc.

Member Function Documentation

AddComponent()

void ns3::LoraNetworkServer::AddComponent

(

Ptr< LoraNetworkControllerComponent >

component

)

A NetworkControllerComponent to this LoraNetworkServer instance.

Definition at line 192 of file lora-network-server.cc.

References m_controller.

AddGateway()

void ns3::LoraNetworkServer::AddGateway	(	Ptr< Node >	gateway,
		Ptr< NetDevice >	netDevice
	)

Add this gateway to the list of gateways connected to this NS.

Each GW is identified by its Address in the NS-GWs network.

Definition at line 86 of file lora-network-server.cc.

References m_status, ns3::SatEnums::REGENERATION_NETWORK, and ns3::SatEnums::TRANSPARENT.

AddNode()

void ns3::LoraNetworkServer::AddNode

(

Ptr< Node >

node

)

Inform the LoraNetworkServer that this node is connected to the network.

This method will create a DeviceStatus object for the new node (if it doesn't already exist).

Definition at line 144 of file lora-network-server.cc.

References m_status.

Referenced by AddNodes().

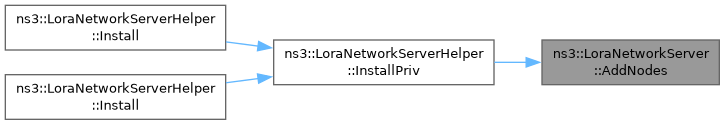

Here is the caller graph for this function:

AddNodes()

void ns3::LoraNetworkServer::AddNodes

(

NodeContainer

nodes

)

Inform the LoraNetworkServer that these nodes are connected to the network.

This method will create a DeviceStatus object for each new node, and add it to the list.

Definition at line 131 of file lora-network-server.cc.

References AddNode().

Here is the call graph for this function:

GetNetworkStatus()

Ptr< LoraNetworkStatus > ns3::LoraNetworkServer::GetNetworkStatus

(

void

)

Definition at line 200 of file lora-network-server.cc.

References m_status.

GetTypeId()

TypeId ns3::LoraNetworkServer::GetTypeId ( void  )

static

Definition at line 46 of file lora-network-server.cc.

References m_receivedPacket.

Receive()

bool ns3::LoraNetworkServer::Receive	(	Ptr< NetDevice >	device,
		Ptr< const Packet >	packet,
		uint16_t	protocol,
		const Address &	address
	)

Receive a packet from a gateway.

Parameters

packet

the received packet

Definition at line 169 of file lora-network-server.cc.

References m_controller, m_receivedPacket, m_scheduler, and m_status.

Referenced by ns3::LoraNetworkServerHelper::InstallPriv().

Here is the caller graph for this function:

StartApplication()

void ns3::LoraNetworkServer::StartApplication

(

void

)

Start the NS application.

Definition at line 74 of file lora-network-server.cc.

StopApplication()

void ns3::LoraNetworkServer::StopApplication

(

void

)

Stop the NS application.

Definition at line 80 of file lora-network-server.cc.

Member Data Documentation

m_controller

Ptr<LoraNetworkController> ns3::LoraNetworkServer::m_controller

protected

Definition at line 110 of file lora-network-server.h.

Referenced by AddComponent(), and Receive().

m_receivedPacket

TracedCallback<Ptr<const Packet> > ns3::LoraNetworkServer::m_receivedPacket

protected

Definition at line 113 of file lora-network-server.h.

Referenced by GetTypeId(), and Receive().

m_scheduler

Ptr<LoraNetworkScheduler> ns3::LoraNetworkServer::m_scheduler

protected

Definition at line 111 of file lora-network-server.h.

Referenced by Receive().

m_status

Ptr<LoraNetworkStatus> ns3::LoraNetworkServer::m_status

protected

Definition at line 109 of file lora-network-server.h.

Referenced by AddGateway(), AddNode(), GetNetworkStatus(), and Receive().

---

The documentation for this class was generated from the following files:

• /builds/sns3/satellite/satellite/model/lora-network-server.h
• /builds/sns3/satellite/satellite/model/lora-network-server.cc
