This class represents the Network Server's knowledge about an End Device in the LoRaWAN network it is administering. More...

#include "lora-end-device-status.h"

Inheritance diagram for ns3::LoraEndDeviceStatus:

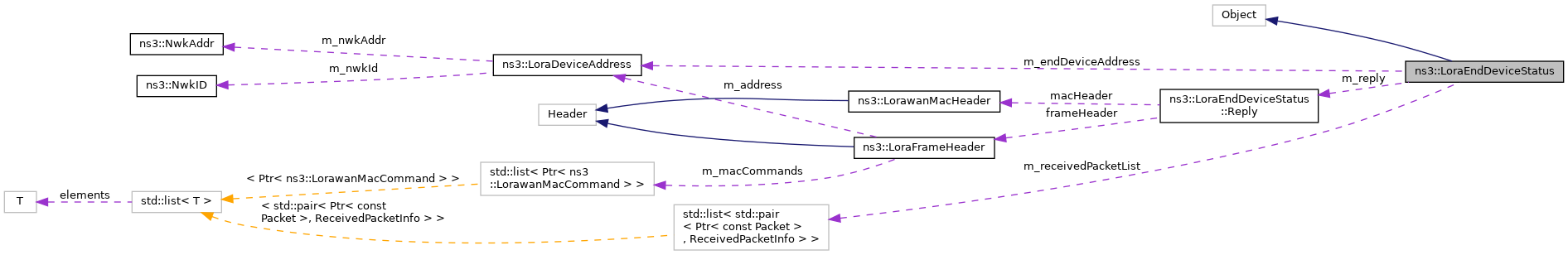

Collaboration diagram for ns3::LoraEndDeviceStatus:

Classes
struct	PacketInfoPerGw
	Structure saving information regarding the packet reception in each gateway. More...

struct	ReceivedPacketInfo
	Structure saving information regarding all packet receptions. More...

struct	Reply
	Structure representing the reply that the network server will send this device at the first opportunity. More...

Public Types
typedef std::map< Address, PacketInfoPerGw >	GatewayList

typedef std::list< std::pair< Ptr< const Packet >, ReceivedPacketInfo > >	ReceivedPacketList

Public Member Functions
	LoraEndDeviceStatus ()

	LoraEndDeviceStatus (LoraDeviceAddress endDeviceAddress, Ptr< LorawanMacEndDeviceClassA > endDeviceMac)

virtual	~LoraEndDeviceStatus ()

void	AddMACCommand (Ptr< LorawanMacCommand > macCommand)
	Add MAC command to the list. More...

uint8_t	GetBeamId (void)
	Get the beam ID this device is using. More...

Ptr< Packet >	GetCompleteReplyPacket (void)
	Get the reply packet. More...

double	GetFirstReceiveWindowFrequency (void)
	Get the first window frequency of this device. More...

uint8_t	GetFirstReceiveWindowSpreadingFactor (void)
	Get the spreading factor this device is using in the first receive window. More...

Ptr< const Packet >	GetLastPacketReceivedFromDevice (void)
	Return the last packet that was received from this device. More...

LoraEndDeviceStatus::ReceivedPacketInfo	GetLastReceivedPacketInfo (void)
	Return the information about the last packet that was received from the device. More...

Ptr< LorawanMacEndDeviceClassA >	GetMac (void)

uint8_t	GetModcod (void)
	Get the modcod this device is using. More...

std::map< double, Address >	GetPowerGatewayMap (void)
	Return an ordered list of the best gateways. More...

ReceivedPacketList	GetReceivedPacketList (void)
	Get the received packet list. More...

LoraFrameHeader	GetReplyFrameHeader (void)
	Get the reply packet frame header. More...

LorawanMacHeader	GetReplyMacHeader (void)
	Get the reply packet mac header. More...

Ptr< Packet >	GetReplyPayload (void)
	Get the data of the reply packet. More...

double	GetSecondReceiveWindowFrequency (void)
	Return the second window frequency of this device. More...

uint8_t	GetSecondReceiveWindowOffset (void)
	Get the offset of spreading factor this device is using in the second receive window with respect to the first receive window. More...

bool	HasReceiveWindowOpportunityScheduled ()
	Returns whether we already decided we will schedule a transmission to this ED. More...

void	InitializeReply (void)
	Initialize reply. More...

void	InsertReceivedPacket (Ptr< const Packet > receivedPacket, const Address &gwAddress)
	Insert a received packet in the packet list. More...

bool	NeedsReply (void)
	Whether the end device needs a reply. More...

void	RemoveReceiveWindowOpportunity (void)

void	SetBeamId (uint8_t beamId)
	Set the beam ID this device is using. More...

void	SetFirstReceiveWindowFrequency (double frequency)
	Set the first window frequency of this device. More...

void	SetFirstReceiveWindowSpreadingFactor (uint8_t sf)
	Set the spreading factor this device is using in the first receive window. More...

void	SetModcod (uint8_t modcod)
	Set the modcod this device is using. More...

void	SetReceiveWindowOpportunity (EventId event)

void	SetReplyFrameHeader (LoraFrameHeader frameHeader)
	Set the reply packet frame header. More...

void	SetReplyMacHeader (LorawanMacHeader macHeader)
	Set the reply packet mac header. More...

void	SetReplyPayload (Ptr< Packet > replyPayload)
	Set the packet reply payload. More...

void	SetSecondReceiveWindowFrequency (double frequency)
	Set the second window frequency of this device. More...

void	SetSecondReceiveWindowOffset (uint8_t offset)
	Set the spreading factor this device is using in the first receive window. More...

void	UpdateGatewayData (GatewayList gwList, Address gwAddress, double rcvPower)
	Update Gateway data when more then one gateway receive the same packet. More...

Static Public Member Functions
static TypeId	GetTypeId (void)

Public Attributes
LoraDeviceAddress	m_endDeviceAddress

struct Reply	m_reply

Private Attributes
uint8_t	m_beamId

double	m_firstReceiveWindowFrequency = 0

uint8_t	m_firstReceiveWindowSpreadingFactor = 0

Ptr< LorawanMacEndDeviceClassA >	m_mac
	Pointer to the MAC layer of this device. More...

uint8_t	m_modcod

ReceivedPacketList	m_receivedPacketList

EventId	m_receiveWindowEvent

double	m_secondReceiveWindowFrequency = 869.525

uint8_t	m_secondReceiveWindowOffset = 0

Address	m_utAddress

Friends
std::ostream &	operator<< (std::ostream &os, const LoraEndDeviceStatus &status)

Detailed Description

This class represents the Network Server's knowledge about an End Device in the LoRaWAN network it is administering.

The Network Server's NetworkStatus component contains a list of instances of this class, one for each device in the network. Each instance contains all the parameters and information of the end device and the packets received from it. Furthermore, this class holds the reply packet that the network server will send to this device at the first available receive window. Upon new packet arrivals at the Network Server, the OnReceivedPacket method is called to update the information regarding the last received packet and its parameters.

Definition at line 90 of file lora-end-device-status.h.

Member Typedef Documentation

◆ GatewayList

typedef std::map<Address, PacketInfoPerGw> ns3::LoraEndDeviceStatus::GatewayList

Definition at line 170 of file lora-end-device-status.h.

◆ ReceivedPacketList

typedef std::list<std::pair<Ptr<const Packet>, ReceivedPacketInfo> > ns3::LoraEndDeviceStatus::ReceivedPacketList

Definition at line 184 of file lora-end-device-status.h.

Constructor & Destructor Documentation

◆ LoraEndDeviceStatus() [1/2]

ns3::LoraEndDeviceStatus::LoraEndDeviceStatus ( )

Definition at line 71 of file lora-end-device-status.cc.

References m_receivedPacketList, and m_reply.

◆ LoraEndDeviceStatus() [2/2]

ns3::LoraEndDeviceStatus::LoraEndDeviceStatus	(	LoraDeviceAddress	endDeviceAddress,
		Ptr< LorawanMacEndDeviceClassA >	endDeviceMac
	)

Definition at line 60 of file lora-end-device-status.cc.

◆ ~LoraEndDeviceStatus()

ns3::LoraEndDeviceStatus::~LoraEndDeviceStatus ( )

virtual

Definition at line 80 of file lora-end-device-status.cc.

Member Function Documentation

◆ AddMACCommand()

void ns3::LoraEndDeviceStatus::AddMACCommand ( Ptr< LorawanMacCommand > macCommand )

Add MAC command to the list.

Definition at line 419 of file lora-end-device-status.cc.

References ns3::LoraFrameHeader::AddCommand(), ns3::LoraEndDeviceStatus::Reply::frameHeader, and m_reply.

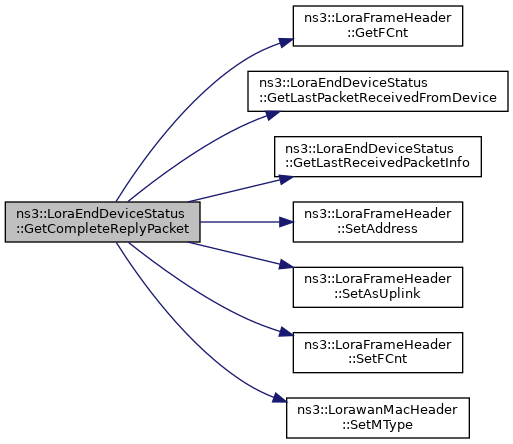

Here is the call graph for this function:

◆ GetBeamId()

uint8_t ns3::LoraEndDeviceStatus::GetBeamId ( void )

Get the beam ID this device is using.

Returns: An unsigned 8-bit integer containing the beam ID index.

Definition at line 97 of file lora-end-device-status.cc.

References m_beamId.

◆ GetCompleteReplyPacket()

Ptr< Packet > ns3::LoraEndDeviceStatus::GetCompleteReplyPacket ( void )

Get the reply packet.

Returns: A pointer to the packet reply (data + headers).

Definition at line 135 of file lora-end-device-status.cc.

References ns3::LoraEndDeviceStatus::Reply::frameHeader, ns3::LoraFrameHeader::GetFCnt(), GetLastPacketReceivedFromDevice(), GetLastReceivedPacketInfo(), m_endDeviceAddress, m_reply, m_utAddress, ns3::LoraEndDeviceStatus::Reply::macHeader, ns3::LoraEndDeviceStatus::Reply::payload, ns3::SatEnums::REGENERATION_NETWORK, ns3::LoraFrameHeader::SetAddress(), ns3::LoraFrameHeader::SetAsUplink(), ns3::LoraFrameHeader::SetFCnt(), ns3::LorawanMacHeader::SetMType(), and ns3::LorawanMacHeader::UNCONFIRMED_DATA_DOWN.

Here is the call graph for this function:

◆ GetFirstReceiveWindowFrequency()

double ns3::LoraEndDeviceStatus::GetFirstReceiveWindowFrequency ( void )

Get the first window frequency of this device.

Definition at line 112 of file lora-end-device-status.cc.

References m_firstReceiveWindowFrequency.

◆ GetFirstReceiveWindowSpreadingFactor()

uint8_t ns3::LoraEndDeviceStatus::GetFirstReceiveWindowSpreadingFactor ( void )

Get the spreading factor this device is using in the first receive window.

Returns: An unsigned 8-bit integer containing the spreading factor.

Definition at line 104 of file lora-end-device-status.cc.

References m_firstReceiveWindowSpreadingFactor.

◆ GetLastPacketReceivedFromDevice()

Ptr< const Packet > ns3::LoraEndDeviceStatus::GetLastPacketReceivedFromDevice ( void )

Return the last packet that was received from this device.

Definition at line 396 of file lora-end-device-status.cc.

References m_receivedPacketList.

Referenced by GetCompleteReplyPacket().

Here is the caller graph for this function:

◆ GetLastReceivedPacketInfo()

LoraEndDeviceStatus::ReceivedPacketInfo ns3::LoraEndDeviceStatus::GetLastReceivedPacketInfo ( void )

Return the information about the last packet that was received from the device.

Definition at line 381 of file lora-end-device-status.cc.

References m_receivedPacketList.

Referenced by GetCompleteReplyPacket().

Here is the caller graph for this function:

◆ GetMac()

Ptr< LorawanMacEndDeviceClassA > ns3::LoraEndDeviceStatus::GetMac ( void )

Definition at line 210 of file lora-end-device-status.cc.

References m_mac.

◆ GetModcod()

uint8_t ns3::LoraEndDeviceStatus::GetModcod ( void )

Get the modcod this device is using.

Returns: An unsigned 8-bit integer containing the modcod index.

Definition at line 90 of file lora-end-device-status.cc.

References m_modcod.

◆ GetPowerGatewayMap()

std::map< double, Address > ns3::LoraEndDeviceStatus::GetPowerGatewayMap ( void )

Return an ordered list of the best gateways.

Definition at line 443 of file lora-end-device-status.cc.

References ns3::LoraEndDeviceStatus::ReceivedPacketInfo::gwList, and m_receivedPacketList.

◆ GetReceivedPacketList()

LoraEndDeviceStatus::ReceivedPacketList ns3::LoraEndDeviceStatus::GetReceivedPacketList ( void )

Get the received packet list.

Returns: The received packet list.

Definition at line 216 of file lora-end-device-status.cc.

References m_receivedPacketList.

◆ GetReplyFrameHeader()

LoraFrameHeader ns3::LoraEndDeviceStatus::GetReplyFrameHeader ( void )

Get the reply packet frame header.

Returns: The packet reply frame header.

Definition at line 196 of file lora-end-device-status.cc.

References ns3::LoraEndDeviceStatus::Reply::frameHeader, and m_reply.

◆ GetReplyMacHeader()

LorawanMacHeader ns3::LoraEndDeviceStatus::GetReplyMacHeader ( void )

Get the reply packet mac header.

Returns: The packet reply mac header.

Definition at line 189 of file lora-end-device-status.cc.

References m_reply, and ns3::LoraEndDeviceStatus::Reply::macHeader.

◆ GetReplyPayload()

Ptr< Packet > ns3::LoraEndDeviceStatus::GetReplyPayload ( void )

Get the data of the reply packet.

Returns: A pointer to the packet reply.

Definition at line 203 of file lora-end-device-status.cc.

References m_reply, and ns3::LoraEndDeviceStatus::Reply::payload.

◆ GetSecondReceiveWindowFrequency()

double ns3::LoraEndDeviceStatus::GetSecondReceiveWindowFrequency ( void )

Return the second window frequency of this device.

Definition at line 128 of file lora-end-device-status.cc.

References m_secondReceiveWindowFrequency.

◆ GetSecondReceiveWindowOffset()

uint8_t ns3::LoraEndDeviceStatus::GetSecondReceiveWindowOffset ( void )

Get the offset of spreading factor this device is using in the second receive window with respect to the first receive window.

Returns: An unsigned 8-bit integer containing the spreading factor.

Definition at line 120 of file lora-end-device-status.cc.

References m_secondReceiveWindowOffset.

◆ GetTypeId()

TypeId ns3::LoraEndDeviceStatus::GetTypeId ( void )

static

Definition at line 52 of file lora-end-device-status.cc.

◆ HasReceiveWindowOpportunityScheduled()

bool ns3::LoraEndDeviceStatus::HasReceiveWindowOpportunityScheduled ( )

Returns whether we already decided we will schedule a transmission to this ED.

Definition at line 425 of file lora-end-device-status.cc.

References m_receiveWindowEvent.

◆ InitializeReply()

void ns3::LoraEndDeviceStatus::InitializeReply ( void )

Initialize reply.

Definition at line 411 of file lora-end-device-status.cc.

References m_reply, and ns3::LoraEndDeviceStatus::Reply::needsReply.

◆ InsertReceivedPacket()

void ns3::LoraEndDeviceStatus::InsertReceivedPacket	(	Ptr< const Packet >	receivedPacket,
		const Address &	gwAddress
	)

Insert a received packet in the packet list.

Definition at line 291 of file lora-end-device-status.cc.

References ns3::LoraEndDeviceStatus::ReceivedPacketInfo::frequency, ns3::LoraBeamTag::GetBeamId(), ns3::LoraFrameHeader::GetFCnt(), ns3::LoraTag::GetFrequency(), ns3::LoraTag::GetModcod(), ns3::LoraTag::GetReceivePower(), ns3::LoraTag::GetSpreadingFactor(), ns3::LoraEndDeviceStatus::PacketInfoPerGw::gwAddress, ns3::LoraEndDeviceStatus::ReceivedPacketInfo::gwList, m_receivedPacketList, ns3::LoraEndDeviceStatus::ReceivedPacketInfo::packet, ns3::LoraEndDeviceStatus::PacketInfoPerGw::receivedTime, ns3::LoraEndDeviceStatus::PacketInfoPerGw::rxPower, ns3::LoraFrameHeader::SetAsUplink(), SetBeamId(), SetFirstReceiveWindowFrequency(), SetFirstReceiveWindowSpreadingFactor(), SetModcod(), and ns3::LoraEndDeviceStatus::ReceivedPacketInfo::sf.

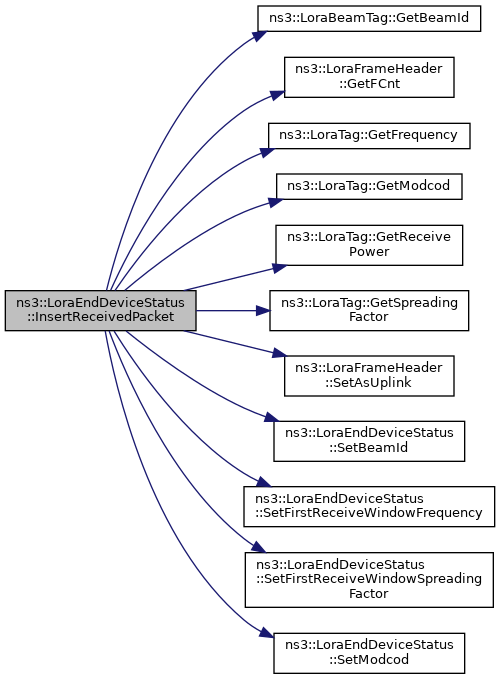

Here is the call graph for this function:

◆ NeedsReply()

bool ns3::LoraEndDeviceStatus::NeedsReply ( void )

Whether the end device needs a reply.

This is determined by looking at headers and payload of the Reply structure: if they are empty, no reply should be needed.

Returns: A boolean value signaling if the end device needs a reply.

Definition at line 181 of file lora-end-device-status.cc.

References m_reply, and ns3::LoraEndDeviceStatus::Reply::needsReply.

◆ RemoveReceiveWindowOpportunity()

void ns3::LoraEndDeviceStatus::RemoveReceiveWindowOpportunity ( void )

Definition at line 437 of file lora-end-device-status.cc.

References m_receiveWindowEvent.

◆ SetBeamId()

void ns3::LoraEndDeviceStatus::SetBeamId ( uint8_t beamId )

Set the beam ID this device is using.

Definition at line 230 of file lora-end-device-status.cc.

References m_beamId.

Referenced by InsertReceivedPacket().

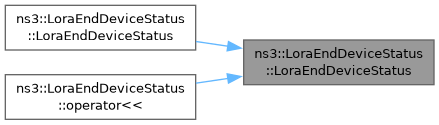

Here is the caller graph for this function:

◆ SetFirstReceiveWindowFrequency()

void ns3::LoraEndDeviceStatus::SetFirstReceiveWindowFrequency ( double frequency )

Set the first window frequency of this device.

Definition at line 245 of file lora-end-device-status.cc.

References m_firstReceiveWindowFrequency.

Referenced by InsertReceivedPacket().

Here is the caller graph for this function:

◆ SetFirstReceiveWindowSpreadingFactor()

void ns3::LoraEndDeviceStatus::SetFirstReceiveWindowSpreadingFactor ( uint8_t sf )

Set the spreading factor this device is using in the first receive window.

Definition at line 238 of file lora-end-device-status.cc.

References m_firstReceiveWindowSpreadingFactor.

Referenced by InsertReceivedPacket().

Here is the caller graph for this function:

◆ SetModcod()

void ns3::LoraEndDeviceStatus::SetModcod ( uint8_t modcod )

Set the modcod this device is using.

Definition at line 223 of file lora-end-device-status.cc.

References m_modcod.

Referenced by InsertReceivedPacket().

Here is the caller graph for this function:

◆ SetReceiveWindowOpportunity()

void ns3::LoraEndDeviceStatus::SetReceiveWindowOpportunity ( EventId event )

Definition at line 431 of file lora-end-device-status.cc.

References m_receiveWindowEvent.

◆ SetReplyFrameHeader()

void ns3::LoraEndDeviceStatus::SetReplyFrameHeader ( LoraFrameHeader frameHeader )

Set the reply packet frame header.

Definition at line 273 of file lora-end-device-status.cc.

References ns3::LoraEndDeviceStatus::Reply::frameHeader, and m_reply.

◆ SetReplyMacHeader()

void ns3::LoraEndDeviceStatus::SetReplyMacHeader ( LorawanMacHeader macHeader )

Set the reply packet mac header.

Definition at line 266 of file lora-end-device-status.cc.

References m_reply, and ns3::LoraEndDeviceStatus::Reply::macHeader.

◆ SetReplyPayload()

void ns3::LoraEndDeviceStatus::SetReplyPayload ( Ptr< Packet > replyPayload )

Set the packet reply payload.

Definition at line 280 of file lora-end-device-status.cc.

References m_reply, and ns3::LoraEndDeviceStatus::Reply::payload.

◆ SetSecondReceiveWindowFrequency()

void ns3::LoraEndDeviceStatus::SetSecondReceiveWindowFrequency ( double frequency )

Set the second window frequency of this device.

Definition at line 259 of file lora-end-device-status.cc.

References m_secondReceiveWindowFrequency.

◆ SetSecondReceiveWindowOffset()

void ns3::LoraEndDeviceStatus::SetSecondReceiveWindowOffset ( uint8_t offset )

Set the spreading factor this device is using in the first receive window.

Definition at line 252 of file lora-end-device-status.cc.

References m_secondReceiveWindowOffset.

◆ UpdateGatewayData()

void ns3::LoraEndDeviceStatus::UpdateGatewayData	(	GatewayList	gwList,
		Address	gwAddress,
		double	rcvPower
	)

Update Gateway data when more then one gateway receive the same packet.

Friends And Related Function Documentation

◆ operator<<

std::ostream& operator<<	(	std::ostream &	os,
		const LoraEndDeviceStatus &	status
	)

friend

Definition at line 463 of file lora-end-device-status.cc.

Member Data Documentation

◆ m_beamId

uint8_t ns3::LoraEndDeviceStatus::m_beamId

private

Definition at line 349 of file lora-end-device-status.h.

Referenced by GetBeamId(), and SetBeamId().

◆ m_endDeviceAddress

LoraDeviceAddress ns3::LoraEndDeviceStatus::m_endDeviceAddress

Definition at line 342 of file lora-end-device-status.h.

Referenced by GetCompleteReplyPacket().

◆ m_firstReceiveWindowFrequency

double ns3::LoraEndDeviceStatus::m_firstReceiveWindowFrequency = 0

private

Definition at line 352 of file lora-end-device-status.h.

Referenced by GetFirstReceiveWindowFrequency(), and SetFirstReceiveWindowFrequency().

◆ m_firstReceiveWindowSpreadingFactor

uint8_t ns3::LoraEndDeviceStatus::m_firstReceiveWindowSpreadingFactor = 0

private

Definition at line 351 of file lora-end-device-status.h.

Referenced by GetFirstReceiveWindowSpreadingFactor(), and SetFirstReceiveWindowSpreadingFactor().

◆ m_mac

Ptr<LorawanMacEndDeviceClassA> ns3::LoraEndDeviceStatus::m_mac

private

Pointer to the MAC layer of this device.

Definition at line 361 of file lora-end-device-status.h.

Referenced by GetMac().

◆ m_modcod

uint8_t ns3::LoraEndDeviceStatus::m_modcod

private

Definition at line 348 of file lora-end-device-status.h.

Referenced by GetModcod(), and SetModcod().

◆ m_receivedPacketList

ReceivedPacketList ns3::LoraEndDeviceStatus::m_receivedPacketList

private

Definition at line 357 of file lora-end-device-status.h.

Referenced by LoraEndDeviceStatus(), GetLastPacketReceivedFromDevice(), GetLastReceivedPacketInfo(), GetPowerGatewayMap(), GetReceivedPacketList(), and InsertReceivedPacket().

◆ m_receiveWindowEvent

EventId ns3::LoraEndDeviceStatus::m_receiveWindowEvent

private

Definition at line 355 of file lora-end-device-status.h.

Referenced by HasReceiveWindowOpportunityScheduled(), RemoveReceiveWindowOpportunity(), and SetReceiveWindowOpportunity().

◆ m_reply

struct Reply ns3::LoraEndDeviceStatus::m_reply

Definition at line 338 of file lora-end-device-status.h.

Referenced by LoraEndDeviceStatus(), AddMACCommand(), GetCompleteReplyPacket(), GetReplyFrameHeader(), GetReplyMacHeader(), GetReplyPayload(), InitializeReply(), NeedsReply(), SetReplyFrameHeader(), SetReplyMacHeader(), and SetReplyPayload().

◆ m_secondReceiveWindowFrequency

double ns3::LoraEndDeviceStatus::m_secondReceiveWindowFrequency = 869.525

private

Definition at line 354 of file lora-end-device-status.h.

Referenced by GetSecondReceiveWindowFrequency(), and SetSecondReceiveWindowFrequency().

◆ m_secondReceiveWindowOffset

uint8_t ns3::LoraEndDeviceStatus::m_secondReceiveWindowOffset = 0

private

Definition at line 353 of file lora-end-device-status.h.

Referenced by GetSecondReceiveWindowOffset(), and SetSecondReceiveWindowOffset().

◆ m_utAddress

Address ns3::LoraEndDeviceStatus::m_utAddress

private

Definition at line 350 of file lora-end-device-status.h.

Referenced by GetCompleteReplyPacket().

The documentation for this class was generated from the following files:

/builds/sns3/satellite/satellite/model/lora-end-device-status.h
/builds/sns3/satellite/satellite/model/lora-end-device-status.cc

Classes

Public Types

Public Member Functions

Static Public Member Functions

Public Attributes

Private Attributes

Friends

Detailed Description

Member Typedef Documentation

◆ GatewayList

◆ ReceivedPacketList

Constructor & Destructor Documentation

◆ LoraEndDeviceStatus() [1/2]

◆ LoraEndDeviceStatus() [2/2]

◆ ~LoraEndDeviceStatus()

Member Function Documentation

◆ AddMACCommand()

◆ GetBeamId()

◆ GetCompleteReplyPacket()

◆ GetFirstReceiveWindowFrequency()

◆ GetFirstReceiveWindowSpreadingFactor()

◆ GetLastPacketReceivedFromDevice()

◆ GetLastReceivedPacketInfo()

◆ GetMac()

◆ GetModcod()

◆ GetPowerGatewayMap()

◆ GetReceivedPacketList()

◆ GetReplyFrameHeader()

◆ GetReplyMacHeader()

◆ GetReplyPayload()

◆ GetSecondReceiveWindowFrequency()

◆ GetSecondReceiveWindowOffset()

◆ GetTypeId()

◆ HasReceiveWindowOpportunityScheduled()

◆ InitializeReply()

◆ InsertReceivedPacket()

◆ NeedsReply()

◆ RemoveReceiveWindowOpportunity()

◆ SetBeamId()

◆ SetFirstReceiveWindowFrequency()

◆ SetFirstReceiveWindowSpreadingFactor()

◆ SetModcod()

◆ SetReceiveWindowOpportunity()

◆ SetReplyFrameHeader()

◆ SetReplyMacHeader()

◆ SetReplyPayload()

◆ SetSecondReceiveWindowFrequency()

◆ SetSecondReceiveWindowOffset()

◆ UpdateGatewayData()

Friends And Related Function Documentation

◆ operator<<

Member Data Documentation

◆ m_beamId

◆ m_endDeviceAddress

◆ m_firstReceiveWindowFrequency

◆ m_firstReceiveWindowSpreadingFactor

◆ m_mac

◆ m_modcod

◆ m_receivedPacketList

◆ m_receiveWindowEvent

◆ m_reply

◆ m_secondReceiveWindowFrequency

◆ m_secondReceiveWindowOffset

◆ m_utAddress
