The SatUtScheduler is responsible of getting a packet of proper size from higher protocol layer. More...

#include "satellite-ut-scheduler.h"

Inheritance diagram for ns3::SatUtScheduler:

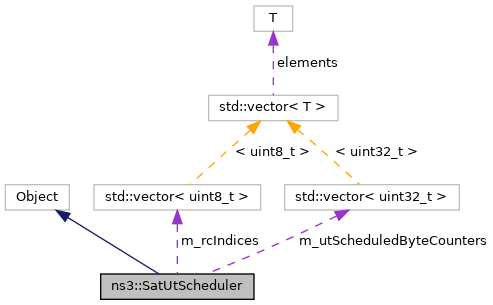

Collaboration diagram for ns3::SatUtScheduler:

Public Types
typedef std::vector< uint32_t >	ByteCounterContainer_t
	Byte counter container. More...

enum	SatCompliancePolicy_t { STRICT = 0 , LOOSE = 1 }
	Enum describing the wanted scheduler policy. More...

typedef Callback< void, std::vector< Ptr< SatSchedulingObject > > & >	SchedContextCallback
	Callback to get scheduling contexts from upper layer. More...

typedef Callback< Ptr< Packet >, uint32_t, Mac48Address, uint8_t, uint32_t &, uint32_t & >	TxOpportunityCallback
	Callback to notify upper layer about Tx opportunity. More...

Public Member Functions
	SatUtScheduler ()
	Default constructor. More...

	SatUtScheduler (Ptr< SatLowerLayerServiceConf > lls)
	Used constructor. More...

virtual	~SatUtScheduler ()
	Destructor. More...

virtual void	DoDispose (void)
	Dispose of SatUtScheduler. More...

void	DoScheduling (std::vector< Ptr< Packet >> &packets, uint32_t payloadBytes, SatTimeSlotConf::SatTimeSlotType_t type, uint8_t rcIndex, SatCompliancePolicy_t policy)
	UT scheduling is responsible of selecting with which RC index to use when requesting packets from higher layer. More...

virtual TypeId	GetInstanceTypeId (void) const
	Derived from Object. More...

virtual void	SetNodeInfo (Ptr< SatNodeInfo > nodeInfo)
	Set the node info. More...

void	SetSchedContextCallback (SatUtScheduler::SchedContextCallback cb)
	Method to set Tx opportunity callback. More...

void	SetTxOpportunityCallback (SatUtScheduler::TxOpportunityCallback cb)
	Method to set Tx opportunity callback. More...

Static Public Member Functions
static TypeId	GetTypeId (void)
	Derived from Object. More...

Private Member Functions
uint32_t	DoSchedulingForRcIndex (std::vector< Ptr< Packet >> &packets, uint32_t &payloadBytes, uint8_t rcIndex)
	Do scheduling for a given RC index. More...

std::vector< uint8_t >	GetPrioritizedRcIndexOrder ()
	Get a prioritized order of the available RC indices for LOOSE policy UT scheduling. More...

Private Attributes
uint32_t	m_framePduHeaderSizeInBytes
	Frame PDU header size. More...

Ptr< SatLowerLayerServiceConf >	m_llsConf
	The configured lower layer service configuration for this UT MAC. More...

Ptr< SatNodeInfo >	m_nodeInfo
	Node information. More...

bool	m_prioritizeControl
	Strictly prioritize the control message scheduling regardless of the time slot information given from MAC layer. More...

std::vector< uint8_t >	m_rcIndices
	Available RC indices for scheduling. More...

SatUtScheduler::SchedContextCallback	m_schedContextCallback
	The scheduling context getter callback. More...

SatUtScheduler::TxOpportunityCallback	m_txOpportunityCallback
	Callback to notify the txOpportunity to upper layer Returns a packet Attributes: payload in bytes. More...

ByteCounterContainer_t	m_utScheduledByteCounters
	Byte counters for RC indices. More...

Detailed Description

The SatUtScheduler is responsible of getting a packet of proper size from higher protocol layer.

Two callbacks to LLC layer have been configured:

TxOpportunity callback
Scheduling requests callback

Definition at line 88 of file satellite-ut-scheduler.h.

Member Typedef Documentation

◆ ByteCounterContainer_t

typedef std::vector<uint32_t> ns3::SatUtScheduler::ByteCounterContainer_t

Byte counter container.

Parameters

uint8_t	RC index
uint32_t	Byte counter

Definition at line 154 of file satellite-ut-scheduler.h.

◆ SchedContextCallback

typedef Callback<void, std::vector<Ptr<SatSchedulingObject> >&> ns3::SatUtScheduler::SchedContextCallback

Callback to get scheduling contexts from upper layer.

Parameters

vector of scheduling contexts

Definition at line 135 of file satellite-ut-scheduler.h.

◆ TxOpportunityCallback

typedef Callback<Ptr<Packet>, uint32_t, Mac48Address, uint8_t, uint32_t&, uint32_t&> ns3::SatUtScheduler::TxOpportunityCallback

Callback to notify upper layer about Tx opportunity.

Parameters

uint32_t	payload size in bytes
Mac48Address	address
uint8_t	RC index
uint32_t&	Bytes left
uint32_t&	Next min TxO

Returns: packet Packet to be transmitted to PHY

Definition at line 147 of file satellite-ut-scheduler.h.

Member Enumeration Documentation

◆ SatCompliancePolicy_t

enum ns3::SatUtScheduler::SatCompliancePolicy_t

Enum describing the wanted scheduler policy.

STRICT = UT scheduler schedules only from the given RC index LOOSE = UT scheduler may schedule also from other RC indices if needed

Enumerator
STRICT
LOOSE

Definition at line 112 of file satellite-ut-scheduler.h.

Constructor & Destructor Documentation

◆ SatUtScheduler() [1/2]

ns3::SatUtScheduler::SatUtScheduler ( )

Default constructor.

Definition at line 70 of file satellite-ut-scheduler.cc.

◆ SatUtScheduler() [2/2]

ns3::SatUtScheduler::SatUtScheduler ( Ptr< SatLowerLayerServiceConf > lls )

Used constructor.

Parameters

lls	Lower layer service conf

Definition at line 80 of file satellite-ut-scheduler.cc.

References m_llsConf, m_rcIndices, m_utScheduledByteCounters, and ns3::SatEnums::NUM_FIDS.

◆ ~SatUtScheduler()

ns3::SatUtScheduler::~SatUtScheduler ( )

virtual

Destructor.

Definition at line 100 of file satellite-ut-scheduler.cc.

Member Function Documentation

◆ DoDispose()

void ns3::SatUtScheduler::DoDispose ( void )

virtual

Dispose of SatUtScheduler.

Definition at line 106 of file satellite-ut-scheduler.cc.

References m_llsConf, m_nodeInfo, m_schedContextCallback, and m_txOpportunityCallback.

◆ DoScheduling()

void ns3::SatUtScheduler::DoScheduling	(	std::vector< Ptr< Packet >> &	packets,
		uint32_t	payloadBytes,
		SatTimeSlotConf::SatTimeSlotType_t	type,
		uint8_t	rcIndex,
		SatCompliancePolicy_t	policy
	)

UT scheduling is responsible of selecting with which RC index to use when requesting packets from higher layer.

If RC index is set, then it just utilizes it.

Parameters

packets	Vector of packets to be sent in a time slot
payloadBytes	Maximum payload of a time slot
type	Time slot type
rcIndex	RC index
policy	Compliance policy of the scheduling process

Returns: Ptr<Packet> Packet fetched from higher layer

Definition at line 134 of file satellite-ut-scheduler.cc.

References ns3::SatEnums::CONTROL_FID, DoSchedulingForRcIndex(), GetPrioritizedRcIndexOrder(), LOOSE, m_prioritizeControl, m_utScheduledByteCounters, ns3::SatTimeSlotConf::SLOT_TYPE_C, and ns3::SatTimeSlotConf::SLOT_TYPE_TRC.

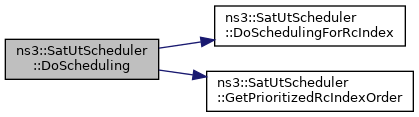

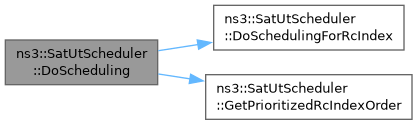

Here is the call graph for this function:

◆ DoSchedulingForRcIndex()

uint32_t ns3::SatUtScheduler::DoSchedulingForRcIndex	(	std::vector< Ptr< Packet >> &	packets,
		uint32_t &	payloadBytes,
		uint8_t	rcIndex
	)

private

Do scheduling for a given RC index.

Parameters

packets	Reference to a vector of packets to be sent
payloadBytes	Payload bytes available for this time slot
rcIndex	RC index to be scheduled

Returns: Scheduled bytes

Definition at line 202 of file satellite-ut-scheduler.cc.

References ns3::SatEnums::CONTROL_FID, m_framePduHeaderSizeInBytes, m_nodeInfo, and m_txOpportunityCallback.

Referenced by DoScheduling().

Here is the caller graph for this function:

◆ GetInstanceTypeId()

TypeId ns3::SatUtScheduler::GetInstanceTypeId ( void ) const

virtual

Derived from Object.

Definition at line 63 of file satellite-ut-scheduler.cc.

References GetTypeId().

Here is the call graph for this function:

◆ GetPrioritizedRcIndexOrder()

std::vector< uint8_t > ns3::SatUtScheduler::GetPrioritizedRcIndexOrder ( )

private

Get a prioritized order of the available RC indices for LOOSE policy UT scheduling.

Returns: Vector of RC indices

Definition at line 263 of file satellite-ut-scheduler.cc.

References m_rcIndices, and m_utScheduledByteCounters.

Referenced by DoScheduling().

Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::SatUtScheduler::GetTypeId ( void )

static

Derived from Object.

Definition at line 43 of file satellite-ut-scheduler.cc.

References m_framePduHeaderSizeInBytes, and m_prioritizeControl.

Referenced by GetInstanceTypeId().

Here is the caller graph for this function:

◆ SetNodeInfo()

void ns3::SatUtScheduler::SetNodeInfo ( Ptr< SatNodeInfo > nodeInfo )

virtual

Set the node info.

Parameters

nodeInfo containing node specific information

Definition at line 255 of file satellite-ut-scheduler.cc.

References m_nodeInfo.

◆ SetSchedContextCallback()

void ns3::SatUtScheduler::SetSchedContextCallback ( SatUtScheduler::SchedContextCallback cb )

Method to set Tx opportunity callback.

Parameters

cb	callback to invoke whenever a packet has been received and must be forwarded to the higher layers.

Definition at line 119 of file satellite-ut-scheduler.cc.

References m_schedContextCallback.

◆ SetTxOpportunityCallback()

void ns3::SatUtScheduler::SetTxOpportunityCallback ( SatUtScheduler::TxOpportunityCallback cb )

Method to set Tx opportunity callback.

Parameters

cb	callback to invoke whenever a packet has been received and must be forwarded to the higher layers.

Definition at line 126 of file satellite-ut-scheduler.cc.

References m_txOpportunityCallback.

Member Data Documentation

◆ m_framePduHeaderSizeInBytes

uint32_t ns3::SatUtScheduler::m_framePduHeaderSizeInBytes

private

Frame PDU header size.

Frame PDU

Definition at line 239 of file satellite-ut-scheduler.h.

Referenced by DoSchedulingForRcIndex(), and GetTypeId().

◆ m_llsConf

Ptr<SatLowerLayerServiceConf> ns3::SatUtScheduler::m_llsConf

private

The configured lower layer service configuration for this UT MAC.

Definition at line 228 of file satellite-ut-scheduler.h.

Referenced by SatUtScheduler(), and DoDispose().

◆ m_nodeInfo

Ptr<SatNodeInfo> ns3::SatUtScheduler::m_nodeInfo

private

Node information.

Definition at line 244 of file satellite-ut-scheduler.h.

Referenced by DoDispose(), DoSchedulingForRcIndex(), and SetNodeInfo().

◆ m_prioritizeControl

bool ns3::SatUtScheduler::m_prioritizeControl

private

Strictly prioritize the control message scheduling regardless of the time slot information given from MAC layer.

Definition at line 234 of file satellite-ut-scheduler.h.

Referenced by DoScheduling(), and GetTypeId().

◆ m_rcIndices

std::vector<uint8_t> ns3::SatUtScheduler::m_rcIndices

private

Available RC indices for scheduling.

Definition at line 257 of file satellite-ut-scheduler.h.

Referenced by SatUtScheduler(), and GetPrioritizedRcIndexOrder().

◆ m_schedContextCallback

SatUtScheduler::SchedContextCallback ns3::SatUtScheduler::m_schedContextCallback

private

The scheduling context getter callback.

Definition at line 216 of file satellite-ut-scheduler.h.

Referenced by DoDispose(), and SetSchedContextCallback().

◆ m_txOpportunityCallback

SatUtScheduler::TxOpportunityCallback ns3::SatUtScheduler::m_txOpportunityCallback

private

Callback to notify the txOpportunity to upper layer Returns a packet Attributes: payload in bytes.

Definition at line 223 of file satellite-ut-scheduler.h.

Referenced by DoDispose(), DoSchedulingForRcIndex(), and SetTxOpportunityCallback().

◆ m_utScheduledByteCounters

ByteCounterContainer_t ns3::SatUtScheduler::m_utScheduledByteCounters

private

Byte counters for RC indices.

The counters are updated, when UT has decided to schedule some other RC index than the given one. Reason for this might be that the given RC index queue is empty or does not contain enough bytes.

Definition at line 252 of file satellite-ut-scheduler.h.

Referenced by SatUtScheduler(), DoScheduling(), and GetPrioritizedRcIndexOrder().

The documentation for this class was generated from the following files:

/builds/sns3/satellite/satellite/model/satellite-ut-scheduler.h
/builds/sns3/satellite/satellite/model/satellite-ut-scheduler.cc

Public Types

Public Member Functions

Static Public Member Functions

Private Member Functions

Private Attributes

Detailed Description

Member Typedef Documentation

◆ ByteCounterContainer_t

◆ SchedContextCallback

◆ TxOpportunityCallback

Member Enumeration Documentation

◆ SatCompliancePolicy_t

Constructor & Destructor Documentation

◆ SatUtScheduler() [1/2]

◆ SatUtScheduler() [2/2]

◆ ~SatUtScheduler()

Member Function Documentation

◆ DoDispose()

◆ DoScheduling()

◆ DoSchedulingForRcIndex()

◆ GetInstanceTypeId()

◆ GetPrioritizedRcIndexOrder()

◆ GetTypeId()

◆ SetNodeInfo()

◆ SetSchedContextCallback()

◆ SetTxOpportunityCallback()

Member Data Documentation

◆ m_framePduHeaderSizeInBytes

◆ m_llsConf

◆ m_nodeInfo

◆ m_prioritizeControl

◆ m_rcIndices

◆ m_schedContextCallback

◆ m_txOpportunityCallback

◆ m_utScheduledByteCounters
