ns3::SatSimpleChannel Class Reference

The satellite simple channel, for satellite public and backbone networks. More...

#include "satellite-simple-channel.h"

Inheritance diagram for ns3::SatSimpleChannel:

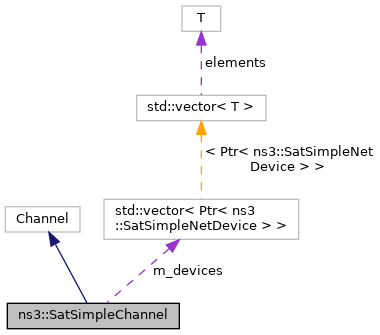

Collaboration diagram for ns3::SatSimpleChannel:

Public Member Functions
	SatSimpleChannel ()
	Default constructor. More...
virtual void	Add (Ptr< SatSimpleNetDevice > device)
	Attached a net device to the channel. More...
virtual Ptr< NetDevice >	GetDevice (std::size_t i) const
virtual std::size_t	GetNDevices (void) const
virtual void	Send (Ptr< Packet > p, uint16_t protocol, Mac48Address to, Mac48Address from, Ptr< SatSimpleNetDevice > sender)
	A packet is sent by a net device. More...

Static Public Member Functions
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Attributes
std::vector< Ptr< SatSimpleNetDevice > >	m_devices

Detailed Description

The satellite simple channel, for satellite public and backbone networks.

Based on ns-3 SimpleChannel (implementation is identically same than in SimpleChannel, but needed to re-implemented in order to use by SatSimpleNetDevice)

Definition at line 40 of file satellite-simple-channel.h.

Constructor & Destructor Documentation

SatSimpleChannel()

ns3::SatSimpleChannel::SatSimpleChannel

(

)

Default constructor.

Definition at line 45 of file satellite-simple-channel.cc.

Member Function Documentation

Add()

void ns3::SatSimpleChannel::Add ( Ptr< SatSimpleNetDevice >  device )

virtual

Attached a net device to the channel.

Parameters

device

the device to attach to the channel

Definition at line 79 of file satellite-simple-channel.cc.

References m_devices.

GetDevice()

Ptr< NetDevice > ns3::SatSimpleChannel::GetDevice ( std::size_t  i ) const

virtual

Definition at line 93 of file satellite-simple-channel.cc.

References m_devices.

GetNDevices()

std::size_t ns3::SatSimpleChannel::GetNDevices ( void  ) const

virtual

Definition at line 86 of file satellite-simple-channel.cc.

References m_devices.

GetTypeId()

TypeId ns3::SatSimpleChannel::GetTypeId ( void  )

static

Get the type ID.

Returns

the object TypeId

Definition at line 38 of file satellite-simple-channel.cc.

Send()

void ns3::SatSimpleChannel::Send ( Ptr< Packet >  p, uint16_t  protocol, Mac48Address  to, Mac48Address  from, Ptr< SatSimpleNetDevice >  sender  )

virtual

A packet is sent by a net device.

A receive event will be scheduled for all net device connected to the channel other than the net device who sent the packet

Parameters

p	packet to be sent
protocol	protocol number
to	address to send packet to
from	address the packet is coming from
sender	net device who sent the packet

Definition at line 51 of file satellite-simple-channel.cc.

References m_devices, and ns3::SatSimpleNetDevice::Receive().

Here is the call graph for this function:

Member Data Documentation

m_devices

std::vector<Ptr<SatSimpleNetDevice> > ns3::SatSimpleChannel::m_devices

private

Definition at line 84 of file satellite-simple-channel.h.

Referenced by Add(), GetDevice(), GetNDevices(), and Send().

---

The documentation for this class was generated from the following files:

• /builds/sns3/satellite/satellite/model/satellite-simple-channel.h
• /builds/sns3/satellite/satellite/model/satellite-simple-channel.cc
