ns3::SatRtnLinkTime Class Reference

SatRtnLinkTime is a singleton class initialized with superframe sequence. More...

#include "satellite-rtn-link-time.h"

Inheritance diagram for ns3::SatRtnLinkTime:

Collaboration diagram for ns3::SatRtnLinkTime:

Public Member Functions
	SatRtnLinkTime ()
	Default constructor. More...
virtual	~SatRtnLinkTime ()
	Destructor for SatRtnLinkTime. More...
uint32_t	GetCurrentSuperFrameCount (uint8_t superFrameSeqId) const
	Get currently running superframe count. More...
uint32_t	GetCurrentSuperFrameCount (uint8_t superFrameSeqId, Time timingAdvance) const
	Get superframe count for current superframe with a certain timing advance. More...
Time	GetCurrentSuperFrameStartTime (uint8_t superFrameSeqId) const
	Get currently running superframe start time. More...
Time	GetCurrentSuperFrameTxTime (uint8_t superFrameSeqId, Time timingAdvance) const
	Get superframe transmission time for current superframe with a certain timing advance. More...
uint32_t	GetNextSuperFrameCount (uint8_t superFrameSeqId) const
	Get next superframe count. More...
uint32_t	GetNextSuperFrameCount (uint8_t superFrameSeqId, Time timingAdvance) const
	Get superframe count for next superframe with a certain timing advance. More...
Time	GetNextSuperFrameStartTime (uint8_t superFrameSeqId) const
	Get next superframe start time. More...
Time	GetNextSuperFrameTxTime (uint8_t superFrameSeqId, Time timingAdvance) const
	Get superframe transmission time for next superframe with a certain timing advance. More...
Time	GetSuperFrameDuration (uint8_t superFrameSeqId) const
	Get superframe duration of a superframe sequence. More...
Time	GetSuperFrameTxTime (uint8_t superFrameSeqId, uint32_t superFrameCount, Time timingAdvance) const
	Get superframe transmission time for a UT with a certain timing advance. More...
void	Initialize (Ptr< SatSuperframeSeq > seq)
	Initialize with the superframe sequence. More...

Private Attributes
Ptr< SatSuperframeSeq >	m_superframeSeq

Detailed Description

SatRtnLinkTime is a singleton class initialized with superframe sequence.

The class holds information related to return link superframe timing related to both NCC and UT scheduling.

Definition at line 38 of file satellite-rtn-link-time.h.

Constructor & Destructor Documentation

SatRtnLinkTime()

ns3::SatRtnLinkTime::SatRtnLinkTime

(

)

Default constructor.

Definition at line 34 of file satellite-rtn-link-time.cc.

~SatRtnLinkTime()

ns3::SatRtnLinkTime::~SatRtnLinkTime ( )

virtual

Destructor for SatRtnLinkTime.

Definition at line 40 of file satellite-rtn-link-time.cc.

Member Function Documentation

GetCurrentSuperFrameCount() [1/2]

uint32_t ns3::SatRtnLinkTime::GetCurrentSuperFrameCount

(

uint8_t

superFrameSeqId

)

const

Get currently running superframe count.

Parameters

superFrameSeqId

Superframe sequence id

Returns

Superframe count

Definition at line 60 of file satellite-rtn-link-time.cc.

References m_superframeSeq.

Referenced by GetCurrentSuperFrameStartTime(), GetCurrentSuperFrameTxTime(), and GetNextSuperFrameCount().

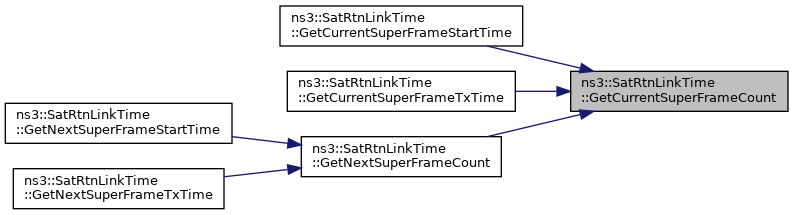

Here is the caller graph for this function:

GetCurrentSuperFrameCount() [2/2]

uint32_t ns3::SatRtnLinkTime::GetCurrentSuperFrameCount	(	uint8_t	superFrameSeqId,
		Time	timingAdvance
	)		const

Get superframe count for current superframe with a certain timing advance.

Parameters

superFrameSeqId	Superframe sequence d
timingAdvance	A propagation delay between sender and receiver

Returns

uint32_t Superframe count

Definition at line 107 of file satellite-rtn-link-time.cc.

References m_superframeSeq.

GetCurrentSuperFrameStartTime()

Time ns3::SatRtnLinkTime::GetCurrentSuperFrameStartTime

(

uint8_t

superFrameSeqId

)

const

Get currently running superframe start time.

Parameters

superFrameSeqId

Superframe sequence id

Returns

Superframe start time

Definition at line 77 of file satellite-rtn-link-time.cc.

References GetCurrentSuperFrameCount(), and m_superframeSeq.

Here is the call graph for this function:

GetCurrentSuperFrameTxTime()

Time ns3::SatRtnLinkTime::GetCurrentSuperFrameTxTime	(	uint8_t	superFrameSeqId,
		Time	timingAdvance
	)		const

Get superframe transmission time for current superframe with a certain timing advance.

Parameters

superFrameSeqId	Superframe sequence d
timingAdvance	A propagation delay between sender and receiver

Returns

Superframe transmission time

Definition at line 129 of file satellite-rtn-link-time.cc.

References GetCurrentSuperFrameCount(), and m_superframeSeq.

Here is the call graph for this function:

GetNextSuperFrameCount() [1/2]

uint32_t ns3::SatRtnLinkTime::GetNextSuperFrameCount

(

uint8_t

superFrameSeqId

)

const

Get next superframe count.

Parameters

superFrameSeqId

Superframe sequence id

Returns

Superframe count

Definition at line 69 of file satellite-rtn-link-time.cc.

References GetCurrentSuperFrameCount().

Referenced by GetNextSuperFrameStartTime(), and GetNextSuperFrameTxTime().

Here is the call graph for this function:

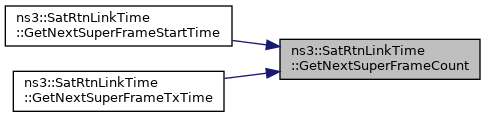

Here is the caller graph for this function:

GetNextSuperFrameCount() [2/2]

uint32_t ns3::SatRtnLinkTime::GetNextSuperFrameCount	(	uint8_t	superFrameSeqId,
		Time	timingAdvance
	)		const

Get superframe count for next superframe with a certain timing advance.

Parameters

superFrameSeqId	Superframe sequence d
timingAdvance	A propagation delay between sender and receiver

Returns

Superframe count

Definition at line 119 of file satellite-rtn-link-time.cc.

References GetCurrentSuperFrameCount().

Here is the call graph for this function:

GetNextSuperFrameStartTime()

Time ns3::SatRtnLinkTime::GetNextSuperFrameStartTime

(

uint8_t

superFrameSeqId

)

const

Get next superframe start time.

Parameters

superFrameSeqId

Superframe sequence id

Returns

Superframe start time

Definition at line 86 of file satellite-rtn-link-time.cc.

References GetNextSuperFrameCount(), and m_superframeSeq.

Here is the call graph for this function:

GetNextSuperFrameTxTime()

Time ns3::SatRtnLinkTime::GetNextSuperFrameTxTime	(	uint8_t	superFrameSeqId,
		Time	timingAdvance
	)		const

Get superframe transmission time for next superframe with a certain timing advance.

Parameters

superFrameSeqId	Superframe sequence d
timingAdvance	A propagation delay between sender and receiver

Returns

Superframe transmission time

Definition at line 142 of file satellite-rtn-link-time.cc.

References GetNextSuperFrameCount(), and m_superframeSeq.

Here is the call graph for this function:

GetSuperFrameDuration()

Time ns3::SatRtnLinkTime::GetSuperFrameDuration

(

uint8_t

superFrameSeqId

)

const

Get superframe duration of a superframe sequence.

Parameters

superFrameSeqId

Superframe sequence id

Returns

Superframe duration in Time

Definition at line 52 of file satellite-rtn-link-time.cc.

References m_superframeSeq.

GetSuperFrameTxTime()

Time ns3::SatRtnLinkTime::GetSuperFrameTxTime	(	uint8_t	superFrameSeqId,
		uint32_t	superFrameCount,
		Time	timingAdvance
	)		const

Get superframe transmission time for a UT with a certain timing advance.

Parameters

superFrameSeqId	Superframe sequence d
superFrameCount	Superframe count
timingAdvance	A propagation delay between sender and receiver

Returns

Superframe transmission time

Definition at line 95 of file satellite-rtn-link-time.cc.

References m_superframeSeq.

Initialize()

void ns3::SatRtnLinkTime::Initialize

(

Ptr< SatSuperframeSeq >

seq

)

Initialize with the superframe sequence.

Parameters

seq	Superframe sequence

Definition at line 45 of file satellite-rtn-link-time.cc.

References m_superframeSeq.

Member Data Documentation

m_superframeSeq

Ptr<SatSuperframeSeq> ns3::SatRtnLinkTime::m_superframeSeq

private

Definition at line 136 of file satellite-rtn-link-time.h.

Referenced by GetCurrentSuperFrameCount(), GetCurrentSuperFrameStartTime(), GetCurrentSuperFrameTxTime(), GetNextSuperFrameStartTime(), GetNextSuperFrameTxTime(), GetSuperFrameDuration(), GetSuperFrameTxTime(), and Initialize().

---

The documentation for this class was generated from the following files:

• /builds/sns3/satellite/satellite/model/satellite-rtn-link-time.h
• /builds/sns3/satellite/satellite/model/satellite-rtn-link-time.cc
