Class for Loo's model fader. More...

#include "satellite-loo-model.h"

Inheritance diagram for ns3::SatLooModel:

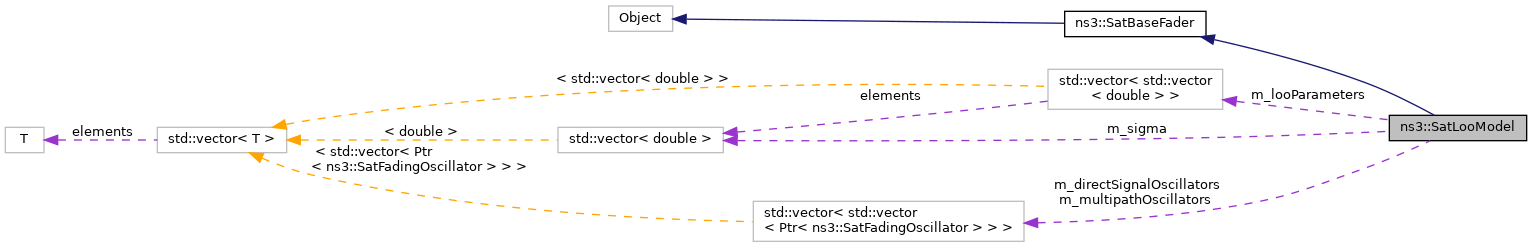

Collaboration diagram for ns3::SatLooModel:

Public Member Functions
	SatLooModel ()
	Constructor. More...

	SatLooModel (Ptr< SatLooConf > looConf, uint32_t numOfStates, uint32_t initialSet, uint32_t initialState)
	Constructor. More...

	~SatLooModel ()
	Destructor. More...

void	DoDispose ()
	Do needed dispose actions. More...

double	GetChannelGain ()
	Function for returning the channel gain. More...

double	GetChannelGainDb ()
	Function for returning the channel gain in dB. More...

void	UpdateParameters (uint32_t set, uint32_t state)
	Function for updating the parameter set and state. More...

Public Member Functions inherited from ns3::SatBaseFader
	SatBaseFader ()
	Constructor. More...

virtual	~SatBaseFader ()
	Destructor. More...

Static Public Member Functions
static TypeId	GetTypeId (void)
	NS-3 function for type id. More...

Static Public Member Functions inherited from ns3::SatBaseFader
static TypeId	GetTypeId (void)
	NS-3 type id function. More...

Private Member Functions
void	CalculateSigma ()
	Function for calculating sigma for different states. More...

void	ChangeSet (uint32_t newSet, uint32_t newState)
	Function for setting the parameter set and state. More...

void	ChangeState (uint32_t newState)
	Function for setting the state. More...

void	ConstructDirectSignalOscillators ()
	Function for constructing direct signal oscillators. More...

void	ConstructMultipathOscillators ()
	Function for constructing multipath oscillators. More...

std::complex< double >	GetOscillatorComplexSum (std::vector< Ptr< SatFadingOscillator >> oscillator, double timeInSeconds)
	Function for calculating oscillator complex sum. More...

std::complex< double >	GetOscillatorCosineWaveSum (std::vector< Ptr< SatFadingOscillator >> oscillator, double timeInSeconds)
	Function for calculating cosine wave oscillator complex sum. More...

void	Reset ()
	Clear used variables. More...

Private Attributes
uint32_t	m_currentSet
	Current parameter set. More...

uint32_t	m_currentState
	Current state. More...

std::vector< std::vector< Ptr< SatFadingOscillator > > >	m_directSignalOscillators
	Direct signal oscillators. More...

Ptr< SatLooConf >	m_looConf
	Loo's model configuration object. More...

std::vector< std::vector< double > >	m_looParameters
	Loo's model parameters. More...

std::vector< std::vector< Ptr< SatFadingOscillator > > >	m_multipathOscillators
	Multipath oscillators. More...

Ptr< NormalRandomVariable >	m_normalRandomVariable
	Normal distribution random variable. More...

uint32_t	m_numOfStates
	Number of states. More...

std::vector< double >	m_sigma
	Multipath power converted to linear units. More...

Ptr< UniformRandomVariable >	m_uniformVariable
	Uniform distribution random variable. More...

Detailed Description

Class for Loo's model fader.

The class implements Loo's model fader for the Markov -based fading model. The model uses multiple oscillators to form the fading (inspired by Jakes model).

Definition at line 44 of file satellite-loo-model.h.

Constructor & Destructor Documentation

◆ SatLooModel() [1/2]

ns3::SatLooModel::SatLooModel ( )

Constructor.

Definition at line 46 of file satellite-loo-model.cc.

◆ SatLooModel() [2/2]

ns3::SatLooModel::SatLooModel	(	Ptr< SatLooConf >	looConf,
		uint32_t	numOfStates,
		uint32_t	initialSet,
		uint32_t	initialState
	)

Constructor.

Parameters

looConf	Loo's model configuration
numOfStates	number of states
initialSet	initial parameter set
initialState	initial state

initialize random number generators

initialize parameters for this set and state, construct oscillators

Definition at line 59 of file satellite-loo-model.cc.

References ChangeSet(), m_currentSet, m_currentState, m_normalRandomVariable, and m_uniformVariable.

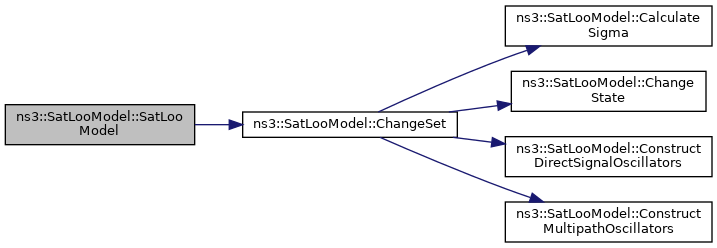

Here is the call graph for this function:

◆ ~SatLooModel()

ns3::SatLooModel::~SatLooModel ( )

Destructor.

Definition at line 82 of file satellite-loo-model.cc.

References Reset().

Here is the call graph for this function:

Member Function Documentation

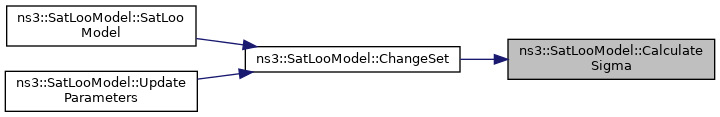

◆ CalculateSigma()

void ns3::SatLooModel::CalculateSigma ( )

private

Function for calculating sigma for different states.

Definition at line 338 of file satellite-loo-model.cc.

References m_looParameters, m_numOfStates, and m_sigma.

Referenced by ChangeSet().

Here is the caller graph for this function:

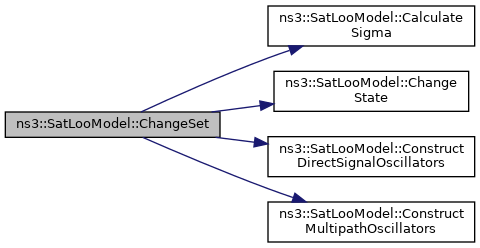

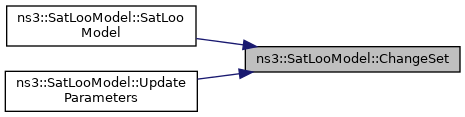

◆ ChangeSet()

void ns3::SatLooModel::ChangeSet	(	uint32_t	newSet,
		uint32_t	newState
	)

private

Function for setting the parameter set and state.

Parameters

newSet	new set
newState	new state

Definition at line 288 of file satellite-loo-model.cc.

References CalculateSigma(), ChangeState(), ConstructDirectSignalOscillators(), ConstructMultipathOscillators(), m_currentSet, m_directSignalOscillators, m_looConf, m_looParameters, m_multipathOscillators, m_numOfStates, and m_sigma.

Referenced by SatLooModel(), and UpdateParameters().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ChangeState()

void ns3::SatLooModel::ChangeState ( uint32_t newState )

private

Function for setting the state.

Parameters

newState new state

Definition at line 330 of file satellite-loo-model.cc.

References m_currentState.

Referenced by ChangeSet(), and UpdateParameters().

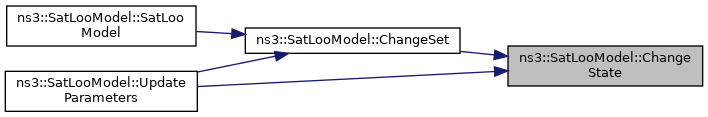

Here is the caller graph for this function:

◆ ConstructDirectSignalOscillators()

void ns3::SatLooModel::ConstructDirectSignalOscillators ( )

private

Function for constructing direct signal oscillators.

Initial phase is common for all oscillators:

Theta is common for all oscillators:

Rotation speed 1a. Initiate
$\alpha_n = \frac{2\pi n - \pi + \theta}{4M}, n=1, 2, \ldots, M$
, n is oscillatorNumber, M is m_nOscillators

1b. Initiate rotation speed:

Initiate amplitude:

TODO: Direct signal amplitude calculations will need to be verified, especially the target std. deviation with combined oscillators. Currently the std. dev is applied to individual oscillators. Combining these averages these and may result in too small std. dev with the combined value.

Construct oscillator:

Definition at line 136 of file satellite-loo-model.cc.

References m_directSignalOscillators, m_looParameters, m_normalRandomVariable, m_numOfStates, and m_uniformVariable.

Referenced by ChangeSet().

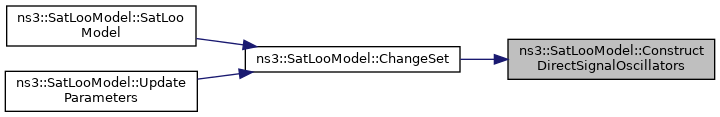

Here is the caller graph for this function:

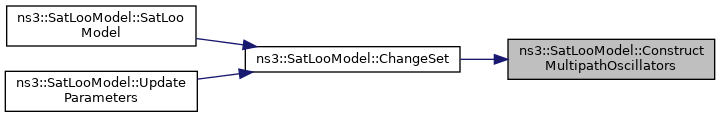

◆ ConstructMultipathOscillators()

void ns3::SatLooModel::ConstructMultipathOscillators ( )

private

Function for constructing multipath oscillators.

Initial phase is common for all oscillators:

Theta is common for all oscillators:

Rotation speed 1a. Initiate
$\alpha_n = \frac{2\pi n - \pi + \theta}{4M}, n=1, 2, \ldots, M$
, n is oscillatorNumber, M is m_nOscillators

1b. Initiate rotation speed:

Initiate complex amplitude:
Construct oscillator:

Definition at line 176 of file satellite-loo-model.cc.

References m_looParameters, m_multipathOscillators, m_normalRandomVariable, m_numOfStates, and m_uniformVariable.

Referenced by ChangeSet().

Here is the caller graph for this function:

◆ DoDispose()

void ns3::SatLooModel::DoDispose ( void )

Do needed dispose actions.

Definition at line 90 of file satellite-loo-model.cc.

References Reset().

Here is the call graph for this function:

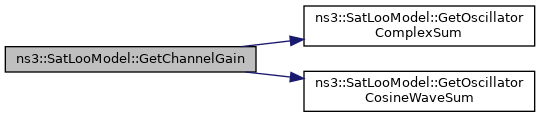

◆ GetChannelGain()

double ns3::SatLooModel::GetChannelGain ( void )

virtual

Function for returning the channel gain.

Returns: channel gain

Direct signal

Multipath

Combining

Implements ns3::SatBaseFader.

Definition at line 219 of file satellite-loo-model.cc.

References GetOscillatorComplexSum(), GetOscillatorCosineWaveSum(), m_currentState, m_directSignalOscillators, m_multipathOscillators, and m_sigma.

Referenced by GetChannelGainDb().

Here is the call graph for this function:

Here is the caller graph for this function:

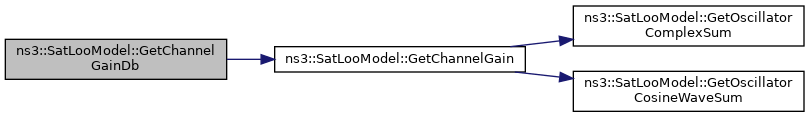

◆ GetChannelGainDb()

double ns3::SatLooModel::GetChannelGainDb ( void )

virtual

Function for returning the channel gain in dB.

Returns: channel gain in dB

Implements ns3::SatBaseFader.

Definition at line 209 of file satellite-loo-model.cc.

References GetChannelGain().

Here is the call graph for this function:

◆ GetOscillatorComplexSum()

std::complex< double > ns3::SatLooModel::GetOscillatorComplexSum	(	std::vector< Ptr< SatFadingOscillator >>	oscillator,
		double	timeInSeconds
	)

private

Function for calculating oscillator complex sum.

Parameters

oscillator	oscillator
timeInSeconds	current time in seconds

Returns: sum

Definition at line 256 of file satellite-loo-model.cc.

Referenced by GetChannelGain().

Here is the caller graph for this function:

◆ GetOscillatorCosineWaveSum()

std::complex< double > ns3::SatLooModel::GetOscillatorCosineWaveSum	(	std::vector< Ptr< SatFadingOscillator >>	oscillator,
		double	timeInSeconds
	)

private

Function for calculating cosine wave oscillator complex sum.

Parameters

oscillator	oscillator
timeInSeconds	current time in seconds

Returns: sum

Definition at line 240 of file satellite-loo-model.cc.

Referenced by GetChannelGain().

Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::SatLooModel::GetTypeId ( void )

static

NS-3 function for type id.

Returns: type id

Definition at line 39 of file satellite-loo-model.cc.

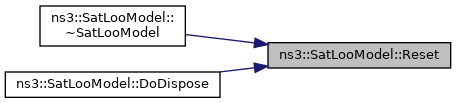

◆ Reset()

void ns3::SatLooModel::Reset ( void )

private

Clear used variables.

Definition at line 99 of file satellite-loo-model.cc.

References m_directSignalOscillators, m_looConf, m_looParameters, m_multipathOscillators, m_normalRandomVariable, m_numOfStates, m_sigma, and m_uniformVariable.

Referenced by ~SatLooModel(), and DoDispose().

Here is the caller graph for this function:

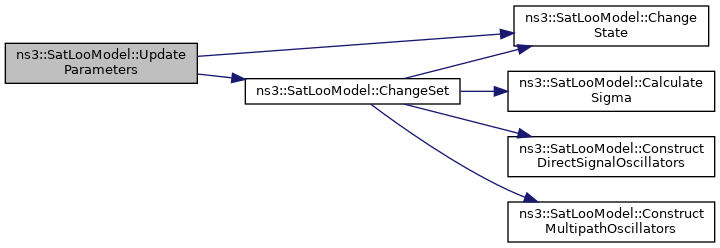

◆ UpdateParameters()

void ns3::SatLooModel::UpdateParameters	(	uint32_t	set,
		uint32_t	state
	)

virtual

Function for updating the parameter set and state.

Parameters

set	parameter set
state	state

Implements ns3::SatBaseFader.

Definition at line 272 of file satellite-loo-model.cc.

References ChangeSet(), ChangeState(), m_currentSet, and m_currentState.

Here is the call graph for this function:

Member Data Documentation

◆ m_currentSet

uint32_t ns3::SatLooModel::m_currentSet

private

Current parameter set.

Definition at line 108 of file satellite-loo-model.h.

Referenced by SatLooModel(), ChangeSet(), and UpdateParameters().

◆ m_currentState

uint32_t ns3::SatLooModel::m_currentState

private

Current state.

Definition at line 113 of file satellite-loo-model.h.

Referenced by SatLooModel(), ChangeState(), GetChannelGain(), and UpdateParameters().

◆ m_directSignalOscillators

std::vector<std::vector<Ptr<SatFadingOscillator> > > ns3::SatLooModel::m_directSignalOscillators

private

Direct signal oscillators.

Definition at line 143 of file satellite-loo-model.h.

Referenced by ChangeSet(), ConstructDirectSignalOscillators(), GetChannelGain(), and Reset().

◆ m_looConf

Ptr<SatLooConf> ns3::SatLooModel::m_looConf

private

Loo's model configuration object.

Definition at line 123 of file satellite-loo-model.h.

Referenced by ChangeSet(), and Reset().

◆ m_looParameters

std::vector<std::vector<double> > ns3::SatLooModel::m_looParameters

private

Loo's model parameters.

Definition at line 128 of file satellite-loo-model.h.

Referenced by CalculateSigma(), ChangeSet(), ConstructDirectSignalOscillators(), ConstructMultipathOscillators(), and Reset().

◆ m_multipathOscillators

std::vector<std::vector<Ptr<SatFadingOscillator> > > ns3::SatLooModel::m_multipathOscillators

private

Multipath oscillators.

Definition at line 148 of file satellite-loo-model.h.

Referenced by ChangeSet(), ConstructMultipathOscillators(), GetChannelGain(), and Reset().

◆ m_normalRandomVariable

Ptr<NormalRandomVariable> ns3::SatLooModel::m_normalRandomVariable

private

Normal distribution random variable.

Definition at line 133 of file satellite-loo-model.h.

Referenced by SatLooModel(), ConstructDirectSignalOscillators(), ConstructMultipathOscillators(), and Reset().

◆ m_numOfStates

uint32_t ns3::SatLooModel::m_numOfStates

private

Number of states.

Definition at line 103 of file satellite-loo-model.h.

Referenced by CalculateSigma(), ChangeSet(), ConstructDirectSignalOscillators(), ConstructMultipathOscillators(), and Reset().

◆ m_sigma

std::vector<double> ns3::SatLooModel::m_sigma

private

Multipath power converted to linear units.

Definition at line 118 of file satellite-loo-model.h.

Referenced by CalculateSigma(), ChangeSet(), GetChannelGain(), and Reset().

◆ m_uniformVariable

Ptr<UniformRandomVariable> ns3::SatLooModel::m_uniformVariable

private

Uniform distribution random variable.

Definition at line 138 of file satellite-loo-model.h.

Referenced by SatLooModel(), ConstructDirectSignalOscillators(), ConstructMultipathOscillators(), and Reset().

The documentation for this class was generated from the following files:

/builds/sns3/satellite/satellite/model/satellite-loo-model.h
/builds/sns3/satellite/satellite/model/satellite-loo-model.cc

Public Member Functions

Static Public Member Functions

Private Member Functions

Private Attributes

Detailed Description

Constructor & Destructor Documentation

◆ SatLooModel() [1/2]

◆ SatLooModel() [2/2]

◆ ~SatLooModel()

Member Function Documentation

◆ CalculateSigma()

◆ ChangeSet()

◆ ChangeState()

◆ ConstructDirectSignalOscillators()

◆ ConstructMultipathOscillators()

◆ DoDispose()

◆ GetChannelGain()

◆ GetChannelGainDb()

◆ GetOscillatorComplexSum()

◆ GetOscillatorCosineWaveSum()

◆ GetTypeId()

◆ Reset()

◆ UpdateParameters()

Member Data Documentation

◆ m_currentSet

◆ m_currentState

◆ m_directSignalOscillators

◆ m_looConf

◆ m_looParameters

◆ m_multipathOscillators

◆ m_normalRandomVariable

◆ m_numOfStates

◆ m_sigma

◆ m_uniformVariable
