Class for ID-mapper. More...

#include "satellite-id-mapper.h"

Inheritance diagram for ns3::SatIdMapper:

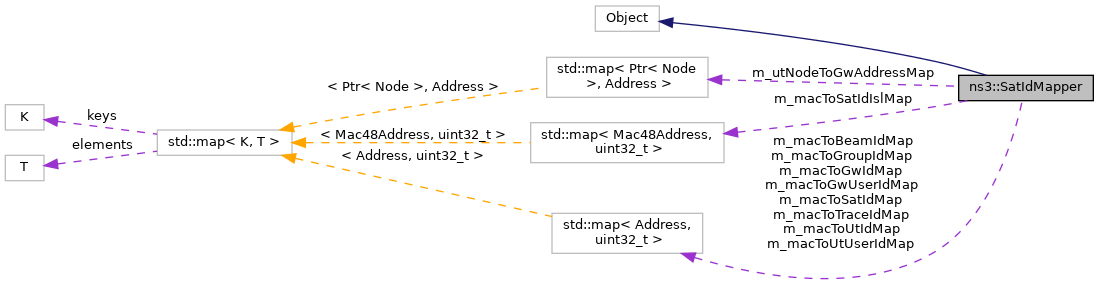

Collaboration diagram for ns3::SatIdMapper:

Public Member Functions
	SatIdMapper ()
	Constructor. More...

	~SatIdMapper ()
	Destructor. More...

void	AttachMacToBeamId (Address mac, uint32_t beamId)
	Attach MAC address to the beam ID maps. More...

void	AttachMacToGroupId (Address mac, uint32_t groupId)
	Attach MAC address to the group ID maps. More...

void	AttachMacToGwId (Address mac, uint32_t gwId)
	Attach MAC address to the GW ID maps. More...

uint32_t	AttachMacToGwUserId (Address mac)
	Attach MAC address to the GW user ID maps and give it a running GW user ID (starting from 1) More...

void	AttachMacToSatId (Address mac, uint32_t satId)
	Attach MAC address to the SAT ID maps and give it a running SAT ID (starting from 1) More...

void	AttachMacToSatIdIsl (Mac48Address mac, uint32_t satId)
	Attach GW/UT MAC address to the satellite this node is connected. More...

uint32_t	AttachMacToTraceId (Address mac)
	Attach MAC address to the Trace ID maps and give it a running trace ID (starting from 1) More...

uint32_t	AttachMacToUtId (Address mac)
	Attach MAC address to the UT ID maps and give it a running UT ID (starting from 1) More...

uint32_t	AttachMacToUtUserId (Address mac)
	Attach MAC address to the UT user ID maps and give it a running UT user ID (starting from 1) More...

void	DoDispose ()
	Do needed dispose actions. More...

void	EnableMapPrint (bool enableMapPrint)
	Function for enabling the map prints. More...

int32_t	GetBeamIdWithMac (Address mac) const
	Function for getting the beam ID with MAC. More...

int32_t	GetGroupIdWithMac (Address mac) const
	Function for getting the group ID with MAC. More...

int32_t	GetGwIdWithMac (Address mac) const
	Function for getting the GW ID with MAC. More...

Address	GetGwMacWithNode (Ptr< Node > gwNode) const

int32_t	GetGwUserIdWithMac (Address mac) const
	Function for getting the GW user ID with MAC. More...

std::string	GetMacInfo (Address mac) const
	Function for getting the IDs related to a MAC address in an info string. More...

int32_t	GetSatIdWithMac (Address mac) const
	Function for getting the SAT ID with MAC. More...

int32_t	GetSatIdWithMacIsl (Mac48Address mac) const
	Function for getting the satellite ID connected to a GW/UT MAC address. More...

Address	GetSatMacWithNode (Ptr< Node > satNode) const

int32_t	GetTraceIdWithMac (Address mac) const
	Function for getting the trace ID with MAC. More...

int32_t	GetUtIdWithMac (Address mac) const
	Function for getting the UT ID with MAC. More...

Address	GetUtMacWithNode (Ptr< Node > utNode) const

int32_t	GetUtUserIdWithMac (Address mac) const
	Function for getting the UT user ID with MAC. More...

Address	GetUtUserMacWithNode (Ptr< Node > utUserNode) const

void	PrintTraceMap () const
	Function for printing out the trace map. More...

void	RemoveMacToSatIdIsl (Mac48Address mac)
	Remove GW/UT MAC address to the satellite this node is connected. More...

void	Reset ()
	Function for resetting the variables. More...

void	ShowIslMap ()
	Print the map GW/UT address to satellite ID. More...

Static Public Member Functions
static TypeId	GetTypeId (void)
	NS-3 type id function. More...

Private Attributes
bool	m_enableMapPrint
	Is map printing enabled or not. More...

uint32_t	m_gwUserIdIndex
	Running GW user index number. More...

std::map< Address, uint32_t >	m_macToBeamIdMap
	Map for MAC to beam ID conversion. More...

std::map< Address, uint32_t >	m_macToGroupIdMap
	Map for MAC to group ID conversion. More...

std::map< Address, uint32_t >	m_macToGwIdMap
	Map for MAC to GW ID conversion. More...

std::map< Address, uint32_t >	m_macToGwUserIdMap
	Map for MAC to GW user ID conversion. More...

std::map< Mac48Address, uint32_t >	m_macToSatIdIslMap
	Map for GW/UT MAC to associated SAT ID conversion. More...

std::map< Address, uint32_t >	m_macToSatIdMap
	Map for MAC to SAT ID conversion. More...

std::map< Address, uint32_t >	m_macToTraceIdMap
	Map for MAC to trace ID conversion. More...

std::map< Address, uint32_t >	m_macToUtIdMap
	Map for MAC to UT ID conversion. More...

std::map< Address, uint32_t >	m_macToUtUserIdMap
	Map for MAC to UT user ID conversion. More...

uint32_t	m_traceIdIndex
	Running trace index number. More...

uint32_t	m_utIdIndex
	Running UT index number. More...

uint32_t	m_utUserIdIndex
	Running UT user index number. More...

Detailed Description

Class for ID-mapper.

The class enables mapping of a specific MAC-address to UT/GW/user/beam/group ID. These IDs can be obtained with MAC-address by using the provided functions. It is also possible to obtain the MAC-address with node.

Definition at line 43 of file satellite-id-mapper.h.

Constructor & Destructor Documentation

◆ SatIdMapper()

ns3::SatIdMapper::SatIdMapper ( )

Constructor.

Definition at line 47 of file satellite-id-mapper.cc.

◆ ~SatIdMapper()

ns3::SatIdMapper::~SatIdMapper ( )

Destructor.

Definition at line 57 of file satellite-id-mapper.cc.

References Reset().

Here is the call graph for this function:

Member Function Documentation

◆ AttachMacToBeamId()

void ns3::SatIdMapper::AttachMacToBeamId	(	Address	mac,
		uint32_t	beamId
	)

Attach MAC address to the beam ID maps.

Parameters

mac	MAC address
beamId	beam ID

Definition at line 247 of file satellite-id-mapper.cc.

References m_macToBeamIdMap.

◆ AttachMacToGroupId()

void ns3::SatIdMapper::AttachMacToGroupId	(	Address	mac,
		uint32_t	groupId
	)

Attach MAC address to the group ID maps.

Parameters

mac	MAC address
groupId	group ID

Definition at line 263 of file satellite-id-mapper.cc.

References m_macToGroupIdMap.

◆ AttachMacToGwId()

void ns3::SatIdMapper::AttachMacToGwId	(	Address	mac,
		uint32_t	gwId
	)

Attach MAC address to the GW ID maps.

Parameters

mac	MAC address
gwId	GW ID

Definition at line 279 of file satellite-id-mapper.cc.

References m_macToGwIdMap.

◆ AttachMacToGwUserId()

uint32_t ns3::SatIdMapper::AttachMacToGwUserId ( Address mac )

Attach MAC address to the GW user ID maps and give it a running GW user ID (starting from 1)

Parameters

mac	MAC address

Returns: the GW user ID assigned to the given MAC address

Definition at line 295 of file satellite-id-mapper.cc.

References m_gwUserIdIndex, and m_macToGwUserIdMap.

◆ AttachMacToSatId()

void ns3::SatIdMapper::AttachMacToSatId	(	Address	mac,
		uint32_t	satId
	)

Attach MAC address to the SAT ID maps and give it a running SAT ID (starting from 1)

Parameters

mac	MAC address
satId	satellite ID

Definition at line 231 of file satellite-id-mapper.cc.

References m_macToSatIdMap.

◆ AttachMacToSatIdIsl()

void ns3::SatIdMapper::AttachMacToSatIdIsl	(	Mac48Address	mac,
		uint32_t	satId
	)

Attach GW/UT MAC address to the satellite this node is connected.

Parameters

mac	MAC address
satId	The satellite ID this MAC is connected to

Definition at line 315 of file satellite-id-mapper.cc.

References m_macToSatIdIslMap.

◆ AttachMacToTraceId()

uint32_t ns3::SatIdMapper::AttachMacToTraceId ( Address mac )

Attach MAC address to the Trace ID maps and give it a running trace ID (starting from 1)

Parameters

mac	MAC address

Returns: the trace ID assigned to the given MAC address

Definition at line 169 of file satellite-id-mapper.cc.

References m_macToTraceIdMap, and m_traceIdIndex.

◆ AttachMacToUtId()

uint32_t ns3::SatIdMapper::AttachMacToUtId ( Address mac )

Attach MAC address to the UT ID maps and give it a running UT ID (starting from 1)

Parameters

mac	MAC address

Returns: the UT ID assigned to the given MAC address

Definition at line 191 of file satellite-id-mapper.cc.

References m_macToUtIdMap, and m_utIdIndex.

◆ AttachMacToUtUserId()

uint32_t ns3::SatIdMapper::AttachMacToUtUserId ( Address mac )

Attach MAC address to the UT user ID maps and give it a running UT user ID (starting from 1)

Parameters

mac	MAC address

Returns: the UT user ID assigned to the given MAC address

Definition at line 211 of file satellite-id-mapper.cc.

References m_macToUtUserIdMap, and m_utUserIdIndex.

◆ DoDispose()

void ns3::SatIdMapper::DoDispose ( void )

Do needed dispose actions.

Definition at line 65 of file satellite-id-mapper.cc.

References Reset().

Here is the call graph for this function:

◆ EnableMapPrint()

void ns3::SatIdMapper::EnableMapPrint ( bool enableMapPrint )

inline

Function for enabling the map prints.

Definition at line 264 of file satellite-id-mapper.h.

References m_enableMapPrint.

◆ GetBeamIdWithMac()

int32_t ns3::SatIdMapper::GetBeamIdWithMac ( Address mac ) const

Function for getting the beam ID with MAC.

Returns -1 if the MAC is not in the map

Parameters

mac	MAC address

Returns: beam ID

Definition at line 406 of file satellite-id-mapper.cc.

References m_macToBeamIdMap.

Referenced by ns3::SatStatsHelper::GetIdentifierForUt(), and ns3::SatStatsHelper::GetIdentifierForUtUser().

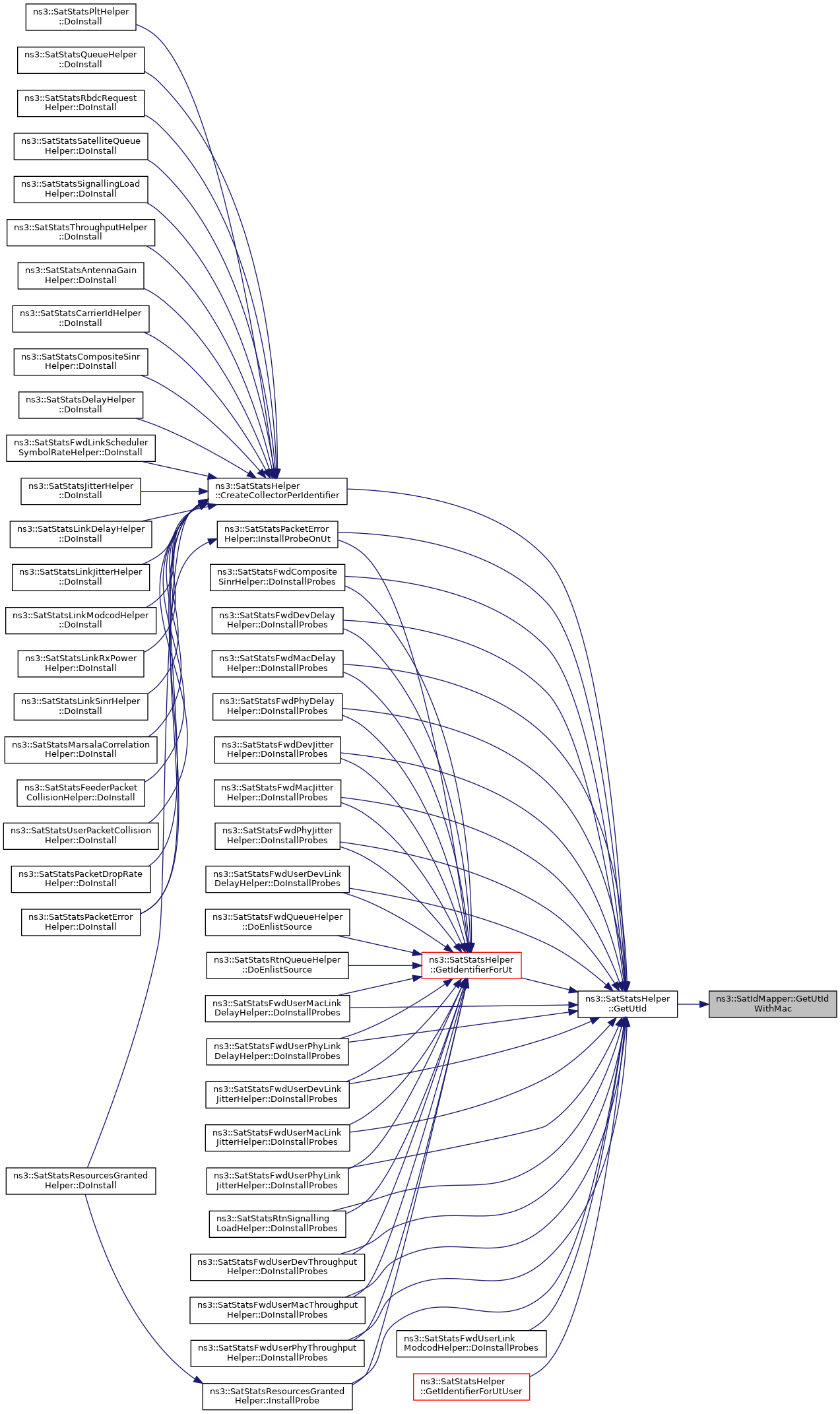

Here is the caller graph for this function:

◆ GetGroupIdWithMac()

int32_t ns3::SatIdMapper::GetGroupIdWithMac ( Address mac ) const

Function for getting the group ID with MAC.

Returns 0 if the MAC is not in the map (default group)

Parameters

mac	MAC address

Returns: group ID

Definition at line 421 of file satellite-id-mapper.cc.

References m_macToGroupIdMap.

Referenced by ns3::SatStatsHelper::GetIdentifierForUt(), and ns3::SatStatsHelper::GetIdentifierForUtUser().

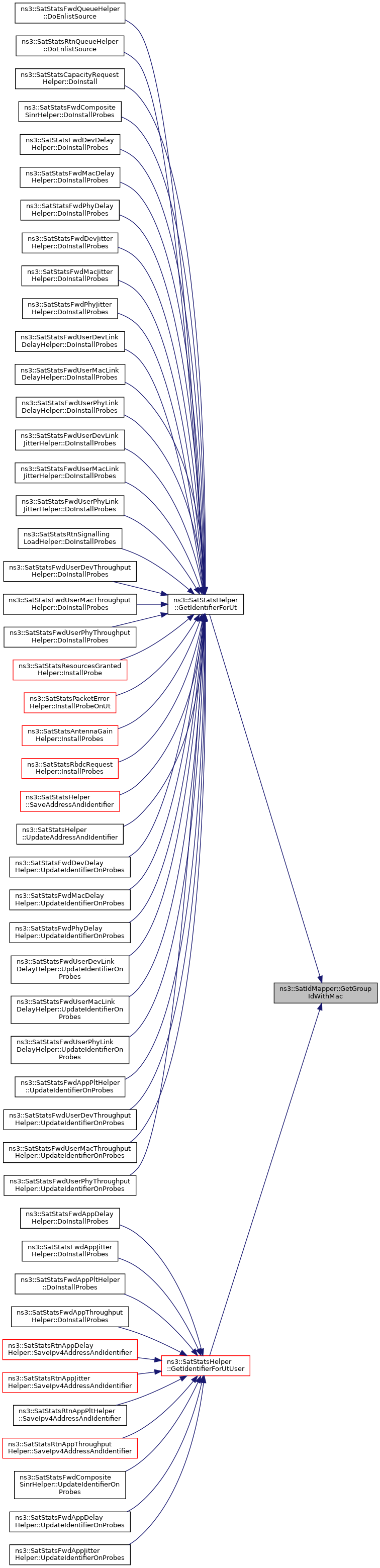

Here is the caller graph for this function:

◆ GetGwIdWithMac()

int32_t ns3::SatIdMapper::GetGwIdWithMac ( Address mac ) const

Function for getting the GW ID with MAC.

Returns -1 if the MAC is not in the map

Parameters

mac	MAC address

Returns: GW ID

Definition at line 436 of file satellite-id-mapper.cc.

References m_macToGwIdMap.

Referenced by ns3::SatStatsHelper::GetGwId().

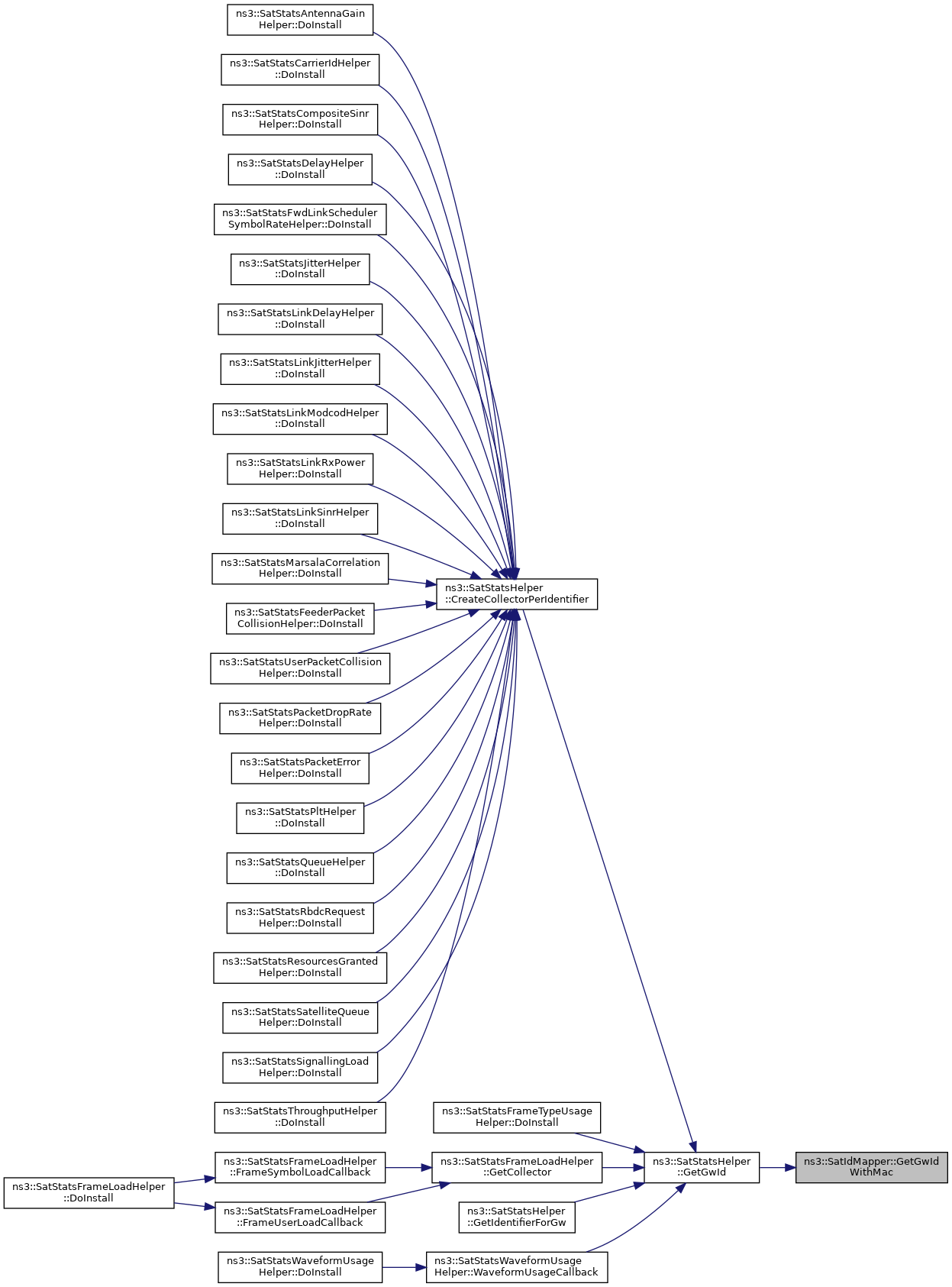

Here is the caller graph for this function:

◆ GetGwMacWithNode()

Address ns3::SatIdMapper::GetGwMacWithNode ( Ptr< Node > gwNode ) const

Parameters

gwNode pointer to a GW node

Returns: the MAC address of the GW node's first satellite beam network device, or an invalid address if such device is not found.

Definition at line 483 of file satellite-id-mapper.cc.

Referenced by ns3::SatStatsHelper::GetGwId().

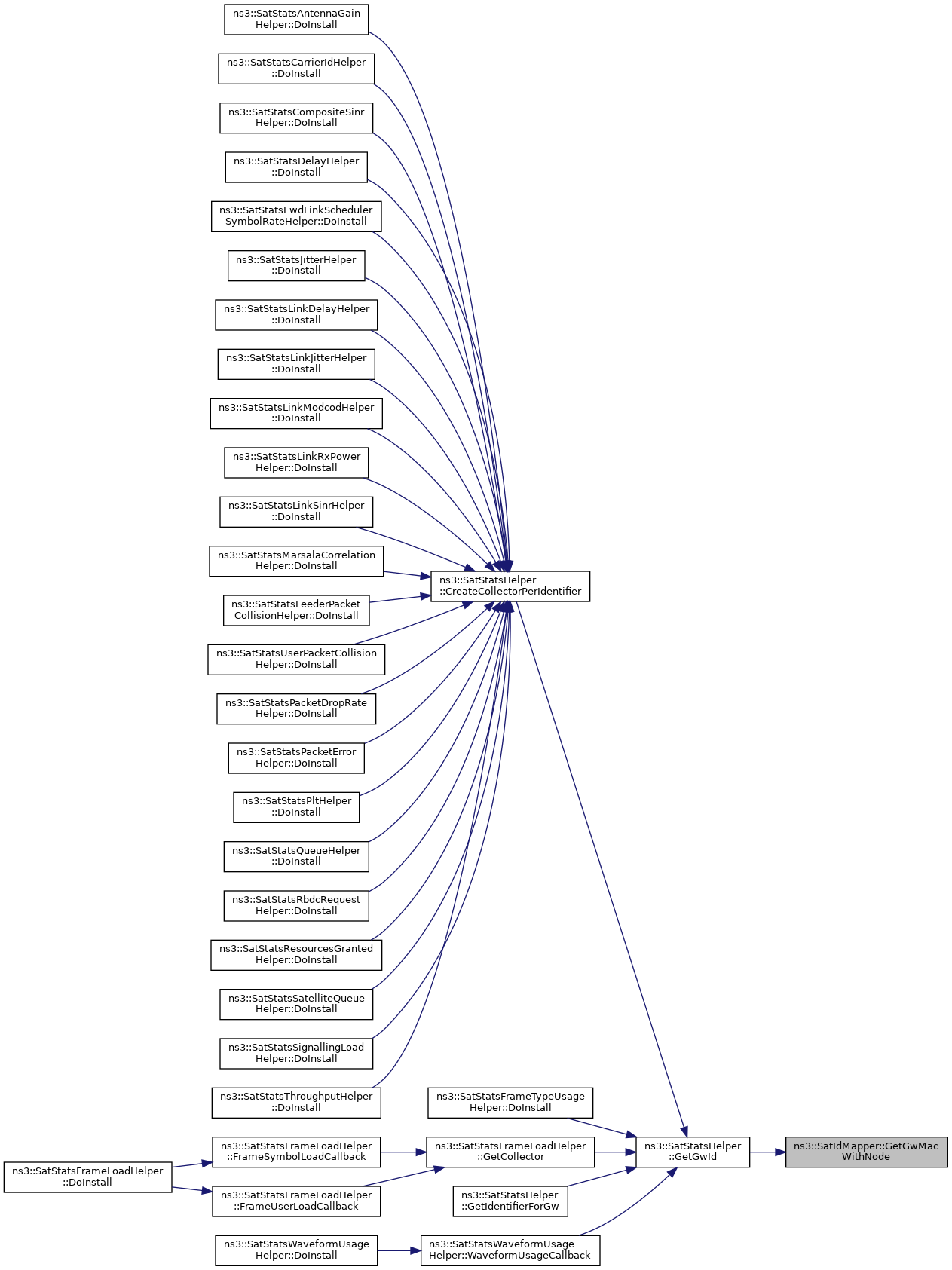

Here is the caller graph for this function:

◆ GetGwUserIdWithMac()

int32_t ns3::SatIdMapper::GetGwUserIdWithMac ( Address mac ) const

Function for getting the GW user ID with MAC.

Returns -1 if the MAC is not in the map

Parameters

mac	MAC address

Returns: GW user ID

Definition at line 451 of file satellite-id-mapper.cc.

References m_macToGwUserIdMap.

◆ GetMacInfo()

std::string ns3::SatIdMapper::GetMacInfo ( Address mac ) const

Function for getting the IDs related to a MAC address in an info string.

Parameters

mac	MAC address

Returns: info string

Definition at line 629 of file satellite-id-mapper.cc.

References m_macToBeamIdMap, m_macToGroupIdMap, m_macToGwIdMap, m_macToSatIdMap, m_macToTraceIdMap, and m_macToUtIdMap.

Referenced by PrintTraceMap().

Here is the caller graph for this function:

◆ GetSatIdWithMac()

int32_t ns3::SatIdMapper::GetSatIdWithMac ( Address mac ) const

Function for getting the SAT ID with MAC.

Returns -1 if the MAC is not in the map

Parameters

mac	MAC address

Returns: SAT user ID

Definition at line 391 of file satellite-id-mapper.cc.

References m_macToSatIdMap.

Referenced by ns3::SatStatsHelper::GetIdentifierForUt(), ns3::SatStatsHelper::GetIdentifierForUtUser(), and ns3::SatStatsHelper::GetSatId().

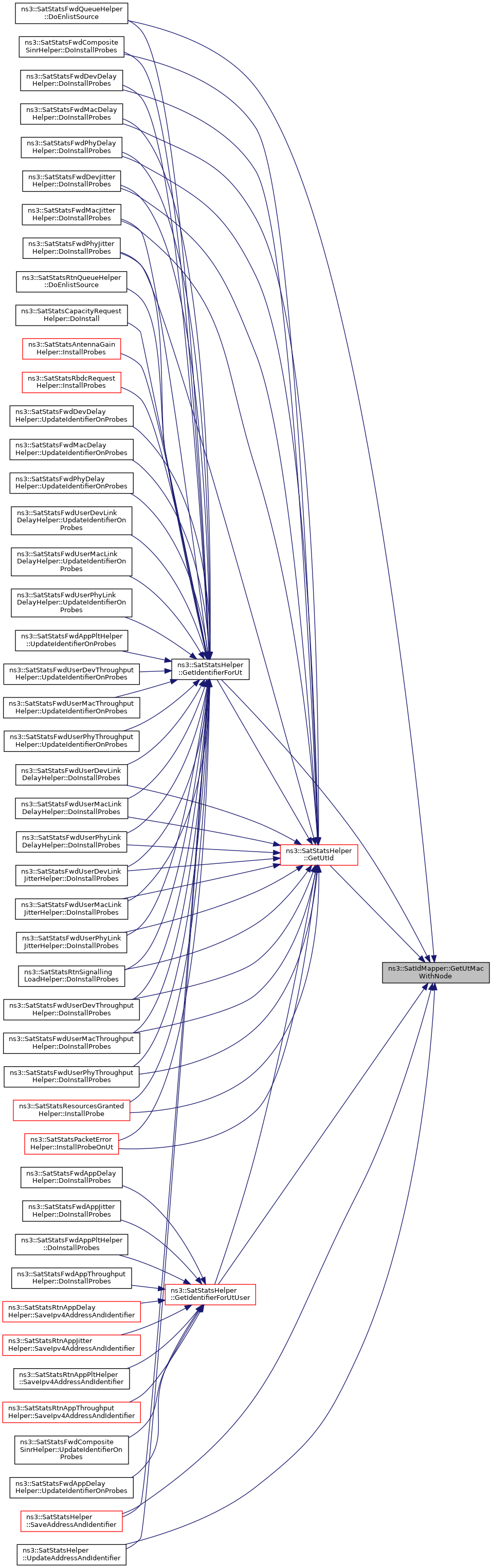

Here is the caller graph for this function:

◆ GetSatIdWithMacIsl()

int32_t ns3::SatIdMapper::GetSatIdWithMacIsl ( Mac48Address mac ) const

Function for getting the satellite ID connected to a GW/UT MAC address.

Parameters

mac	MAC address

Returns: satellite ID

Definition at line 466 of file satellite-id-mapper.cc.

References m_macToSatIdIslMap.

◆ GetSatMacWithNode()

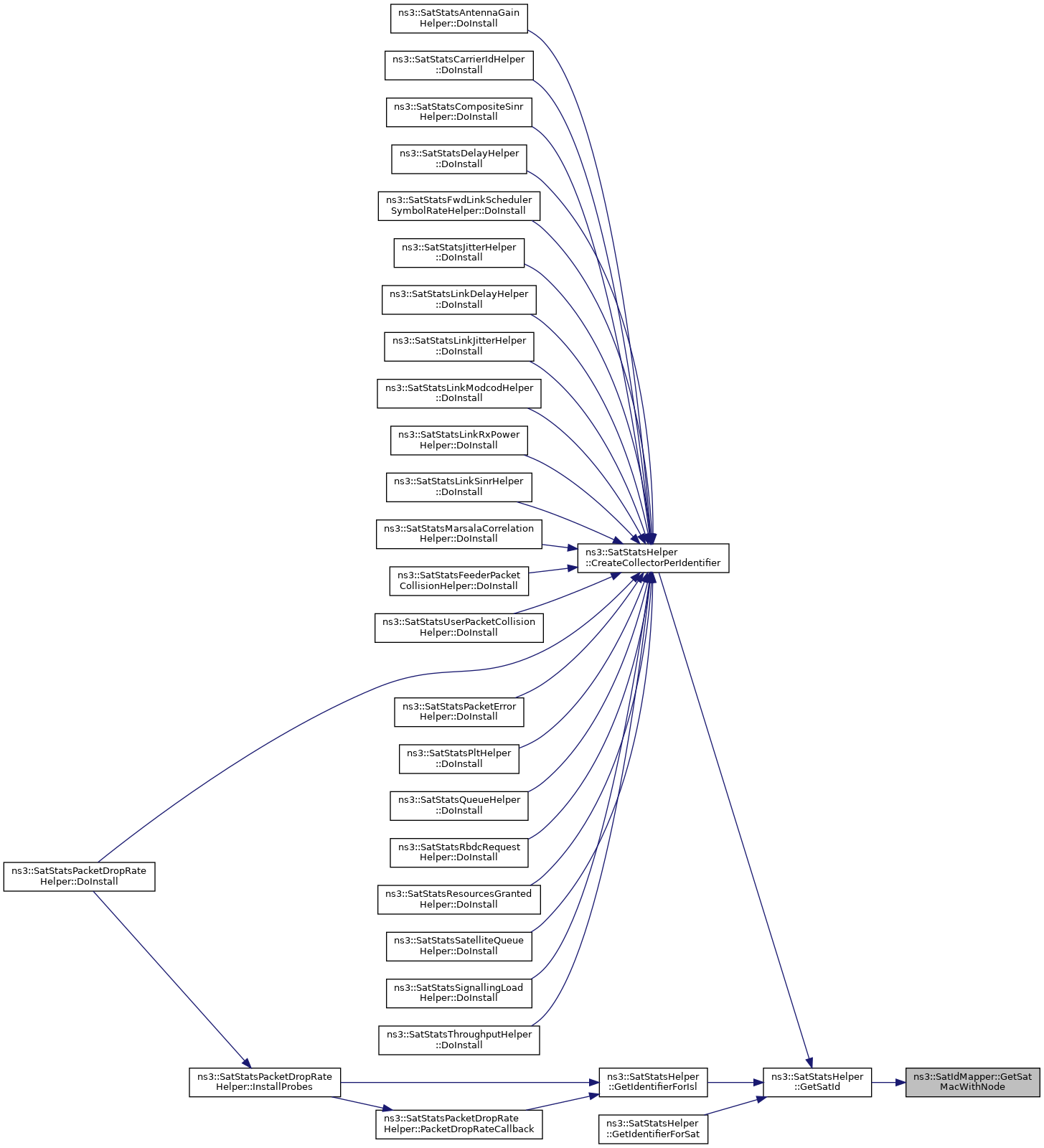

Address ns3::SatIdMapper::GetSatMacWithNode ( Ptr< Node > satNode ) const

Parameters

satNode pointer to a SAT node

Returns: the MAC address of the SAT node's first satellite beam network device, or an invalid address if such device is not found.

Definition at line 523 of file satellite-id-mapper.cc.

Referenced by ns3::SatStatsHelper::GetSatId().

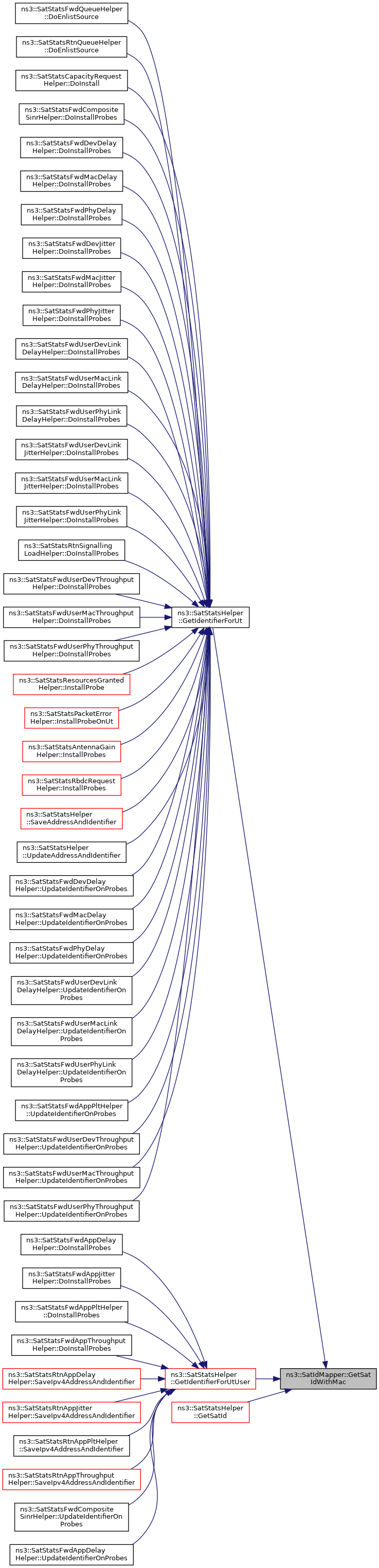

Here is the caller graph for this function:

◆ GetTraceIdWithMac()

int32_t ns3::SatIdMapper::GetTraceIdWithMac ( Address mac ) const

Function for getting the trace ID with MAC.

Returns -1 if the MAC is not in the map

Parameters

mac	MAC address

Returns: Trace ID

Definition at line 346 of file satellite-id-mapper.cc.

References m_macToTraceIdMap.

◆ GetTypeId()

TypeId ns3::SatIdMapper::GetTypeId ( void )

static

NS-3 type id function.

Returns: type id

Definition at line 40 of file satellite-id-mapper.cc.

◆ GetUtIdWithMac()

int32_t ns3::SatIdMapper::GetUtIdWithMac ( Address mac ) const

Function for getting the UT ID with MAC.

Returns -1 if the MAC is not in the map

Parameters

mac	MAC address

Returns: UT ID

Definition at line 361 of file satellite-id-mapper.cc.

References m_macToUtIdMap.

Referenced by ns3::SatStatsHelper::GetUtId().

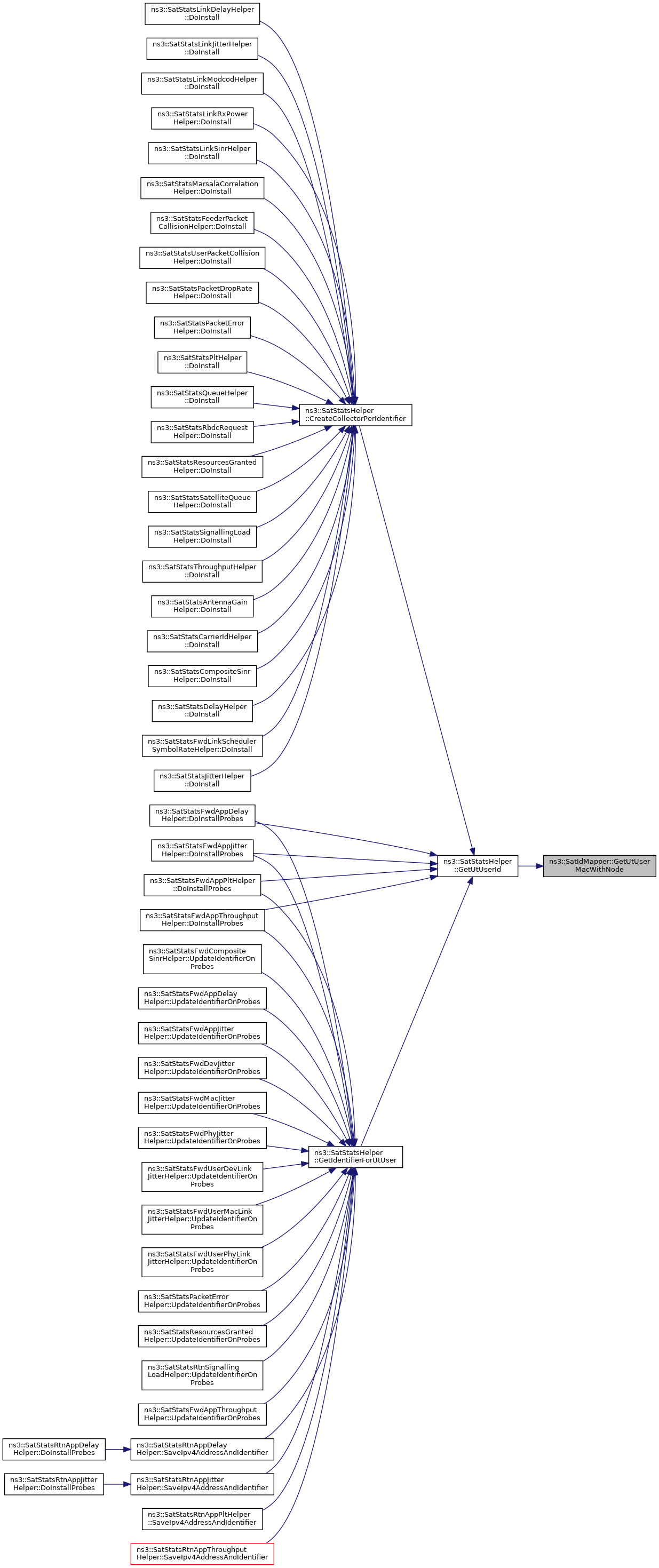

Here is the caller graph for this function:

◆ GetUtMacWithNode()

Address ns3::SatIdMapper::GetUtMacWithNode ( Ptr< Node > utNode ) const

Parameters

utNode pointer to a UT node

Returns: MAC address of the UT node's satellite beam network device, or an invalid address if such device is not found.

Definition at line 558 of file satellite-id-mapper.cc.

Here is the caller graph for this function:

◆ GetUtUserIdWithMac()

int32_t ns3::SatIdMapper::GetUtUserIdWithMac ( Address mac ) const

Function for getting the UT user ID with MAC.

Returns -1 if the MAC is not in the map

Parameters

mac	MAC address

Returns: UT user ID

Definition at line 376 of file satellite-id-mapper.cc.

References m_macToUtUserIdMap.

Referenced by ns3::SatStatsHelper::GetUtUserId().

Here is the caller graph for this function:

◆ GetUtUserMacWithNode()

Address ns3::SatIdMapper::GetUtUserMacWithNode ( Ptr< Node > utUserNode ) const

Parameters

utUserNode pointer to a UT user node

Returns: MAC address of the UT user node's subscriber network device, or an invalid address if such device is not found.

Definition at line 597 of file satellite-id-mapper.cc.

Referenced by ns3::SatStatsHelper::GetUtUserId().

Here is the caller graph for this function:

◆ PrintTraceMap()

void ns3::SatIdMapper::PrintTraceMap ( ) const

Function for printing out the trace map.

Definition at line 699 of file satellite-id-mapper.cc.

References GetMacInfo(), and m_macToTraceIdMap.

Referenced by Reset().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ RemoveMacToSatIdIsl()

void ns3::SatIdMapper::RemoveMacToSatIdIsl ( Mac48Address mac )

Remove GW/UT MAC address to the satellite this node is connected.

Parameters

mac	MAC address

Definition at line 331 of file satellite-id-mapper.cc.

References m_macToSatIdIslMap.

◆ Reset()

void ns3::SatIdMapper::Reset ( )

Function for resetting the variables.

Definition at line 75 of file satellite-id-mapper.cc.

References m_enableMapPrint, m_gwUserIdIndex, m_macToBeamIdMap, m_macToGroupIdMap, m_macToGwIdMap, m_macToGwUserIdMap, m_macToSatIdIslMap, m_macToSatIdMap, m_macToTraceIdMap, m_macToUtIdMap, m_macToUtUserIdMap, m_traceIdIndex, m_utIdIndex, m_utUserIdIndex, and PrintTraceMap().

Referenced by ~SatIdMapper(), and DoDispose().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ShowIslMap()

void ns3::SatIdMapper::ShowIslMap ( )

Print the map GW/UT address to satellite ID.

Definition at line 155 of file satellite-id-mapper.cc.

References m_macToSatIdIslMap.

Member Data Documentation

◆ m_enableMapPrint

bool ns3::SatIdMapper::m_enableMapPrint

private

Is map printing enabled or not.

Definition at line 333 of file satellite-id-mapper.h.

Referenced by EnableMapPrint(), and Reset().

◆ m_gwUserIdIndex

uint32_t ns3::SatIdMapper::m_gwUserIdIndex

private

Running GW user index number.

Definition at line 288 of file satellite-id-mapper.h.

Referenced by AttachMacToGwUserId(), and Reset().

◆ m_macToBeamIdMap

std::map<Address, uint32_t> ns3::SatIdMapper::m_macToBeamIdMap

private

Map for MAC to beam ID conversion.

Definition at line 313 of file satellite-id-mapper.h.

Referenced by AttachMacToBeamId(), GetBeamIdWithMac(), GetMacInfo(), and Reset().

◆ m_macToGroupIdMap

std::map<Address, uint32_t> ns3::SatIdMapper::m_macToGroupIdMap

private

Map for MAC to group ID conversion.

Definition at line 318 of file satellite-id-mapper.h.

Referenced by AttachMacToGroupId(), GetGroupIdWithMac(), GetMacInfo(), and Reset().

◆ m_macToGwIdMap

std::map<Address, uint32_t> ns3::SatIdMapper::m_macToGwIdMap

private

Map for MAC to GW ID conversion.

Definition at line 323 of file satellite-id-mapper.h.

Referenced by AttachMacToGwId(), GetGwIdWithMac(), GetMacInfo(), and Reset().

◆ m_macToGwUserIdMap

std::map<Address, uint32_t> ns3::SatIdMapper::m_macToGwUserIdMap

private

Map for MAC to GW user ID conversion.

Definition at line 328 of file satellite-id-mapper.h.

Referenced by AttachMacToGwUserId(), GetGwUserIdWithMac(), and Reset().

◆ m_macToSatIdIslMap

std::map<Mac48Address, uint32_t> ns3::SatIdMapper::m_macToSatIdIslMap

private

Map for GW/UT MAC to associated SAT ID conversion.

Definition at line 338 of file satellite-id-mapper.h.

Referenced by AttachMacToSatIdIsl(), GetSatIdWithMacIsl(), RemoveMacToSatIdIsl(), Reset(), and ShowIslMap().

◆ m_macToSatIdMap

std::map<Address, uint32_t> ns3::SatIdMapper::m_macToSatIdMap

private

Map for MAC to SAT ID conversion.

Definition at line 308 of file satellite-id-mapper.h.

Referenced by AttachMacToSatId(), GetMacInfo(), GetSatIdWithMac(), and Reset().

◆ m_macToTraceIdMap

std::map<Address, uint32_t> ns3::SatIdMapper::m_macToTraceIdMap

private

Map for MAC to trace ID conversion.

Definition at line 293 of file satellite-id-mapper.h.

Referenced by AttachMacToTraceId(), GetMacInfo(), GetTraceIdWithMac(), PrintTraceMap(), and Reset().

◆ m_macToUtIdMap

std::map<Address, uint32_t> ns3::SatIdMapper::m_macToUtIdMap

private

Map for MAC to UT ID conversion.

Definition at line 298 of file satellite-id-mapper.h.

Referenced by AttachMacToUtId(), GetMacInfo(), GetUtIdWithMac(), and Reset().

◆ m_macToUtUserIdMap

std::map<Address, uint32_t> ns3::SatIdMapper::m_macToUtUserIdMap

private

Map for MAC to UT user ID conversion.

Definition at line 303 of file satellite-id-mapper.h.

Referenced by AttachMacToUtUserId(), GetUtUserIdWithMac(), and Reset().

◆ m_traceIdIndex

uint32_t ns3::SatIdMapper::m_traceIdIndex

private

Running trace index number.

Definition at line 273 of file satellite-id-mapper.h.

Referenced by AttachMacToTraceId(), and Reset().

◆ m_utIdIndex

uint32_t ns3::SatIdMapper::m_utIdIndex

private

Running UT index number.

Definition at line 278 of file satellite-id-mapper.h.

Referenced by AttachMacToUtId(), and Reset().

◆ m_utUserIdIndex

uint32_t ns3::SatIdMapper::m_utUserIdIndex

private

Running UT user index number.

Definition at line 283 of file satellite-id-mapper.h.

Referenced by AttachMacToUtUserId(), and Reset().

The documentation for this class was generated from the following files:

/builds/sns3/satellite/satellite/model/satellite-id-mapper.h
/builds/sns3/satellite/satellite/model/satellite-id-mapper.cc

Public Member Functions

Static Public Member Functions

Private Attributes

Detailed Description

Constructor & Destructor Documentation

◆ SatIdMapper()

◆ ~SatIdMapper()

Member Function Documentation

◆ AttachMacToBeamId()

◆ AttachMacToGroupId()

◆ AttachMacToGwId()

◆ AttachMacToGwUserId()

◆ AttachMacToSatId()

◆ AttachMacToSatIdIsl()

◆ AttachMacToTraceId()

◆ AttachMacToUtId()

◆ AttachMacToUtUserId()

◆ DoDispose()

◆ EnableMapPrint()

◆ GetBeamIdWithMac()

◆ GetGroupIdWithMac()

◆ GetGwIdWithMac()

◆ GetGwMacWithNode()

◆ GetGwUserIdWithMac()

◆ GetMacInfo()

◆ GetSatIdWithMac()

◆ GetSatIdWithMacIsl()

◆ GetSatMacWithNode()

◆ GetTraceIdWithMac()

◆ GetTypeId()

◆ GetUtIdWithMac()

◆ GetUtMacWithNode()

◆ GetUtUserIdWithMac()

◆ GetUtUserMacWithNode()

◆ PrintTraceMap()

◆ RemoveMacToSatIdIsl()

◆ Reset()

◆ ShowIslMap()

Member Data Documentation

◆ m_enableMapPrint

◆ m_gwUserIdIndex

◆ m_macToBeamIdMap

◆ m_macToGroupIdMap

◆ m_macToGwIdMap

◆ m_macToGwUserIdMap

◆ m_macToSatIdIslMap

◆ m_macToSatIdMap

◆ m_macToTraceIdMap

◆ m_macToUtIdMap

◆ m_macToUtUserIdMap

◆ m_traceIdIndex

◆ m_utIdIndex

◆ m_utUserIdIndex
