#include "satellite-gse-header.h"

Inheritance diagram for ns3::SatGseHeader:

Collaboration diagram for ns3::SatGseHeader:

Public Member Functions
	SatGseHeader ()
	Constructor. More...

	~SatGseHeader ()
	Destructor for SatGseHeader. More...

virtual uint32_t	Deserialize (Buffer::Iterator start)
	Deserializes information from buffer to this instance of SatGseHeader. More...

uint8_t	GetEndIndicator () const
	Get end indicator of GSE header. More...

uint32_t	GetFragmentId () const
	Get GSE fragment id. More...

uint32_t	GetGseHeaderSizeInBytes (uint8_t type) const
	Get the maximum GSE header size. More...

uint32_t	GetGsePduLength () const
	Get GSE fragment length in bytes. More...

virtual TypeId	GetInstanceTypeId (void) const
	Get the type ID of instance. More...

uint32_t	GetMaxGseHeaderSizeInBytes () const
	Get the maximum GSE header size. More...

virtual uint32_t	GetSerializedSize (void) const
	Get serialized size of SatGseHeader. More...

uint8_t	GetStartIndicator () const
	Get start indicator of GSE header. More...

uint32_t	GetTotalLength () const
	Get total length of higher layer PDU. More...

virtual void	Print (std::ostream &os) const
	Print time stamp of this instance of SatGseHeader. More...

virtual void	Serialize (Buffer::Iterator start) const
	Serializes information to buffer from this instance of SatGseHeader. More...

void	SetEndIndicator ()
	Set end indicator to GSE header. More...

void	SetFragmentId (uint32_t id)
	Set fragment id to GSE header. More...

void	SetGsePduLength (uint32_t bytes)
	Set GSE fragment length to PPDU header. More...

void	SetStartIndicator ()
	Set start indicator to GSE header. More...

void	SetTotalLength (uint32_t bytes)
	Set total length of higher layer PDU. More...

Static Public Member Functions
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Attributes
const uint32_t	m_continuationGseHeaderSize

uint32_t	m_crc

const uint32_t	m_endGseHeaderSize

uint8_t	m_endIndicator

uint8_t	m_fragmentId

const uint32_t	m_fullGseHeaderSize
	Constant variables for determining the header sizes of different GSE fragments. More...

uint16_t	m_gsePduLengthInBytes

uint8_t	m_labelByte

uint16_t	m_protocolType

const uint32_t	m_startGseHeaderSize

uint8_t	m_startIndicator
	GSE header content. More...

uint16_t	m_totalLengthInBytes

Static Private Attributes
static const uint32_t	m_labelFieldLengthInBytes = 3

Detailed Description

SatGseHeader implementation.

GSE header is added to each of the transmitted GSE packets at the GW in FWD link direction. The header is detached and interpreted at the GSE receiver at the UT. Based on the content the receiver can do the defragmentation of the higher layer packet. The size of the GSE header is determined by the Serialize and GetSerializedSize methods. The GSE header has the proper content and size according to specification.

See also: ETSI TS 102 606 V1.1.1 Digital Video Broadcasting (DVB); Generic Stream Encapsulation (GSE) Protocol

Definition at line 47 of file satellite-gse-header.h.

Constructor & Destructor Documentation

◆ SatGseHeader()

ns3::SatGseHeader::SatGseHeader ( )

Constructor.

Definition at line 39 of file satellite-gse-header.cc.

◆ ~SatGseHeader()

ns3::SatGseHeader::~SatGseHeader ( )

Destructor for SatGseHeader.

Definition at line 55 of file satellite-gse-header.cc.

Member Function Documentation

◆ Deserialize()

uint32_t ns3::SatGseHeader::Deserialize ( Buffer::Iterator start )

virtual

Deserializes information from buffer to this instance of SatGseHeader.

Parameters

start Buffer from which the information is deserialized

Returns: Serialized size of the buffer

The GSE header includes also other fields, but currently they are not deserialized because they are not used. They are just serialized so that the header size is correct.

Definition at line 144 of file satellite-gse-header.cc.

References GetSerializedSize(), m_endIndicator, m_fragmentId, m_gsePduLengthInBytes, m_startIndicator, and m_totalLengthInBytes.

Here is the call graph for this function:

◆ GetEndIndicator()

uint8_t ns3::SatGseHeader::GetEndIndicator ( ) const

Get end indicator of GSE header.

Returns: End indicator

Definition at line 206 of file satellite-gse-header.cc.

References m_endIndicator.

Referenced by ns3::SatGenericStreamEncapsulator::ProcessPdu().

Here is the caller graph for this function:

◆ GetFragmentId()

uint32_t ns3::SatGseHeader::GetFragmentId ( ) const

Get GSE fragment id.

Returns: Fragment id

Definition at line 220 of file satellite-gse-header.cc.

References m_fragmentId.

Referenced by ns3::SatGenericStreamEncapsulator::ProcessPdu().

Here is the caller graph for this function:

◆ GetGseHeaderSizeInBytes()

uint32_t ns3::SatGseHeader::GetGseHeaderSizeInBytes ( uint8_t type ) const

Get the maximum GSE header size.

Returns: Header size in bytes

Definition at line 269 of file satellite-gse-header.cc.

References ns3::SatEncapPduStatusTag::CONTINUATION_PDU, ns3::SatEncapPduStatusTag::END_PDU, ns3::SatEncapPduStatusTag::FULL_PDU, m_continuationGseHeaderSize, m_endGseHeaderSize, m_fullGseHeaderSize, m_labelFieldLengthInBytes, m_startGseHeaderSize, and ns3::SatEncapPduStatusTag::START_PDU.

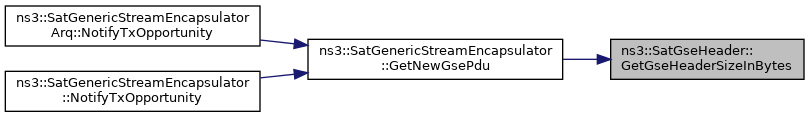

Referenced by ns3::SatGenericStreamEncapsulator::GetNewGsePdu().

Here is the caller graph for this function:

◆ GetGsePduLength()

uint32_t ns3::SatGseHeader::GetGsePduLength ( ) const

Get GSE fragment length in bytes.

Returns: GSE PDU length

Definition at line 213 of file satellite-gse-header.cc.

References m_gsePduLengthInBytes.

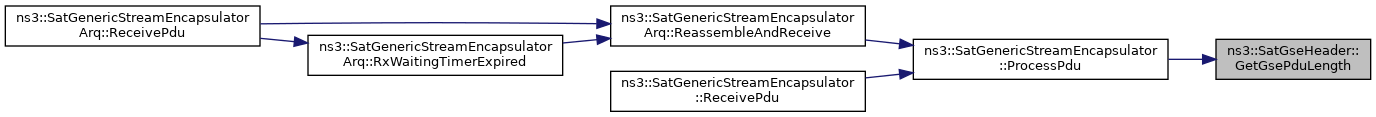

Referenced by ns3::SatGenericStreamEncapsulator::ProcessPdu().

Here is the caller graph for this function:

◆ GetInstanceTypeId()

TypeId ns3::SatGseHeader::GetInstanceTypeId ( void ) const

virtual

Get the type ID of instance.

Returns: the object TypeId

Definition at line 193 of file satellite-gse-header.cc.

References GetTypeId().

Here is the call graph for this function:

◆ GetMaxGseHeaderSizeInBytes()

uint32_t ns3::SatGseHeader::GetMaxGseHeaderSizeInBytes ( ) const

Get the maximum GSE header size.

Returns: uint32_t header size

Definition at line 301 of file satellite-gse-header.cc.

References m_continuationGseHeaderSize, m_endGseHeaderSize, m_fullGseHeaderSize, m_labelFieldLengthInBytes, and m_startGseHeaderSize.

Referenced by ns3::SatGenericStreamEncapsulator::SatGenericStreamEncapsulator().

Here is the caller graph for this function:

◆ GetSerializedSize()

uint32_t ns3::SatGseHeader::GetSerializedSize ( void ) const

virtual

Get serialized size of SatGseHeader.

Returns: Serialized size in bytes

Definition at line 68 of file satellite-gse-header.cc.

References m_continuationGseHeaderSize, m_endGseHeaderSize, m_endIndicator, m_fullGseHeaderSize, m_labelFieldLengthInBytes, m_startGseHeaderSize, and m_startIndicator.

Referenced by Deserialize().

Here is the caller graph for this function:

◆ GetStartIndicator()

uint8_t ns3::SatGseHeader::GetStartIndicator ( ) const

Get start indicator of GSE header.

Returns: Start indicator

Definition at line 199 of file satellite-gse-header.cc.

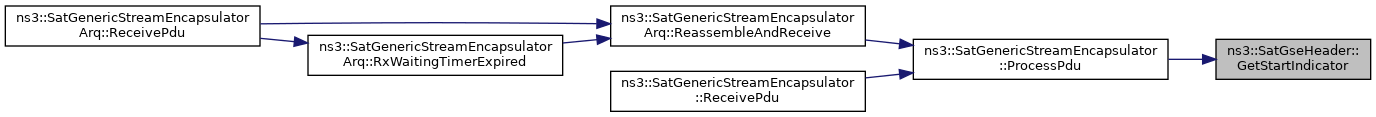

References m_startIndicator.

Referenced by ns3::SatGenericStreamEncapsulator::ProcessPdu().

Here is the caller graph for this function:

◆ GetTotalLength()

uint32_t ns3::SatGseHeader::GetTotalLength ( ) const

Get total length of higher layer PDU.

Returns: Total length of HL PDU

Definition at line 227 of file satellite-gse-header.cc.

References m_totalLengthInBytes.

Referenced by ns3::SatGenericStreamEncapsulator::ProcessPdu().

Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::SatGseHeader::GetTypeId ( void )

static

Get the type ID.

Returns: the object TypeId

Definition at line 60 of file satellite-gse-header.cc.

Referenced by GetInstanceTypeId().

Here is the caller graph for this function:

◆ Print()

void ns3::SatGseHeader::Print ( std::ostream & os ) const

virtual

Print time stamp of this instance of SatGseHeader.

Parameters

&os	Output stream to which tag timestamp is printed.

Definition at line 183 of file satellite-gse-header.cc.

References m_crc, m_endIndicator, m_fragmentId, m_gsePduLengthInBytes, m_labelByte, m_protocolType, m_startIndicator, and m_totalLengthInBytes.

◆ Serialize()

void ns3::SatGseHeader::Serialize ( Buffer::Iterator start ) const

virtual

Serializes information to buffer from this instance of SatGseHeader.

Parameters

start Buffer in which the information is serialized

Definition at line 102 of file satellite-gse-header.cc.

References m_crc, m_endIndicator, m_fragmentId, m_gsePduLengthInBytes, m_labelByte, m_labelFieldLengthInBytes, m_protocolType, m_startIndicator, and m_totalLengthInBytes.

◆ SetEndIndicator()

void ns3::SatGseHeader::SetEndIndicator ( )

Set end indicator to GSE header.

Definition at line 241 of file satellite-gse-header.cc.

References m_endIndicator.

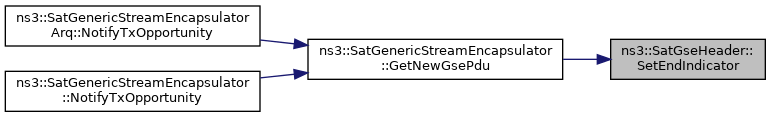

Referenced by ns3::SatGenericStreamEncapsulator::GetNewGsePdu().

Here is the caller graph for this function:

◆ SetFragmentId()

void ns3::SatGseHeader::SetFragmentId ( uint32_t id )

Set fragment id to GSE header.

Parameters

id	Fragment id

Definition at line 255 of file satellite-gse-header.cc.

References m_fragmentId.

Referenced by ns3::SatGenericStreamEncapsulator::GetNewGsePdu().

Here is the caller graph for this function:

◆ SetGsePduLength()

void ns3::SatGseHeader::SetGsePduLength ( uint32_t bytes )

Set GSE fragment length to PPDU header.

Parameters

bytes GSE length in bytes

Definition at line 248 of file satellite-gse-header.cc.

References m_gsePduLengthInBytes.

Referenced by ns3::SatGenericStreamEncapsulator::GetNewGsePdu().

Here is the caller graph for this function:

◆ SetStartIndicator()

void ns3::SatGseHeader::SetStartIndicator ( )

Set start indicator to GSE header.

Definition at line 234 of file satellite-gse-header.cc.

References m_startIndicator.

Referenced by ns3::SatGenericStreamEncapsulator::GetNewGsePdu().

Here is the caller graph for this function:

◆ SetTotalLength()

void ns3::SatGseHeader::SetTotalLength ( uint32_t bytes )

Set total length of higher layer PDU.

Set in START_PPDU status type.

Parameters

bytes Size of the full HL packet

Definition at line 262 of file satellite-gse-header.cc.

References m_totalLengthInBytes.

Referenced by ns3::SatGenericStreamEncapsulator::GetNewGsePdu().

Here is the caller graph for this function:

Member Data Documentation

◆ m_continuationGseHeaderSize

const uint32_t ns3::SatGseHeader::m_continuationGseHeaderSize

private

Definition at line 188 of file satellite-gse-header.h.

Referenced by GetGseHeaderSizeInBytes(), GetMaxGseHeaderSizeInBytes(), and GetSerializedSize().

◆ m_crc

uint32_t ns3::SatGseHeader::m_crc

private

Definition at line 179 of file satellite-gse-header.h.

Referenced by Print(), and Serialize().

◆ m_endGseHeaderSize

const uint32_t ns3::SatGseHeader::m_endGseHeaderSize

private

Definition at line 187 of file satellite-gse-header.h.

Referenced by GetGseHeaderSizeInBytes(), GetMaxGseHeaderSizeInBytes(), and GetSerializedSize().

◆ m_endIndicator

uint8_t ns3::SatGseHeader::m_endIndicator

private

Definition at line 173 of file satellite-gse-header.h.

Referenced by Deserialize(), GetEndIndicator(), GetSerializedSize(), Print(), Serialize(), and SetEndIndicator().

◆ m_fragmentId

uint8_t ns3::SatGseHeader::m_fragmentId

private

Definition at line 175 of file satellite-gse-header.h.

Referenced by Deserialize(), GetFragmentId(), Print(), Serialize(), and SetFragmentId().

◆ m_fullGseHeaderSize

const uint32_t ns3::SatGseHeader::m_fullGseHeaderSize

private

Constant variables for determining the header sizes of different GSE fragments.

Definition at line 185 of file satellite-gse-header.h.

Referenced by GetGseHeaderSizeInBytes(), GetMaxGseHeaderSizeInBytes(), and GetSerializedSize().

◆ m_gsePduLengthInBytes

uint16_t ns3::SatGseHeader::m_gsePduLengthInBytes

private

Definition at line 174 of file satellite-gse-header.h.

Referenced by Deserialize(), GetGsePduLength(), Print(), Serialize(), and SetGsePduLength().

◆ m_labelByte

uint8_t ns3::SatGseHeader::m_labelByte

private

Definition at line 178 of file satellite-gse-header.h.

Referenced by Print(), and Serialize().

◆ m_labelFieldLengthInBytes

const uint32_t ns3::SatGseHeader::m_labelFieldLengthInBytes = 3

staticprivate

Definition at line 190 of file satellite-gse-header.h.

Referenced by GetGseHeaderSizeInBytes(), GetMaxGseHeaderSizeInBytes(), GetSerializedSize(), and Serialize().

◆ m_protocolType

uint16_t ns3::SatGseHeader::m_protocolType

private

Definition at line 177 of file satellite-gse-header.h.

Referenced by Print(), and Serialize().

◆ m_startGseHeaderSize

const uint32_t ns3::SatGseHeader::m_startGseHeaderSize

private

Definition at line 186 of file satellite-gse-header.h.

Referenced by GetGseHeaderSizeInBytes(), GetMaxGseHeaderSizeInBytes(), and GetSerializedSize().

◆ m_startIndicator

uint8_t ns3::SatGseHeader::m_startIndicator

private

GSE header content.

Definition at line 172 of file satellite-gse-header.h.

Referenced by Deserialize(), GetSerializedSize(), GetStartIndicator(), Print(), Serialize(), and SetStartIndicator().

◆ m_totalLengthInBytes

uint16_t ns3::SatGseHeader::m_totalLengthInBytes

private

Definition at line 176 of file satellite-gse-header.h.

Referenced by Deserialize(), GetTotalLength(), Print(), Serialize(), and SetTotalLength().

The documentation for this class was generated from the following files:

/builds/sns3/satellite/satellite/model/satellite-gse-header.h
/builds/sns3/satellite/satellite/model/satellite-gse-header.cc

Public Member Functions

Static Public Member Functions

Private Attributes

Static Private Attributes

Detailed Description

Constructor & Destructor Documentation

◆ SatGseHeader()

◆ ~SatGseHeader()

Member Function Documentation

◆ Deserialize()

◆ GetEndIndicator()

◆ GetFragmentId()

◆ GetGseHeaderSizeInBytes()

◆ GetGsePduLength()

◆ GetInstanceTypeId()

◆ GetMaxGseHeaderSizeInBytes()

◆ GetSerializedSize()

◆ GetStartIndicator()

◆ GetTotalLength()

◆ GetTypeId()

◆ Print()

◆ Serialize()

◆ SetEndIndicator()

◆ SetFragmentId()

◆ SetGsePduLength()

◆ SetStartIndicator()

◆ SetTotalLength()

Member Data Documentation

◆ m_continuationGseHeaderSize

◆ m_crc

◆ m_endGseHeaderSize

◆ m_endIndicator

◆ m_fragmentId

◆ m_fullGseHeaderSize

◆ m_gsePduLengthInBytes

◆ m_labelByte

◆ m_labelFieldLengthInBytes

◆ m_protocolType

◆ m_startGseHeaderSize

◆ m_startIndicator

◆ m_totalLengthInBytes
