Probe to translate from a FrameUtLoadTrace trace source. More...

#include "satellite-frame-user-load-probe.h"

Inheritance diagram for ns3::SatFrameUserLoadProbe:

Collaboration diagram for ns3::SatFrameUserLoadProbe:

Public Types
typedef void(*	FrameUserLoadCallback) (uint32_t frameId, uint32_t utCount)
	Callback signature for frame load in unit of users. More...

Public Member Functions
	SatFrameUserLoadProbe ()
	Default constructor. More...

virtual	~SatFrameUserLoadProbe ()
	Destructor for SatFrameUserLoadProbe. More...

virtual bool	ConnectByObject (std::string traceSource, Ptr< Object > obj)
	connect to a trace source attribute provided by a given object More...

virtual void	ConnectByPath (std::string path)
	connect to a trace source provided by a config path More...

void	SetValue (uint32_t frameId, uint32_t utCount)
	Set a probe value. More...

Static Public Member Functions
static TypeId	GetTypeId ()
	Get the type ID. More...

static void	SetValueByPath (std::string path, uint32_t frameId, uint32_t utCount)
	Set a probe value by its name in the Config system. More...

Private Member Functions
void	TraceSink (uint32_t frameId, uint32_t utCount)
	Method to connect to an underlying ns3::TraceSource with arguments of type uint32_t and uint32_t. More...

Private Attributes
TracedCallback< uint32_t, uint32_t >	m_output
	Output trace, the frame ID and number of scheduled users. More...

Detailed Description

Probe to translate from a FrameUtLoadTrace trace source.

This class is designed to probe an underlying ns3 TraceSource exporting a frame load information. This probe exports a trace source "Output" with two arguments of type uint32_t: frame ID and number of scheduled users. The trace sources emit values when either the probed trace source emits a new value, or when SetValue () is called.

Definition at line 50 of file satellite-frame-user-load-probe.h.

Member Typedef Documentation

◆ FrameUserLoadCallback

typedef void(* ns3::SatFrameUserLoadProbe::FrameUserLoadCallback) (uint32_t frameId, uint32_t utCount)

Callback signature for frame load in unit of users.

Parameters

frameId	The current frame number.
utCount	The number of scheduled users.

Definition at line 111 of file satellite-frame-user-load-probe.h.

Constructor & Destructor Documentation

◆ SatFrameUserLoadProbe()

ns3::SatFrameUserLoadProbe::SatFrameUserLoadProbe ( )

Default constructor.

Definition at line 61 of file satellite-frame-user-load-probe.cc.

◆ ~SatFrameUserLoadProbe()

ns3::SatFrameUserLoadProbe::~SatFrameUserLoadProbe ( )

virtual

Destructor for SatFrameUserLoadProbe.

Definition at line 66 of file satellite-frame-user-load-probe.cc.

Member Function Documentation

◆ ConnectByObject()

bool ns3::SatFrameUserLoadProbe::ConnectByObject	(	std::string	traceSource,
		Ptr< Object >	obj
	)

virtual

connect to a trace source attribute provided by a given object

Parameters

traceSource	the name of the attribute TraceSource to connect to
obj	ns3::Object to connect to

Returns: true if the trace source was successfully connected

Definition at line 88 of file satellite-frame-user-load-probe.cc.

References TraceSink().

Here is the call graph for this function:

◆ ConnectByPath()

void ns3::SatFrameUserLoadProbe::ConnectByPath ( std::string path )

virtual

connect to a trace source provided by a config path

Parameters

path	Config path to bind to

Note, if an invalid path is provided, the probe will not be connected to anything.

Definition at line 99 of file satellite-frame-user-load-probe.cc.

References TraceSink().

Here is the call graph for this function:

◆ GetTypeId()

TypeId ns3::SatFrameUserLoadProbe::GetTypeId ( void )

static

Get the type ID.

Returns: the object TypeId

Definition at line 47 of file satellite-frame-user-load-probe.cc.

References m_output.

◆ SetValue()

void ns3::SatFrameUserLoadProbe::SetValue	(	uint32_t	frameId,
		uint32_t	utCount
	)

Set a probe value.

Parameters

frameId	set the frame number equal to this
utCount	set the traced number of scheduled users equal to this

Definition at line 72 of file satellite-frame-user-load-probe.cc.

References m_output.

◆ SetValueByPath()

void ns3::SatFrameUserLoadProbe::SetValueByPath	(	std::string	path,
		uint32_t	frameId,
		uint32_t	utCount
	)

static

Set a probe value by its name in the Config system.

Parameters

path	config path to access the probe
frameId	set the frame number equal to this
utCount	set the traced number of scheduled users equal to this

Definition at line 79 of file satellite-frame-user-load-probe.cc.

◆ TraceSink()

void ns3::SatFrameUserLoadProbe::TraceSink	(	uint32_t	frameId,
		uint32_t	utCount
	)

private

Method to connect to an underlying ns3::TraceSource with arguments of type uint32_t and uint32_t.

Parameters

frameId	frame number
utCount	the traced number of scheduled users

Definition at line 107 of file satellite-frame-user-load-probe.cc.

References m_output.

Referenced by ConnectByObject(), and ConnectByPath().

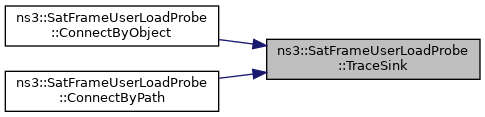

Here is the caller graph for this function:

Member Data Documentation

◆ m_output

TracedCallback<uint32_t, uint32_t> ns3::SatFrameUserLoadProbe::m_output

private

Output trace, the frame ID and number of scheduled users.

Definition at line 124 of file satellite-frame-user-load-probe.h.

Referenced by GetTypeId(), SetValue(), and TraceSink().

The documentation for this class was generated from the following files:

/builds/sns3/satellite/satellite/stats/satellite-frame-user-load-probe.h
/builds/sns3/satellite/satellite/stats/satellite-frame-user-load-probe.cc
