This class implements configuration for frames (for super frames) More...

#include "satellite-frame-conf.h"

Inheritance diagram for ns3::SatFrameConf:

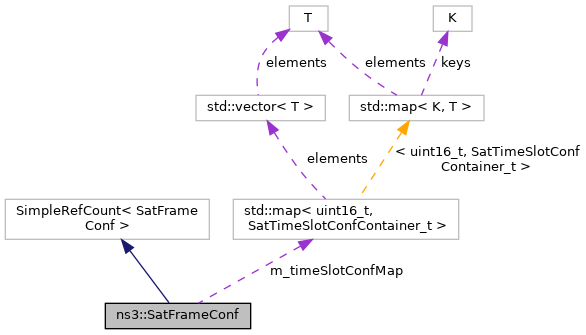

Collaboration diagram for ns3::SatFrameConf:

Classes
struct	SatFrameConfParams_t
	Helper struct to reduce the number of parameters fed into the SatFrameConf constructor. More...

Public Types
typedef std::vector< Ptr< SatTimeSlotConf > >	SatTimeSlotConfContainer_t
	Define type SatTimeSlotConfContainer_t. More...

Public Member Functions
	SatFrameConf ()
	Default constructor for SatFrameConf. More...

	SatFrameConf (SatFrameConfParams_t parameters)
	Constructor for SatFrameConf. More...

	~SatFrameConf ()
	Destructor for SatFrameConf. More...

uint8_t	GetAllocationChannelId () const
	Get allocation channel ID of this frame. More...

double	GetBandwidthHz () const
	Get bandwidth of the frame. More...

Ptr< SatBtuConf >	GetBtuConf () const
	Get BTU conf of the frame. More...

double	GetCarrierBandwidthHz (SatEnums::CarrierBandwidthType_t bandwidthType) const
	Get carrier bandwidth in frame. More...

uint16_t	GetCarrierCount () const
	Get carrier count of the frame. More...

double	GetCarrierFrequencyHz (uint16_t carrierId) const
	Get carrier center frequency in frame. More...

uint32_t	GetCarrierMaxSymbols () const
	Get maximum symbols in carrier. More...

uint32_t	GetCarrierMinPayloadInBytes () const
	Get minimum payload of a carrier in bytes. More...

Time	GetDuration () const
	Get duration of frame. More...

uint8_t	GetGuardTimeSymbols () const
	Get the guard time configuration of this frame. More...

Ptr< SatFrameConf >	GetParent () const

uint8_t	GetSubdivisionLevel () const
	Get the subdivision level of this frame. More...

Ptr< SatTimeSlotConf >	GetTimeSlotConf (uint16_t carrierId, uint16_t index) const
	Get time slot conf of the frame. More...

Ptr< SatTimeSlotConf >	GetTimeSlotConf (uint16_t index) const
	Get time slot configuration of the frame. More...

SatTimeSlotConfContainer_t	GetTimeSlotConfs (uint16_t carrierId) const
	Get time slot of the specific carrier. More...

uint16_t	GetTimeSlotCount () const
	Get time slot count of the frame. More...

Ptr< SatWaveformConf >	GetWaveformConf () const
	Get waveform configuration of this frame. More...

bool	IsLogon () const
	Get state if frame is logon frame. More...

bool	IsRandomAccess () const
	Get state if frame is random access frame. More...

bool	IsSubdivided () const
	Get wether this frame is subdivided or not. More...

Static Public Attributes
static const uint16_t	m_maxTimeSlotCount = SatConstVariables::MAXIMUM_TIME_SLOT_ID + 1

Private Types
typedef std::map< uint16_t, SatTimeSlotConfContainer_t >	SatTimeSlotConfMap_t

Private Member Functions
uint16_t	AddTimeSlotConf (Ptr< SatTimeSlotConf > conf)
	Add time slot. More...

Private Attributes
uint8_t	m_allocationChannel

double	m_bandwidthHz

Ptr< SatBtuConf >	m_btuConf

uint16_t	m_carrierCount

Time	m_duration

uint8_t	m_guardTimeSymbols

bool	m_isLogon

bool	m_isRandomAccess

uint32_t	m_maxSymbolsPerCarrier

uint32_t	m_minPayloadPerCarrierInBytes

Ptr< SatFrameConf >	m_parent

SatTimeSlotConfMap_t	m_timeSlotConfMap

Ptr< SatWaveformConf >	m_waveformConf

Detailed Description

This class implements configuration for frames (for super frames)

Definition at line 252 of file satellite-frame-conf.h.

Member Typedef Documentation

◆ SatTimeSlotConfContainer_t

typedef std::vector<Ptr<SatTimeSlotConf> > ns3::SatFrameConf::SatTimeSlotConfContainer_t

Define type SatTimeSlotConfContainer_t.

Definition at line 258 of file satellite-frame-conf.h.

◆ SatTimeSlotConfMap_t

typedef std::map<uint16_t, SatTimeSlotConfContainer_t> ns3::SatFrameConf::SatTimeSlotConfMap_t

private

Definition at line 485 of file satellite-frame-conf.h.

Constructor & Destructor Documentation

◆ SatFrameConf() [1/2]

ns3::SatFrameConf::SatFrameConf ( )

Default constructor for SatFrameConf.

Definition at line 122 of file satellite-frame-conf.cc.

◆ SatFrameConf() [2/2]

ns3::SatFrameConf::SatFrameConf ( SatFrameConfParams_t parameters )

Constructor for SatFrameConf.

Parameters

parameters Parameters to construct the frame configuration with

Definition at line 139 of file satellite-frame-conf.cc.

References AddTimeSlotConf(), m_bandwidthHz, m_btuConf, m_carrierCount, ns3::SatFrameConf::SatFrameConfParams_t::m_checkSlotLimit, ns3::SatFrameConf::SatFrameConfParams_t::m_defaultWaveformInUse, m_duration, ns3::SatFrameConf::SatFrameConfParams_t::m_guardTimeSymbols, m_guardTimeSymbols, m_maxSymbolsPerCarrier, m_maxTimeSlotCount, m_minPayloadPerCarrierInBytes, ns3::SatFrameConf::SatFrameConfParams_t::m_targetDuration, m_waveformConf, and ns3::SatTimeSlotConf::SLOT_TYPE_TRC.

Here is the call graph for this function:

◆ ~SatFrameConf()

ns3::SatFrameConf::~SatFrameConf ( )

Destructor for SatFrameConf.

Definition at line 228 of file satellite-frame-conf.cc.

Member Function Documentation

◆ AddTimeSlotConf()

uint16_t ns3::SatFrameConf::AddTimeSlotConf ( Ptr< SatTimeSlotConf > conf )

private

Add time slot.

Parameters

conf	Time slot configuration added.

Returns: ID of the added time slot.

Definition at line 367 of file satellite-frame-conf.cc.

References m_timeSlotConfMap.

Referenced by SatFrameConf().

Here is the caller graph for this function:

◆ GetAllocationChannelId()

uint8_t ns3::SatFrameConf::GetAllocationChannelId ( ) const

inline

Get allocation channel ID of this frame.

Definition at line 463 of file satellite-frame-conf.h.

References m_allocationChannel.

◆ GetBandwidthHz()

double ns3::SatFrameConf::GetBandwidthHz ( ) const

inline

Get bandwidth of the frame.

Returns: The bandwidth of frame in Hertz.

Definition at line 332 of file satellite-frame-conf.h.

References m_bandwidthHz.

◆ GetBtuConf()

Ptr<SatBtuConf> ns3::SatFrameConf::GetBtuConf ( ) const

inline

Get BTU conf of the frame.

Returns: The BTU conf of frame.

Definition at line 410 of file satellite-frame-conf.h.

References m_btuConf.

◆ GetCarrierBandwidthHz()

double ns3::SatFrameConf::GetCarrierBandwidthHz ( SatEnums::CarrierBandwidthType_t bandwidthType ) const

Get carrier bandwidth in frame.

Parameters

bandwidthType Type of bandwidth requested.

Returns: The carrier bandwidth in frame in hertz.

Definition at line 249 of file satellite-frame-conf.cc.

References ns3::SatEnums::ALLOCATED_BANDWIDTH, ns3::SatEnums::EFFECTIVE_BANDWIDTH, m_btuConf, and ns3::SatEnums::OCCUPIED_BANDWIDTH.

◆ GetCarrierCount()

uint16_t ns3::SatFrameConf::GetCarrierCount ( ) const

inline

Get carrier count of the frame.

Returns: The carrier count of the frame.

Definition at line 420 of file satellite-frame-conf.h.

References m_carrierCount.

◆ GetCarrierFrequencyHz()

double ns3::SatFrameConf::GetCarrierFrequencyHz ( uint16_t carrierId ) const

Get carrier center frequency in frame.

Returns: The carrier bandwidth in frame in hertz.

Definition at line 234 of file satellite-frame-conf.cc.

References m_btuConf, and m_carrierCount.

◆ GetCarrierMaxSymbols()

uint32_t ns3::SatFrameConf::GetCarrierMaxSymbols ( ) const

inline

Get maximum symbols in carrier.

Returns: maximum symbols in carrier

Definition at line 352 of file satellite-frame-conf.h.

References m_maxSymbolsPerCarrier.

◆ GetCarrierMinPayloadInBytes()

uint32_t ns3::SatFrameConf::GetCarrierMinPayloadInBytes ( ) const

inline

Get minimum payload of a carrier in bytes.

Returns: minimum payload of a carrier in bytes

Definition at line 362 of file satellite-frame-conf.h.

References m_minPayloadPerCarrierInBytes.

◆ GetDuration()

Time ns3::SatFrameConf::GetDuration ( ) const

inline

Get duration of frame.

Returns: The duration of frame.

Definition at line 342 of file satellite-frame-conf.h.

References m_duration.

◆ GetGuardTimeSymbols()

uint8_t ns3::SatFrameConf::GetGuardTimeSymbols ( ) const

inline

Get the guard time configuration of this frame.

Definition at line 479 of file satellite-frame-conf.h.

References m_guardTimeSymbols.

◆ GetParent()

Ptr<SatFrameConf> ns3::SatFrameConf::GetParent ( ) const

inline

Definition at line 400 of file satellite-frame-conf.h.

References m_parent.

◆ GetSubdivisionLevel()

uint8_t ns3::SatFrameConf::GetSubdivisionLevel ( ) const

Get the subdivision level of this frame.

Returns: the amount of time this frame add its carriers split in two.

Definition at line 278 of file satellite-frame-conf.cc.

References m_parent.

◆ GetTimeSlotConf() [1/2]

Ptr< SatTimeSlotConf > ns3::SatFrameConf::GetTimeSlotConf	(	uint16_t	carrierId,
		uint16_t	index
	)		const

Get time slot conf of the frame.

Possible values for id are from 0 to Carrier count - 1.

Parameters

carrierId	Id of carrier which time slot is requested.
index	Id of the time slot requested in the carrier of the frame.

Returns: The requested time slot configuration of frame.

Definition at line 311 of file satellite-frame-conf.cc.

References m_timeSlotConfMap.

◆ GetTimeSlotConf() [2/2]

Ptr< SatTimeSlotConf > ns3::SatFrameConf::GetTimeSlotConf ( uint16_t index ) const

Get time slot configuration of the frame.

Possible values for id are from 0 to 2047.

Parameters

index Id of the time slot requested in frame.

Returns: The requested time slot configuration of frame.

Definition at line 332 of file satellite-frame-conf.cc.

References m_timeSlotConfMap.

◆ GetTimeSlotConfs()

SatFrameConf::SatTimeSlotConfContainer_t ns3::SatFrameConf::GetTimeSlotConfs ( uint16_t carrierId ) const

Get time slot of the specific carrier.

Parameters

carrierId Id of the carrier which time slots are requested.

Returns: Container containing time slots.

Definition at line 346 of file satellite-frame-conf.cc.

References m_timeSlotConfMap.

◆ GetTimeSlotCount()

uint16_t ns3::SatFrameConf::GetTimeSlotCount ( ) const

Get time slot count of the frame.

Returns: The requested time slot count of frame.

Definition at line 296 of file satellite-frame-conf.cc.

References m_timeSlotConfMap.

◆ GetWaveformConf()

Ptr<SatWaveformConf> ns3::SatFrameConf::GetWaveformConf ( ) const

inline

Get waveform configuration of this frame.

Definition at line 471 of file satellite-frame-conf.h.

References m_waveformConf.

◆ IsLogon()

bool ns3::SatFrameConf::IsLogon ( ) const

inline

Get state if frame is logon frame.

Returns: Is frame logon frame [true or false]

Definition at line 455 of file satellite-frame-conf.h.

References m_isLogon.

◆ IsRandomAccess()

bool ns3::SatFrameConf::IsRandomAccess ( ) const

inline

Get state if frame is random access frame.

Returns: Is frame random access frame [true or false]

Definition at line 445 of file satellite-frame-conf.h.

References m_isRandomAccess.

◆ IsSubdivided()

bool ns3::SatFrameConf::IsSubdivided ( ) const

inline

Get wether this frame is subdivided or not.

Returns: true if this frame is subdivided, false otherwise.

Definition at line 387 of file satellite-frame-conf.h.

References m_parent.

Member Data Documentation

◆ m_allocationChannel

uint8_t ns3::SatFrameConf::m_allocationChannel

private

Definition at line 495 of file satellite-frame-conf.h.

Referenced by GetAllocationChannelId().

◆ m_bandwidthHz

double ns3::SatFrameConf::m_bandwidthHz

private

Definition at line 487 of file satellite-frame-conf.h.

Referenced by SatFrameConf(), and GetBandwidthHz().

◆ m_btuConf

Ptr<SatBtuConf> ns3::SatFrameConf::m_btuConf

private

Definition at line 493 of file satellite-frame-conf.h.

Referenced by SatFrameConf(), GetBtuConf(), GetCarrierBandwidthHz(), and GetCarrierFrequencyHz().

◆ m_carrierCount

uint16_t ns3::SatFrameConf::m_carrierCount

private

Definition at line 496 of file satellite-frame-conf.h.

Referenced by SatFrameConf(), GetCarrierCount(), and GetCarrierFrequencyHz().

◆ m_duration

Time ns3::SatFrameConf::m_duration

private

Definition at line 488 of file satellite-frame-conf.h.

Referenced by SatFrameConf(), and GetDuration().

◆ m_guardTimeSymbols

uint8_t ns3::SatFrameConf::m_guardTimeSymbols

private

Definition at line 500 of file satellite-frame-conf.h.

Referenced by SatFrameConf(), and GetGuardTimeSymbols().

◆ m_isLogon

bool ns3::SatFrameConf::m_isLogon

private

Definition at line 490 of file satellite-frame-conf.h.

Referenced by IsLogon().

◆ m_isRandomAccess

bool ns3::SatFrameConf::m_isRandomAccess

private

Definition at line 489 of file satellite-frame-conf.h.

Referenced by IsRandomAccess().

◆ m_maxSymbolsPerCarrier

uint32_t ns3::SatFrameConf::m_maxSymbolsPerCarrier

private

Definition at line 497 of file satellite-frame-conf.h.

Referenced by SatFrameConf(), and GetCarrierMaxSymbols().

◆ m_maxTimeSlotCount

const uint16_t ns3::SatFrameConf::m_maxTimeSlotCount = SatConstVariables::MAXIMUM_TIME_SLOT_ID + 1

static

Definition at line 260 of file satellite-frame-conf.h.

Referenced by SatFrameConf(), and ns3::SatFrameAllocator::GenerateTimeSlots().

◆ m_minPayloadPerCarrierInBytes

uint32_t ns3::SatFrameConf::m_minPayloadPerCarrierInBytes

private

Definition at line 498 of file satellite-frame-conf.h.

Referenced by SatFrameConf(), and GetCarrierMinPayloadInBytes().

◆ m_parent

Ptr<SatFrameConf> ns3::SatFrameConf::m_parent

private

Definition at line 492 of file satellite-frame-conf.h.

Referenced by GetParent(), GetSubdivisionLevel(), and IsSubdivided().

◆ m_timeSlotConfMap

SatTimeSlotConfMap_t ns3::SatFrameConf::m_timeSlotConfMap

private

Definition at line 499 of file satellite-frame-conf.h.

Referenced by AddTimeSlotConf(), GetTimeSlotConf(), GetTimeSlotConfs(), and GetTimeSlotCount().

◆ m_waveformConf

Ptr<SatWaveformConf> ns3::SatFrameConf::m_waveformConf

private

Definition at line 494 of file satellite-frame-conf.h.

Referenced by SatFrameConf(), and GetWaveformConf().

The documentation for this class was generated from the following files:

/builds/sns3/satellite/satellite/model/satellite-frame-conf.h
/builds/sns3/satellite/satellite/model/satellite-frame-conf.cc

Classes

Public Types

Public Member Functions

Static Public Attributes

Private Types

Private Member Functions

Private Attributes

Detailed Description

Member Typedef Documentation

◆ SatTimeSlotConfContainer_t

◆ SatTimeSlotConfMap_t

Constructor & Destructor Documentation

◆ SatFrameConf() [1/2]

◆ SatFrameConf() [2/2]

◆ ~SatFrameConf()

Member Function Documentation

◆ AddTimeSlotConf()

◆ GetAllocationChannelId()

◆ GetBandwidthHz()

◆ GetBtuConf()

◆ GetCarrierBandwidthHz()

◆ GetCarrierCount()

◆ GetCarrierFrequencyHz()

◆ GetCarrierMaxSymbols()

◆ GetCarrierMinPayloadInBytes()

◆ GetDuration()

◆ GetGuardTimeSymbols()

◆ GetParent()

◆ GetSubdivisionLevel()

◆ GetTimeSlotConf() [1/2]

◆ GetTimeSlotConf() [2/2]

◆ GetTimeSlotConfs()

◆ GetTimeSlotCount()

◆ GetWaveformConf()

◆ IsLogon()

◆ IsRandomAccess()

◆ IsSubdivided()

Member Data Documentation

◆ m_allocationChannel

◆ m_bandwidthHz

◆ m_btuConf

◆ m_carrierCount

◆ m_duration

◆ m_guardTimeSymbols

◆ m_isLogon

◆ m_isRandomAccess

◆ m_maxSymbolsPerCarrier

◆ m_maxTimeSlotCount

◆ m_minPayloadPerCarrierInBytes

◆ m_parent

◆ m_timeSlotConfMap

◆ m_waveformConf
