Class for environmental variables. More...

#include "satellite-env-variables.h"

Inheritance diagram for ns3::SatEnvVariables:

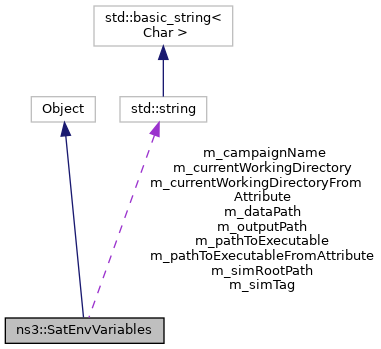

Collaboration diagram for ns3::SatEnvVariables:

Public Member Functions
	SatEnvVariables ()
	Constructor. More...

	~SatEnvVariables ()
	Destructor. More...

void	CreateDirectory (std::string path)
	Function for creating a directory. More...

void	DoDispose ()
	Reset class NOTICE: this function is meant to me used only in test cases, where issues with singletons might arise. More...

void	DoInitialize ()
	Initialize class NOTICE: this function is meant to me used only in test cases, where issues with singletons might arise. More...

std::string	GetCurrentDateAndTime ()
	Returns current real world date and time. More...

std::string	GetCurrentWorkingDirectory ()
	Function for getting the path to current working directory. More...

std::string	GetDataPath ()
	Function for locating the data folder. More...

virtual TypeId	GetInstanceTypeId (void) const
	Get the type ID of instance. More...

std::string	GetOutputPath ()
	Function for getting the simulation folder. More...

std::string	GetPathToExecutable ()
	Function for getting the path to executable. More...

bool	IsValidDirectory (std::string path)
	Function for checking if the directory exists. More...

bool	IsValidFile (std::string pathToFile)
	Function for checking if the file exists. More...

std::string	LocateDataDirectory ()
	Function for locating the data directory within the NS-3 simulator folder. More...

std::string	LocateDirectory (std::string initialPath)
	Function for locating a specific directory within the NS-3 simulator folder. More...

std::string	LocateFile (std::string initialPath)
	Function for locating a specific file within the NS-3 simulator folder. More...

void	SetCurrentWorkingDirectory (std::string currentWorkingDirectory)
	Function for setting the path to current working directory. More...

void	SetOutputPath (std::string outputPath)
	Method for setting the simulation output path. More...

void	SetOutputVariables (std::string campaignName, std::string simTag, bool enableOutputOverwrite)
	Function for setting the output variables. More...

void	SetPathToExecutable (std::string pathToExecutable)
	Function for setting the path to executable. More...

Static Public Member Functions
static TypeId	GetTypeId (void)
	NS-3 function for type id. More...

Private Member Functions
std::string	AddToPath (std::string path, std::string stringToAdd)
	Function for forming the next level of a path. More...

void	DumpRevisionDiff (std::string dataPath)

void	DumpSimulationInformation ()
	Function for outputting the most essential simulation specific environmental information. More...

void	ExecuteCommandAndReadOutput (std::string command, Ptr< SatOutputFileStreamStringContainer > outputContainer)
	Function for executing the command and inserting the output into a string container. More...

std::string	FormOutputPath (std::string simRootPath, std::string campaignName, std::string simTag, std::string safetyTag)
	Function for forming the output path. More...

std::string	InitializeOutputFolders (std::string campaignName, std::string simTag, bool enableOutputOverwrite)
	Function for forming the output path and directory structure. More...

Private Attributes
std::string	m_campaignName
	Simulation campaign name. More...

std::string	m_currentWorkingDirectory
	Path to current working directory. More...

std::string	m_currentWorkingDirectoryFromAttribute
	Path to current working directory (attribute value) More...

std::string	m_dataPath
	Default data path. More...

bool	m_enableOutputOverwrite
	Enable simulation output overwrite. More...

bool	m_enableSimInfoDiffOutput
	Is simulation information diff output enabled. More...

bool	m_enableSimInfoOutput
	Is simulation information output enabled. More...

bool	m_excludeDataFolderFromDiff
	Is data folder excluded from the simulation information diff. More...

bool	m_isInitialized
	Flag for disposing and initializing. More...

bool	m_isOutputPathInitialized
	Is output path initialized. More...

uint32_t	m_levelsToCheck
	How many directory levels to check for data path. More...

std::string	m_outputPath
	Result output path. More...

std::string	m_pathToExecutable
	Path to executable. More...

std::string	m_pathToExecutableFromAttribute
	Path to executable (attribute value) More...

std::string	m_simRootPath
	Path to the simulation output root folder. More...

std::string	m_simTag
	Tag related to the current simulation. More...

Detailed Description

Class for environmental variables.

The class is used for storing information on environmental variables, e.g., the current working directory and path to data folder. The class implements functionality for locating directories within the NS-3 simulator folder. Certain variables can be overwritten with attributes.

Definition at line 43 of file satellite-env-variables.h.

Constructor & Destructor Documentation

◆ SatEnvVariables()

ns3::SatEnvVariables::SatEnvVariables ( )

Constructor.

Definition at line 107 of file satellite-env-variables.cc.

◆ ~SatEnvVariables()

ns3::SatEnvVariables::~SatEnvVariables ( )

Destructor.

Definition at line 272 of file satellite-env-variables.cc.

Member Function Documentation

◆ AddToPath()

std::string ns3::SatEnvVariables::AddToPath	(	std::string	path,
		std::string	stringToAdd
	)

private

Function for forming the next level of a path.

Parameters

path	path
stringToAdd	string to be added to the path

Returns: combined path

Definition at line 533 of file satellite-env-variables.cc.

Referenced by FormOutputPath(), and InitializeOutputFolders().

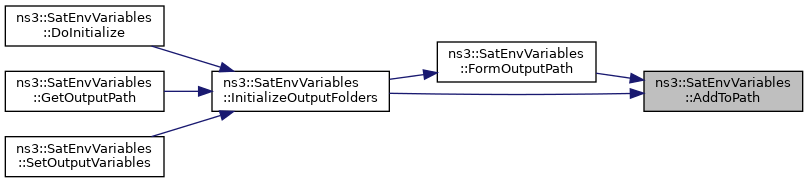

Here is the caller graph for this function:

◆ CreateDirectory()

void ns3::SatEnvVariables::CreateDirectory ( std::string path )

Function for creating a directory.

Parameters

path	path to the directory to be created

Definition at line 555 of file satellite-env-variables.cc.

Referenced by InitializeOutputFolders().

Here is the caller graph for this function:

◆ DoDispose()

void ns3::SatEnvVariables::DoDispose ( void )

Reset class NOTICE: this function is meant to me used only in test cases, where issues with singletons might arise.

Definition at line 208 of file satellite-env-variables.cc.

References m_currentWorkingDirectory, m_isInitialized, m_isOutputPathInitialized, and m_pathToExecutable.

◆ DoInitialize()

void ns3::SatEnvVariables::DoInitialize ( void )

Initialize class NOTICE: this function is meant to me used only in test cases, where issues with singletons might arise.

Definition at line 136 of file satellite-env-variables.cc.

References DumpSimulationInformation(), InitializeOutputFolders(), IsValidDirectory(), LocateDataDirectory(), m_campaignName, m_currentWorkingDirectory, m_enableOutputOverwrite, m_enableSimInfoOutput, m_isInitialized, m_isOutputPathInitialized, m_pathToExecutable, and m_simTag.

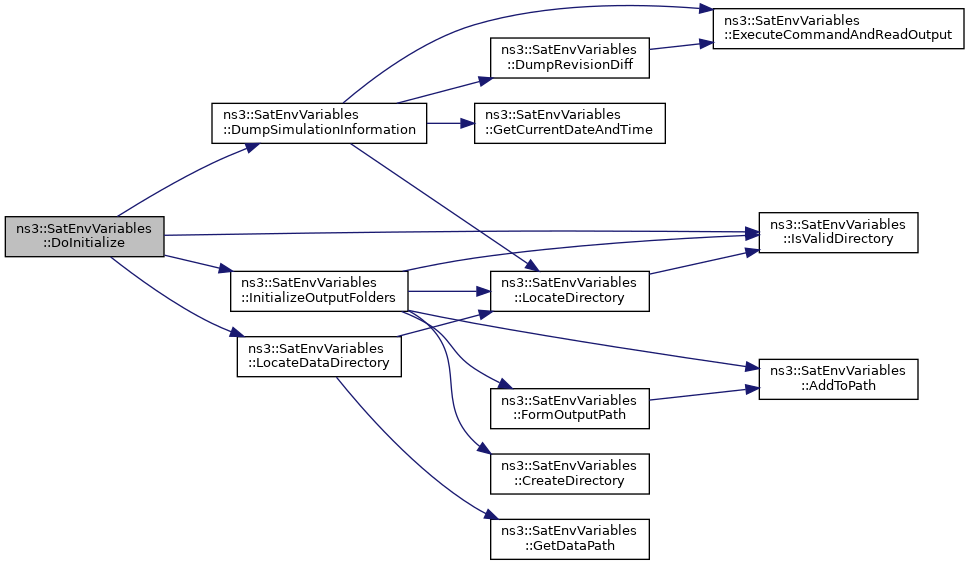

Here is the call graph for this function:

◆ DumpRevisionDiff()

void ns3::SatEnvVariables::DumpRevisionDiff ( std::string dataPath )

private

Parameters

dataPath

Definition at line 641 of file satellite-env-variables.cc.

References ExecuteCommandAndReadOutput(), m_dataPath, and m_excludeDataFolderFromDiff.

Referenced by DumpSimulationInformation().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ DumpSimulationInformation()

void ns3::SatEnvVariables::DumpSimulationInformation ( )

private

Function for outputting the most essential simulation specific environmental information.

Definition at line 611 of file satellite-env-variables.cc.

References DumpRevisionDiff(), ExecuteCommandAndReadOutput(), GetCurrentDateAndTime(), LocateDirectory(), m_enableSimInfoDiffOutput, and m_outputPath.

Referenced by DoInitialize().

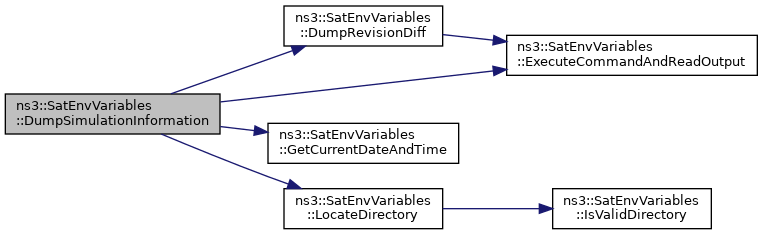

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ExecuteCommandAndReadOutput()

void ns3::SatEnvVariables::ExecuteCommandAndReadOutput	(	std::string	command,
		Ptr< SatOutputFileStreamStringContainer >	outputContainer
	)

private

Function for executing the command and inserting the output into a string container.

Parameters

command	command to be executed
outputContainer	pointer to output container

Definition at line 585 of file satellite-env-variables.cc.

Referenced by DumpRevisionDiff(), and DumpSimulationInformation().

Here is the caller graph for this function:

◆ FormOutputPath()

std::string ns3::SatEnvVariables::FormOutputPath	(	std::string	simRootPath,
		std::string	campaignName,
		std::string	simTag,
		std::string	safetyTag
	)

private

Function for forming the output path.

Parameters

simRootPath	simulation output root path
campaignName	simulation campaign name
simTag	simulation tag
safetyTag	safety tag for avoiding overwrites

Returns: path to the created folder

Definition at line 506 of file satellite-env-variables.cc.

References AddToPath().

Referenced by InitializeOutputFolders().

Here is the call graph for this function:

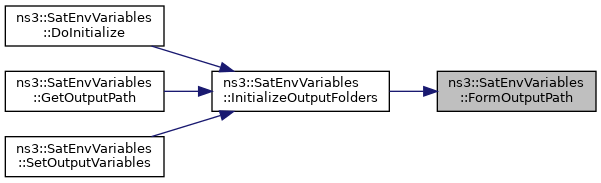

Here is the caller graph for this function:

◆ GetCurrentDateAndTime()

std::string ns3::SatEnvVariables::GetCurrentDateAndTime ( )

Returns current real world date and time.

Returns: date and time as a string

Definition at line 565 of file satellite-env-variables.cc.

Referenced by DumpSimulationInformation().

Here is the caller graph for this function:

◆ GetCurrentWorkingDirectory()

std::string ns3::SatEnvVariables::GetCurrentWorkingDirectory ( )

Function for getting the path to current working directory.

Returns: path to current working directory

Definition at line 280 of file satellite-env-variables.cc.

References m_currentWorkingDirectory, and m_currentWorkingDirectoryFromAttribute.

◆ GetDataPath()

std::string ns3::SatEnvVariables::GetDataPath ( )

inline

Function for locating the data folder.

Returns: path to data folder

Definition at line 102 of file satellite-env-variables.h.

References m_dataPath.

Referenced by LocateDataDirectory().

Here is the caller graph for this function:

◆ GetInstanceTypeId()

TypeId ns3::SatEnvVariables::GetInstanceTypeId ( void ) const

virtual

Get the type ID of instance.

Returns: the object TypeId

Definition at line 102 of file satellite-env-variables.cc.

References GetTypeId().

Here is the call graph for this function:

◆ GetOutputPath()

std::string ns3::SatEnvVariables::GetOutputPath ( )

Function for getting the simulation folder.

Returns: path to the simulation folder

Definition at line 238 of file satellite-env-variables.cc.

References InitializeOutputFolders(), m_campaignName, m_enableOutputOverwrite, m_isOutputPathInitialized, m_outputPath, and m_simTag.

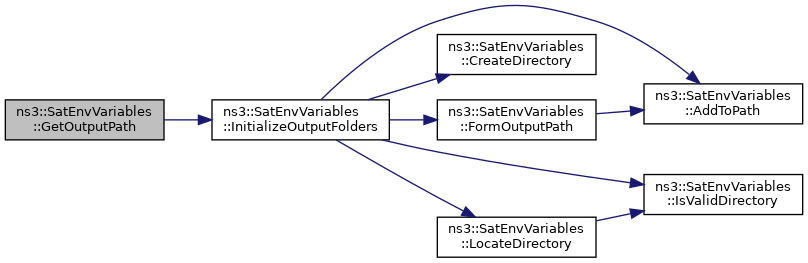

Here is the call graph for this function:

◆ GetPathToExecutable()

std::string ns3::SatEnvVariables::GetPathToExecutable ( )

Function for getting the path to executable.

Returns: path to executable

Definition at line 301 of file satellite-env-variables.cc.

References m_pathToExecutable, and m_pathToExecutableFromAttribute.

◆ GetTypeId()

TypeId ns3::SatEnvVariables::GetTypeId ( void )

static

NS-3 function for type id.

Returns: type id

Definition at line 46 of file satellite-env-variables.cc.

References m_campaignName, m_currentWorkingDirectoryFromAttribute, m_dataPath, m_enableOutputOverwrite, m_enableSimInfoDiffOutput, m_enableSimInfoOutput, m_excludeDataFolderFromDiff, m_pathToExecutableFromAttribute, and m_simTag.

Referenced by GetInstanceTypeId().

Here is the caller graph for this function:

◆ InitializeOutputFolders()

std::string ns3::SatEnvVariables::InitializeOutputFolders	(	std::string	campaignName,
		std::string	simTag,
		bool	enableOutputOverwrite
	)

private

Function for forming the output path and directory structure.

Parameters

campaignName	simulation campaign name
simTag	simulation tag
enableOutputOverwrite	is simulation output overwrite enabled

Returns: path to the created folder

Definition at line 445 of file satellite-env-variables.cc.

References AddToPath(), CreateDirectory(), FormOutputPath(), IsValidDirectory(), LocateDirectory(), m_isOutputPathInitialized, m_outputPath, and m_simRootPath.

Referenced by DoInitialize(), GetOutputPath(), and SetOutputVariables().

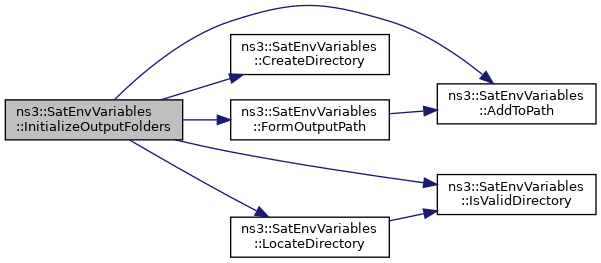

Here is the call graph for this function:

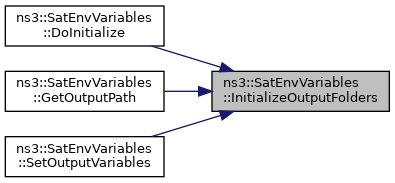

Here is the caller graph for this function:

◆ IsValidDirectory()

bool ns3::SatEnvVariables::IsValidDirectory ( std::string path )

Function for checking if the directory exists.

Returns: does the directory exist

Definition at line 321 of file satellite-env-variables.cc.

Referenced by DoInitialize(), InitializeOutputFolders(), LocateDirectory(), and SetOutputPath().

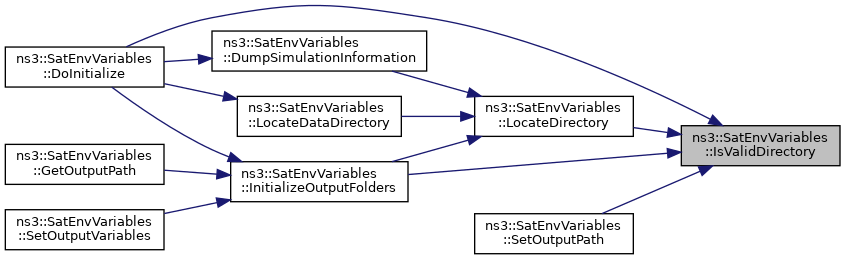

Here is the caller graph for this function:

◆ IsValidFile()

bool ns3::SatEnvVariables::IsValidFile ( std::string pathToFile )

Function for checking if the file exists.

Returns: does the file exist

Definition at line 342 of file satellite-env-variables.cc.

Referenced by LocateFile().

Here is the caller graph for this function:

◆ LocateDataDirectory()

std::string ns3::SatEnvVariables::LocateDataDirectory ( )

Function for locating the data directory within the NS-3 simulator folder.

Returns: path to the data directory

Definition at line 355 of file satellite-env-variables.cc.

References GetDataPath(), and LocateDirectory().

Referenced by DoInitialize().

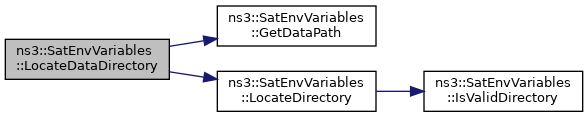

Here is the call graph for this function:

Here is the caller graph for this function:

◆ LocateDirectory()

std::string ns3::SatEnvVariables::LocateDirectory ( std::string initialPath )

Function for locating a specific directory within the NS-3 simulator folder.

Parameters

initialPath initial search path

Returns: path to the located directory

Definition at line 363 of file satellite-env-variables.cc.

References IsValidDirectory(), and m_levelsToCheck.

Referenced by DumpSimulationInformation(), InitializeOutputFolders(), and LocateDataDirectory().

Here is the call graph for this function:

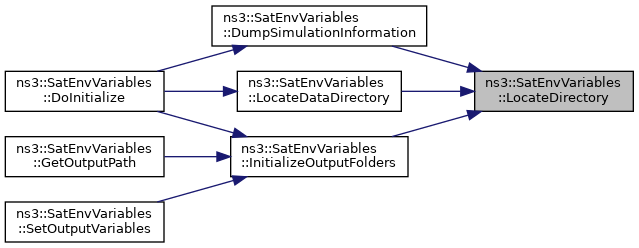

Here is the caller graph for this function:

◆ LocateFile()

std::string ns3::SatEnvVariables::LocateFile ( std::string initialPath )

Function for locating a specific file within the NS-3 simulator folder.

Parameters

initialPath initial search path for the file

Returns: path to the located file

Definition at line 404 of file satellite-env-variables.cc.

References IsValidFile(), and m_levelsToCheck.

Here is the call graph for this function:

◆ SetCurrentWorkingDirectory()

void ns3::SatEnvVariables::SetCurrentWorkingDirectory ( std::string currentWorkingDirectory )

Function for setting the path to current working directory.

Parameters

currentWorkingDirectory path to current working directory

Definition at line 222 of file satellite-env-variables.cc.

References m_currentWorkingDirectory.

◆ SetOutputPath()

void ns3::SatEnvVariables::SetOutputPath ( std::string outputPath )

Method for setting the simulation output path.

The path must exist.

Parameters

outputPath The new output path.

Definition at line 251 of file satellite-env-variables.cc.

References IsValidDirectory(), m_isOutputPathInitialized, and m_outputPath.

Here is the call graph for this function:

◆ SetOutputVariables()

void ns3::SatEnvVariables::SetOutputVariables	(	std::string	campaignName,
		std::string	simTag,
		bool	enableOutputOverwrite
	)

Function for setting the output variables.

The function also creates the output folder based on the new variables. NOTICE: this function is meant to me used only in test cases, where issues with singletons might arise. In any other case the class attributes should be used instead.

Parameters

campaignName	simulation campaign name
simTag	simulation tag
enableOutputOverwrite	is simulation output overwrite enabled

Definition at line 259 of file satellite-env-variables.cc.

References InitializeOutputFolders(), m_campaignName, m_enableOutputOverwrite, and m_simTag.

Here is the call graph for this function:

◆ SetPathToExecutable()

void ns3::SatEnvVariables::SetPathToExecutable ( std::string pathToExecutable )

Function for setting the path to executable.

Parameters

pathToExecutable path to executable

Definition at line 230 of file satellite-env-variables.cc.

References m_pathToExecutable.

Member Data Documentation

◆ m_campaignName

std::string ns3::SatEnvVariables::m_campaignName

private

Simulation campaign name.

Affects the simulation output folder.

Definition at line 273 of file satellite-env-variables.h.

Referenced by DoInitialize(), GetOutputPath(), GetTypeId(), and SetOutputVariables().

◆ m_currentWorkingDirectory

std::string ns3::SatEnvVariables::m_currentWorkingDirectory

private

Path to current working directory.

Definition at line 238 of file satellite-env-variables.h.

Referenced by DoDispose(), DoInitialize(), GetCurrentWorkingDirectory(), and SetCurrentWorkingDirectory().

◆ m_currentWorkingDirectoryFromAttribute

std::string ns3::SatEnvVariables::m_currentWorkingDirectoryFromAttribute

private

Path to current working directory (attribute value)

Definition at line 248 of file satellite-env-variables.h.

Referenced by GetCurrentWorkingDirectory(), and GetTypeId().

◆ m_dataPath

std::string ns3::SatEnvVariables::m_dataPath

private

Default data path.

Definition at line 263 of file satellite-env-variables.h.

Referenced by DumpRevisionDiff(), GetDataPath(), and GetTypeId().

◆ m_enableOutputOverwrite

bool ns3::SatEnvVariables::m_enableOutputOverwrite

private

Enable simulation output overwrite.

Definition at line 288 of file satellite-env-variables.h.

Referenced by DoInitialize(), GetOutputPath(), GetTypeId(), and SetOutputVariables().

◆ m_enableSimInfoDiffOutput

bool ns3::SatEnvVariables::m_enableSimInfoDiffOutput

private

Is simulation information diff output enabled.

Definition at line 303 of file satellite-env-variables.h.

Referenced by DumpSimulationInformation(), and GetTypeId().

◆ m_enableSimInfoOutput

bool ns3::SatEnvVariables::m_enableSimInfoOutput

private

Is simulation information output enabled.

Definition at line 298 of file satellite-env-variables.h.

Referenced by DoInitialize(), and GetTypeId().

◆ m_excludeDataFolderFromDiff

bool ns3::SatEnvVariables::m_excludeDataFolderFromDiff

private

Is data folder excluded from the simulation information diff.

Definition at line 308 of file satellite-env-variables.h.

Referenced by DumpRevisionDiff(), and GetTypeId().

◆ m_isInitialized

bool ns3::SatEnvVariables::m_isInitialized

private

Flag for disposing and initializing.

Definition at line 313 of file satellite-env-variables.h.

Referenced by DoDispose(), and DoInitialize().

◆ m_isOutputPathInitialized

bool ns3::SatEnvVariables::m_isOutputPathInitialized

private

Is output path initialized.

Definition at line 293 of file satellite-env-variables.h.

Referenced by DoDispose(), DoInitialize(), GetOutputPath(), InitializeOutputFolders(), and SetOutputPath().

◆ m_levelsToCheck

uint32_t ns3::SatEnvVariables::m_levelsToCheck

private

How many directory levels to check for data path.

Definition at line 258 of file satellite-env-variables.h.

Referenced by LocateDirectory(), and LocateFile().

◆ m_outputPath

std::string ns3::SatEnvVariables::m_outputPath

private

Result output path.

Definition at line 268 of file satellite-env-variables.h.

Referenced by DumpSimulationInformation(), GetOutputPath(), InitializeOutputFolders(), and SetOutputPath().

◆ m_pathToExecutable

std::string ns3::SatEnvVariables::m_pathToExecutable

private

Path to executable.

Definition at line 243 of file satellite-env-variables.h.

Referenced by DoDispose(), DoInitialize(), GetPathToExecutable(), and SetPathToExecutable().

◆ m_pathToExecutableFromAttribute

std::string ns3::SatEnvVariables::m_pathToExecutableFromAttribute

private

Path to executable (attribute value)

Definition at line 253 of file satellite-env-variables.h.

Referenced by GetPathToExecutable(), and GetTypeId().

◆ m_simRootPath

std::string ns3::SatEnvVariables::m_simRootPath

private

Path to the simulation output root folder.

Definition at line 278 of file satellite-env-variables.h.

Referenced by InitializeOutputFolders().

◆ m_simTag

std::string ns3::SatEnvVariables::m_simTag

private

Tag related to the current simulation.

Definition at line 283 of file satellite-env-variables.h.

Referenced by DoInitialize(), GetOutputPath(), GetTypeId(), and SetOutputVariables().

The documentation for this class was generated from the following files:

/builds/sns3/satellite/satellite/utils/satellite-env-variables.h
/builds/sns3/satellite/satellite/utils/satellite-env-variables.cc

Public Member Functions

Static Public Member Functions

Private Member Functions

Private Attributes

Detailed Description

Constructor & Destructor Documentation

◆ SatEnvVariables()

◆ ~SatEnvVariables()

Member Function Documentation

◆ AddToPath()

◆ CreateDirectory()

◆ DoDispose()

◆ DoInitialize()

◆ DumpRevisionDiff()

◆ DumpSimulationInformation()

◆ ExecuteCommandAndReadOutput()

◆ FormOutputPath()

◆ GetCurrentDateAndTime()

◆ GetCurrentWorkingDirectory()

◆ GetDataPath()

◆ GetInstanceTypeId()

◆ GetOutputPath()

◆ GetPathToExecutable()

◆ GetTypeId()

◆ InitializeOutputFolders()

◆ IsValidDirectory()

◆ IsValidFile()

◆ LocateDataDirectory()

◆ LocateDirectory()

◆ LocateFile()

◆ SetCurrentWorkingDirectory()

◆ SetOutputPath()

◆ SetOutputVariables()

◆ SetPathToExecutable()

Member Data Documentation

◆ m_campaignName

◆ m_currentWorkingDirectory

◆ m_currentWorkingDirectoryFromAttribute

◆ m_dataPath

◆ m_enableOutputOverwrite

◆ m_enableSimInfoDiffOutput

◆ m_enableSimInfoOutput

◆ m_excludeDataFolderFromDiff

◆ m_isInitialized

◆ m_isOutputPathInitialized

◆ m_levelsToCheck

◆ m_outputPath

◆ m_pathToExecutable

◆ m_pathToExecutableFromAttribute

◆ m_simRootPath

◆ m_simTag
