ns3::SatCrdsaReplicaTag Class Reference

This class implements a tag that carries information about the slot IDs of CRDSA packet replicas. More...

#include "satellite-crdsa-replica-tag.h"

Inheritance diagram for ns3::SatCrdsaReplicaTag:

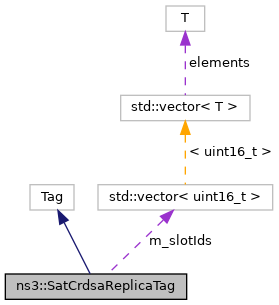

Collaboration diagram for ns3::SatCrdsaReplicaTag:

Public Member Functions
	SatCrdsaReplicaTag ()
	Default constructor. More...
	~SatCrdsaReplicaTag ()
	Destructor for SatCrdsaReplicaTag. More...
void	AddSlotId (uint16_t slotId)
virtual void	Deserialize (TagBuffer buffer)
	Deserializes information from buffer to this instance of SatCrdsaReplicaTag. More...
virtual TypeId	GetInstanceTypeId (void) const
	Get the type ID of instance. More...
virtual uint32_t	GetSerializedSize (void) const
	Get serialized size of SatCrdsaReplicaTag. More...
std::vector< uint16_t >	GetSlotIds (void)
virtual void	Print (std::ostream &os) const
	Print time stamp of this instance of SatCrdsaReplicaTag. More...
virtual void	Serialize (TagBuffer buffer) const
	Serializes information to buffer from this instance of SatCrdsaReplicaTag. More...

Static Public Member Functions
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Attributes
uint8_t	m_numOfIds
std::vector< uint16_t >	m_slotIds

Detailed Description

This class implements a tag that carries information about the slot IDs of CRDSA packet replicas.

This information is used to determine the CRDSA replicas within the CRDSA frame. The tag is added to each created CRDSA packet on the transmitter side and read from the CRDSA packet on the receiver side.

Definition at line 42 of file satellite-crdsa-replica-tag.h.

Constructor & Destructor Documentation

SatCrdsaReplicaTag()

ns3::SatCrdsaReplicaTag::SatCrdsaReplicaTag

(

)

Default constructor.

Definition at line 35 of file satellite-crdsa-replica-tag.cc.

~SatCrdsaReplicaTag()

ns3::SatCrdsaReplicaTag::~SatCrdsaReplicaTag

(

)

Destructor for SatCrdsaReplicaTag.

Definition at line 41 of file satellite-crdsa-replica-tag.cc.

References m_slotIds.

Member Function Documentation

AddSlotId()

void ns3::SatCrdsaReplicaTag::AddSlotId

(

uint16_t

slotId

)

Definition at line 65 of file satellite-crdsa-replica-tag.cc.

References m_numOfIds, and m_slotIds.

Referenced by ns3::SatUtMac::CreateCrdsaPacketInstances().

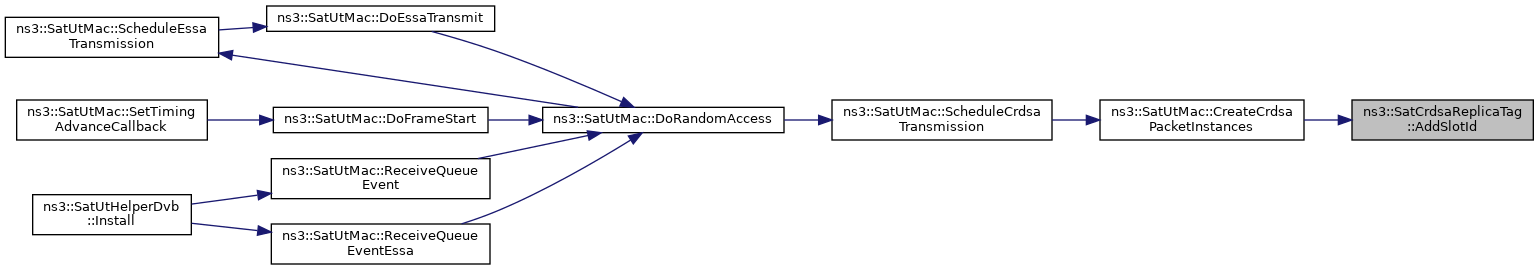

Here is the caller graph for this function:

Deserialize()

void ns3::SatCrdsaReplicaTag::Deserialize ( TagBuffer  buffer )

virtual

Deserializes information from buffer to this instance of SatCrdsaReplicaTag.

Parameters

buffer

Buffer from which the information is deserialized

Definition at line 101 of file satellite-crdsa-replica-tag.cc.

References m_numOfIds, and m_slotIds.

GetInstanceTypeId()

TypeId ns3::SatCrdsaReplicaTag::GetInstanceTypeId ( void  ) const

virtual

Get the type ID of instance.

Returns

the object TypeId

Definition at line 57 of file satellite-crdsa-replica-tag.cc.

References GetTypeId().

Here is the call graph for this function:

GetSerializedSize()

uint32_t ns3::SatCrdsaReplicaTag::GetSerializedSize ( void  ) const

virtual

Get serialized size of SatCrdsaReplicaTag.

Returns

Serialized size in bytes

Definition at line 80 of file satellite-crdsa-replica-tag.cc.

References m_slotIds.

GetSlotIds()

std::vector< uint16_t > ns3::SatCrdsaReplicaTag::GetSlotIds

(

void

)

Definition at line 73 of file satellite-crdsa-replica-tag.cc.

References m_slotIds.

Referenced by ns3::SatPhyRxCarrierPerFrame::AddCrdsaPacket().

Here is the caller graph for this function:

GetTypeId()

TypeId ns3::SatCrdsaReplicaTag::GetTypeId ( void  )

static

Get the type ID.

Returns

the object TypeId

Definition at line 49 of file satellite-crdsa-replica-tag.cc.

Referenced by GetInstanceTypeId().

Here is the caller graph for this function:

Print()

void ns3::SatCrdsaReplicaTag::Print ( std::ostream &  os ) const

virtual

Print time stamp of this instance of SatCrdsaReplicaTag.

Parameters

&os	Output stream to which tag timestamp is printed.

Definition at line 114 of file satellite-crdsa-replica-tag.cc.

References m_numOfIds, and m_slotIds.

Serialize()

void ns3::SatCrdsaReplicaTag::Serialize ( TagBuffer  buffer ) const

virtual

Serializes information to buffer from this instance of SatCrdsaReplicaTag.

Parameters

buffer

Buffer in which the information is serialized

Definition at line 88 of file satellite-crdsa-replica-tag.cc.

References m_numOfIds, and m_slotIds.

Member Data Documentation

m_numOfIds

uint8_t ns3::SatCrdsaReplicaTag::m_numOfIds

private

Definition at line 96 of file satellite-crdsa-replica-tag.h.

Referenced by AddSlotId(), Deserialize(), Print(), and Serialize().

m_slotIds

std::vector<uint16_t> ns3::SatCrdsaReplicaTag::m_slotIds

private

Definition at line 95 of file satellite-crdsa-replica-tag.h.

Referenced by ~SatCrdsaReplicaTag(), AddSlotId(), Deserialize(), GetSerializedSize(), GetSlotIds(), Print(), and Serialize().

---

The documentation for this class was generated from the following files:

• /builds/sns3/satellite/satellite/model/satellite-crdsa-replica-tag.h
• /builds/sns3/satellite/satellite/model/satellite-crdsa-replica-tag.cc
