The container to store control messages. More...

#include "satellite-control-message.h"

Inheritance diagram for ns3::SatControlMsgContainer:

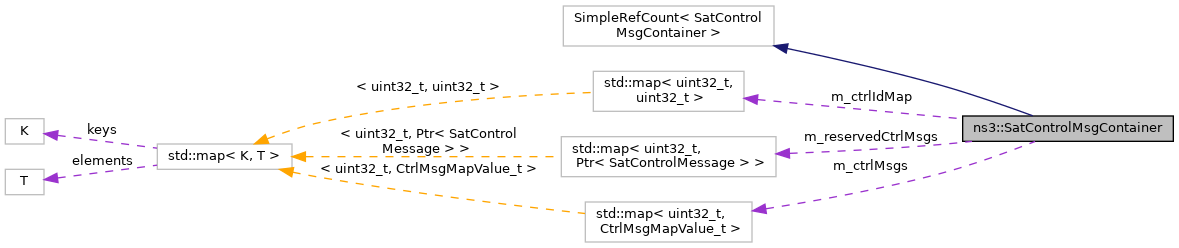

Collaboration diagram for ns3::SatControlMsgContainer:

Public Member Functions
	SatControlMsgContainer ()
	Default constructor for SatControlMsgContainer. More...

	SatControlMsgContainer (Time m_storeTime, bool deleteOnRead)
	Default constructor for SatControlMsgContainer. More...

	~SatControlMsgContainer ()
	Destructor for SatControlMsgContainer. More...

Ptr< SatControlMessage >	Read (uint32_t recvId)
	Read a control message. More...

uint32_t	ReserveIdAndStore (Ptr< SatControlMessage > controlMsg)
	Reserve an id and store a control message. More...

uint32_t	Send (uint32_t sendId)
	Add a control message. More...

Private Types
typedef std::map< uint32_t, uint32_t >	CtrlIdMap_t

typedef std::map< uint32_t, CtrlMsgMapValue_t >	CtrlMsgMap_t

typedef std::pair< Time, Ptr< SatControlMessage > >	CtrlMsgMapValue_t

typedef std::map< uint32_t, Ptr< SatControlMessage > >	ReservedCtrlMsgMap_t

Private Member Functions
void	CleanUpIdMap (uint32_t recvId)
	Do clean up for the Ctrl msg id map. More...

void	EraseFirst ()
	Erase first item from container. More...

Private Attributes
CtrlIdMap_t	m_ctrlIdMap

CtrlMsgMap_t	m_ctrlMsgs

bool	m_deleteOnRead
	Flag to tell, if message is deleted from container when read (get). More...

uint32_t	m_recvId

ReservedCtrlMsgMap_t	m_reservedCtrlMsgs

uint32_t	m_sendId

Time	m_storeTime
	Time to store a message in container. More...

EventId	m_storeTimeout

Detailed Description

The container to store control messages.

Container assigns two sequences of IDs for added messages.

Send/buffered IDs - used during buffering period between ND and MAC.
Receive IDs - used to indicate the receiver the id for the control PDU

Message are deleted after set store time expired for a message. Message is deleted already when read, if this functionality is enabled in creation time.

Container is needed to store control messages which content are not wanted to simulate inside packet.

The reason for two sets of IDs relate to two things:

The SatControlMessage Ptr needs to be stored also during buffering time (before it gets scheduling time)
The SatControlMsgContainer containers assume that the recv IDs are given in FIFO order.

Definition at line 1346 of file satellite-control-message.h.

Member Typedef Documentation

◆ CtrlIdMap_t

typedef std::map<uint32_t, uint32_t> ns3::SatControlMsgContainer::CtrlIdMap_t

private

Definition at line 1403 of file satellite-control-message.h.

◆ CtrlMsgMap_t

typedef std::map<uint32_t, CtrlMsgMapValue_t> ns3::SatControlMsgContainer::CtrlMsgMap_t

private

Definition at line 1405 of file satellite-control-message.h.

◆ CtrlMsgMapValue_t

typedef std::pair<Time, Ptr<SatControlMessage> > ns3::SatControlMsgContainer::CtrlMsgMapValue_t

private

Definition at line 1404 of file satellite-control-message.h.

◆ ReservedCtrlMsgMap_t

typedef std::map<uint32_t, Ptr<SatControlMessage> > ns3::SatControlMsgContainer::ReservedCtrlMsgMap_t

private

Definition at line 1402 of file satellite-control-message.h.

Constructor & Destructor Documentation

◆ SatControlMsgContainer() [1/2]

ns3::SatControlMsgContainer::SatControlMsgContainer ( )

Default constructor for SatControlMsgContainer.

Definition at line 1190 of file satellite-control-message.cc.

◆ SatControlMsgContainer() [2/2]

ns3::SatControlMsgContainer::SatControlMsgContainer	(	Time	m_storeTime,
		bool	deleteOnRead
	)

Default constructor for SatControlMsgContainer.

Definition at line 1199 of file satellite-control-message.cc.

◆ ~SatControlMsgContainer()

ns3::SatControlMsgContainer::~SatControlMsgContainer ( )

Destructor for SatControlMsgContainer.

Definition at line 1209 of file satellite-control-message.cc.

Member Function Documentation

◆ CleanUpIdMap()

void ns3::SatControlMsgContainer::CleanUpIdMap ( uint32_t recvId )

private

Do clean up for the Ctrl msg id map.

Currently it needs to erase a map entry based on value, which is not very efficient.

Parameters

recvId Ctrl msg id

Definition at line 1360 of file satellite-control-message.cc.

References m_ctrlIdMap.

Referenced by EraseFirst(), and Read().

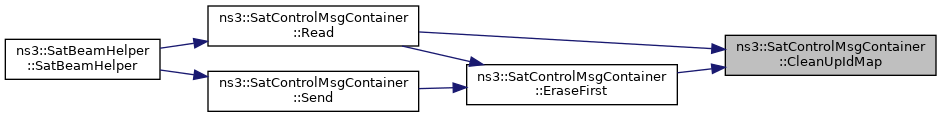

Here is the caller graph for this function:

◆ EraseFirst()

void ns3::SatControlMsgContainer::EraseFirst ( )

private

Erase first item from container.

Schedules a new erase call to this function with time left for next item in list (if container is not empty).

Definition at line 1338 of file satellite-control-message.cc.

References CleanUpIdMap(), m_ctrlMsgs, m_storeTime, and m_storeTimeout.

Referenced by Read(), and Send().

Here is the call graph for this function:

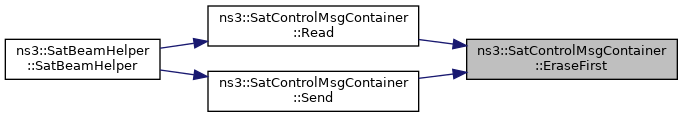

Here is the caller graph for this function:

◆ Read()

Ptr< SatControlMessage > ns3::SatControlMsgContainer::Read ( uint32_t recvId )

Read a control message.

Parameters

recvId Id of the message to read.

Returns: Pointer to message.

Definition at line 1295 of file satellite-control-message.cc.

References CleanUpIdMap(), EraseFirst(), m_ctrlMsgs, m_deleteOnRead, and m_storeTimeout.

Referenced by ns3::SatBeamHelper::SatBeamHelper().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ReserveIdAndStore()

uint32_t ns3::SatControlMsgContainer::ReserveIdAndStore ( Ptr< SatControlMessage > controlMsg )

Reserve an id and store a control message.

Parameters

controlMsg Pointer to message to be added.

Returns: Reserved send ID of the created added message.

Definition at line 1215 of file satellite-control-message.cc.

References m_reservedCtrlMsgs, and m_sendId.

Referenced by ns3::SatBeamHelper::SatBeamHelper().

Here is the caller graph for this function:

◆ Send()

uint32_t ns3::SatControlMsgContainer::Send ( uint32_t sendId )

Add a control message.

Parameters

sendId of the message to add.

Returns: Receive id given by the container.

Definition at line 1230 of file satellite-control-message.cc.

References EraseFirst(), m_ctrlIdMap, m_ctrlMsgs, m_recvId, m_reservedCtrlMsgs, m_storeTime, and m_storeTimeout.

Referenced by ns3::SatBeamHelper::SatBeamHelper().

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

◆ m_ctrlIdMap

CtrlIdMap_t ns3::SatControlMsgContainer::m_ctrlIdMap

private

Definition at line 1409 of file satellite-control-message.h.

Referenced by CleanUpIdMap(), and Send().

◆ m_ctrlMsgs

CtrlMsgMap_t ns3::SatControlMsgContainer::m_ctrlMsgs

private

Definition at line 1408 of file satellite-control-message.h.

Referenced by EraseFirst(), Read(), and Send().

◆ m_deleteOnRead

bool ns3::SatControlMsgContainer::m_deleteOnRead

private

Flag to tell, if message is deleted from container when read (get).

Definition at line 1425 of file satellite-control-message.h.

Referenced by Read().

◆ m_recvId

uint32_t ns3::SatControlMsgContainer::m_recvId

private

Definition at line 1411 of file satellite-control-message.h.

Referenced by Send().

◆ m_reservedCtrlMsgs

ReservedCtrlMsgMap_t ns3::SatControlMsgContainer::m_reservedCtrlMsgs

private

Definition at line 1407 of file satellite-control-message.h.

Referenced by ReserveIdAndStore(), and Send().

◆ m_sendId

uint32_t ns3::SatControlMsgContainer::m_sendId

private

Definition at line 1410 of file satellite-control-message.h.

Referenced by ReserveIdAndStore().

◆ m_storeTime

Time ns3::SatControlMsgContainer::m_storeTime

private

Time to store a message in container.

If m_deleteOnRead is set false, the message is always deleted only when this time is elapsed.

Definition at line 1420 of file satellite-control-message.h.

Referenced by EraseFirst(), and Send().

◆ m_storeTimeout

EventId ns3::SatControlMsgContainer::m_storeTimeout

private

Definition at line 1412 of file satellite-control-message.h.

Referenced by EraseFirst(), Read(), and Send().

The documentation for this class was generated from the following files:

/builds/sns3/satellite/satellite/model/satellite-control-message.h
/builds/sns3/satellite/satellite/model/satellite-control-message.cc
