Class for composite SINR output trace container. More...

#include "satellite-composite-sinr-output-trace-container.h"

Inheritance diagram for ns3::SatCompositeSinrOutputTraceContainer:

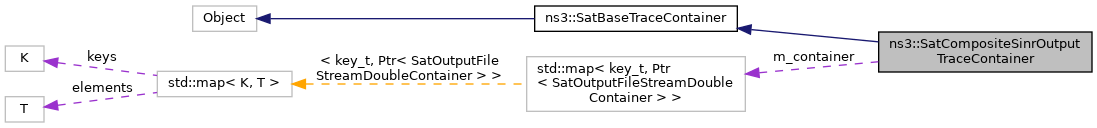

Collaboration diagram for ns3::SatCompositeSinrOutputTraceContainer:

Public Types
typedef std::map< key_t, Ptr< SatOutputFileStreamDoubleContainer > >	container_t
	typedef for map of containers
typedef std::pair< Address, SatEnums::ChannelType_t >	key_t
	typedef for map key

Public Member Functions
	SatCompositeSinrOutputTraceContainer ()
	Constructor.
	~SatCompositeSinrOutputTraceContainer ()
	Destructor.
void	AddToContainer (key_t key, std::vector< double > newItem)
	Add the vector containing the values to container matching the key.
void	DoDispose ()
	Do needed dispose actions.
void	EnableFigureOutput (bool enableFigureOutput)
	Function for enabling / disabling figure output.
void	Reset ()
	Function for resetting the variables.
Public Member Functions inherited from ns3::SatBaseTraceContainer
	SatBaseTraceContainer ()
	Constructor.
virtual	~SatBaseTraceContainer ()
	Destructor.

Static Public Member Functions
static TypeId	GetTypeId (void)
	NS-3 type id function.
Static Public Member Functions inherited from ns3::SatBaseTraceContainer
static TypeId	GetTypeId (void)
	NS-3 type id function.

Private Member Functions
Ptr< SatOutputFileStreamDoubleContainer >	AddNode (std::pair< Address, SatEnums::ChannelType_t > key)
	Function for adding the node to the map.
Ptr< SatOutputFileStreamDoubleContainer >	FindNode (key_t key)
	Function for finding the container matching the key.
void	WriteToFile ()
	Write the contents of a container matching to the key into a file.

Private Attributes
container_t	m_container
	Map for containers.
bool	m_enableFigureOutput
	Switch for figure output.

Additional Inherited Members
Static Public Attributes inherited from ns3::SatBaseTraceContainer
static const uint32_t	CSINR_TRACE_DEFAULT_FADING_VALUE_INDEX = 1
	Default sinr value index for composite sinr traces.
static const uint32_t	CSINR_TRACE_DEFAULT_NUMBER_OF_COLUMNS = 2
	Default number of columns for composite sinr traces.
static const uint32_t	FADING_TRACE_DEFAULT_FADING_VALUE_INDEX = 1
	Default fading value index for fading traces.
static const uint32_t	FADING_TRACE_DEFAULT_NUMBER_OF_COLUMNS = 2
	Default number of columns for fading traces.
static const uint32_t	INTF_TRACE_DEFAULT_INTF_DENSITY_INDEX = 1
	Default interference density index for interference traces.
static const uint32_t	INTF_TRACE_DEFAULT_NUMBER_OF_COLUMNS = 2
	Default number of columns for interference traces.
static const uint32_t	POSITION_TRACE_DEFAULT_ALTITUDE_INDEX = 3
	Default altitude value index for positions traces.
static const uint32_t	POSITION_TRACE_DEFAULT_LATITUDE_INDEX = 1
	Default latitude value index for positions traces.
static const uint32_t	POSITION_TRACE_DEFAULT_LONGITUDE_INDEX = 2
	Default longitude value index for positions traces.
static const uint32_t	POSITION_TRACE_DEFAULT_NUMBER_OF_COLUMNS = 4
	Default number of columns for position traces.
static const uint32_t	RX_CNO_TRACE_DEFAULT_NUMBER_OF_COLUMNS = 2
	Default Rx power density index for Rx power traces.
static const uint32_t	RX_CNO_TRACE_DEFAULT_RX_POWER_DENSITY_INDEX = 1
	Default Rx power density index for Rx power traces.
static const uint32_t	RX_POWER_TRACE_DEFAULT_NUMBER_OF_COLUMNS = 2
	Default Rx C/N0 index for C/N0 traces.
static const uint32_t	RX_POWER_TRACE_DEFAULT_RX_POWER_DENSITY_INDEX = 1
	Default Rx C/N0 index for C/N0 traces.

Detailed Description

Class for composite SINR output trace container.

The class contains multiple fading output sample traces and provides an interface to them.

Definition at line 42 of file satellite-composite-sinr-output-trace-container.h.

Member Typedef Documentation

◆ container_t

typedef std::map<key_t, Ptr<SatOutputFileStreamDoubleContainer> > ns3::SatCompositeSinrOutputTraceContainer::container_t

typedef for map of containers

Definition at line 53 of file satellite-composite-sinr-output-trace-container.h.

◆ key_t

typedef std::pair<Address, SatEnums::ChannelType_t> ns3::SatCompositeSinrOutputTraceContainer::key_t

typedef for map key

Definition at line 48 of file satellite-composite-sinr-output-trace-container.h.

Constructor & Destructor Documentation

◆ SatCompositeSinrOutputTraceContainer()

ns3::SatCompositeSinrOutputTraceContainer::SatCompositeSinrOutputTraceContainer ( )

Constructor.

Definition at line 54 of file satellite-composite-sinr-output-trace-container.cc.

References m_enableFigureOutput.

◆ ~SatCompositeSinrOutputTraceContainer()

ns3::SatCompositeSinrOutputTraceContainer::~SatCompositeSinrOutputTraceContainer ( )

Destructor.

Definition at line 60 of file satellite-composite-sinr-output-trace-container.cc.

References Reset().

Here is the call graph for this function:

Member Function Documentation

◆ AddNode()

Ptr< SatOutputFileStreamDoubleContainer > ns3::SatCompositeSinrOutputTraceContainer::AddNode ( std::pair< Address, SatEnums::ChannelType_t > key )

private

Function for adding the node to the map.

Parameters

key key

Returns: pointer to the added container

Definition at line 92 of file satellite-composite-sinr-output-trace-container.cc.

References ns3::SatBaseTraceContainer::CSINR_TRACE_DEFAULT_NUMBER_OF_COLUMNS, ns3::SatEnums::GetChannelTypeName(), ns3::SatEnvVariables::GetInstance(), and m_container.

Referenced by FindNode().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ AddToContainer()

void ns3::SatCompositeSinrOutputTraceContainer::AddToContainer	(	key_t	key,
		std::vector< double >	newItem )

Add the vector containing the values to container matching the key.

Parameters

key	key
newItem	vector of values

Definition at line 177 of file satellite-composite-sinr-output-trace-container.cc.

References ns3::SatBaseTraceContainer::CSINR_TRACE_DEFAULT_NUMBER_OF_COLUMNS, and FindNode().

Here is the call graph for this function:

◆ DoDispose()

void ns3::SatCompositeSinrOutputTraceContainer::DoDispose ( )

Do needed dispose actions.

Definition at line 68 of file satellite-composite-sinr-output-trace-container.cc.

References Reset().

Here is the call graph for this function:

◆ EnableFigureOutput()

void ns3::SatCompositeSinrOutputTraceContainer::EnableFigureOutput ( bool enableFigureOutput )

inline

Function for enabling / disabling figure output.

Parameters

enableFigureOutput

Definition at line 87 of file satellite-composite-sinr-output-trace-container.h.

References m_enableFigureOutput.

◆ FindNode()

Ptr< SatOutputFileStreamDoubleContainer > ns3::SatCompositeSinrOutputTraceContainer::FindNode ( key_t key )

private

Function for finding the container matching the key.

Parameters

key key

Returns: matching container

Definition at line 140 of file satellite-composite-sinr-output-trace-container.cc.

References AddNode(), and m_container.

Referenced by AddToContainer().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::SatCompositeSinrOutputTraceContainer::GetTypeId ( void )

static

NS-3 type id function.

Returns: type id

Definition at line 46 of file satellite-composite-sinr-output-trace-container.cc.

References ns3::SatBaseTraceContainer::SatBaseTraceContainer().

Here is the call graph for this function:

◆ Reset()

void ns3::SatCompositeSinrOutputTraceContainer::Reset ( )

virtual

Function for resetting the variables.

Implements ns3::SatBaseTraceContainer.

Definition at line 78 of file satellite-composite-sinr-output-trace-container.cc.

References m_container, m_enableFigureOutput, and WriteToFile().

Referenced by ~SatCompositeSinrOutputTraceContainer(), and DoDispose().

Here is the call graph for this function:

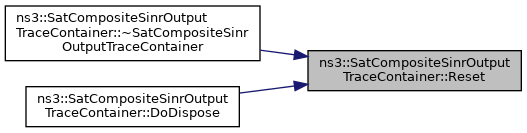

Here is the caller graph for this function:

◆ WriteToFile()

void ns3::SatCompositeSinrOutputTraceContainer::WriteToFile ( )

private

Write the contents of a container matching to the key into a file.

Definition at line 155 of file satellite-composite-sinr-output-trace-container.cc.

References ns3::SatOutputFileStreamDoubleContainer::DECIBEL, m_container, and m_enableFigureOutput.

Referenced by Reset().

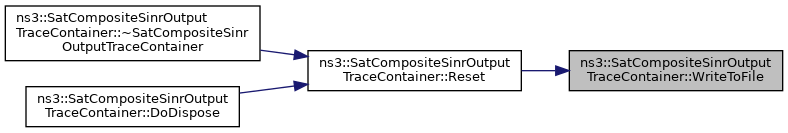

Here is the caller graph for this function:

Member Data Documentation

◆ m_container

container_t ns3::SatCompositeSinrOutputTraceContainer::m_container

private

Map for containers.

Definition at line 121 of file satellite-composite-sinr-output-trace-container.h.

Referenced by AddNode(), FindNode(), Reset(), and WriteToFile().

◆ m_enableFigureOutput

bool ns3::SatCompositeSinrOutputTraceContainer::m_enableFigureOutput

private

Switch for figure output.

Definition at line 126 of file satellite-composite-sinr-output-trace-container.h.

Referenced by SatCompositeSinrOutputTraceContainer(), EnableFigureOutput(), Reset(), and WriteToFile().

The documentation for this class was generated from the following files:

/builds/sns3/satellite/satellite/model/satellite-composite-sinr-output-trace-container.h
/builds/sns3/satellite/satellite/model/satellite-composite-sinr-output-trace-container.cc
