This class implements a tag that carries the MAC address of the sender of the packet. More...

#include "satellite-address-tag.h"

Inheritance diagram for ns3::SatAddressTag:

Collaboration diagram for ns3::SatAddressTag:

Public Member Functions
	SatAddressTag ()
	/ Creates a SatAddressTag instance with an invalid source address. More...

	SatAddressTag (Address addr)
	Creates a SatAddressTag instance with the given source address. More...

virtual void	Deserialize (TagBuffer buf)
	Deserializes information from buffer to this instance of Inherited. More...

virtual TypeId	GetInstanceTypeId () const
	Get the type ID of instance. More...

virtual uint32_t	GetSerializedSize () const
	Inherited from Tag base class. More...

Address	GetSourceAddress () const
	Get the source address. More...

virtual void	Print (std::ostream &os) const
	Print time stamp of this instance of Inherited. More...

virtual void	Serialize (TagBuffer buf) const
	Serializes information to buffer from this instance of Inherited. More...

void	SetSourceAddress (Address addr)
	Set the source address. More...

Static Public Member Functions
static TypeId	GetTypeId ()
	Inherited from ObjectBase base class. More...

Private Attributes
Address	m_sourceAddress
	The source address. More...

Detailed Description

This class implements a tag that carries the MAC address of the sender of the packet.

Address tag is used for statistics purposes.

Definition at line 38 of file satellite-address-tag.h.

Constructor & Destructor Documentation

◆ SatAddressTag() [1/2]

ns3::SatAddressTag::SatAddressTag ( )

/ Creates a SatAddressTag instance with an invalid source address.

Definition at line 34 of file satellite-address-tag.cc.

◆ SatAddressTag() [2/2]

ns3::SatAddressTag::SatAddressTag ( Address addr )

Creates a SatAddressTag instance with the given source address.

Parameters

addr	the source address.

Definition at line 40 of file satellite-address-tag.cc.

Member Function Documentation

◆ Deserialize()

void ns3::SatAddressTag::Deserialize ( TagBuffer buf )

virtual

Deserializes information from buffer to this instance of Inherited.

Parameters

buf	Buffer from which the information is deserialized

Definition at line 76 of file satellite-address-tag.cc.

References m_sourceAddress.

◆ GetInstanceTypeId()

TypeId ns3::SatAddressTag::GetInstanceTypeId ( void ) const

virtual

Get the type ID of instance.

Returns: the object TypeId

Definition at line 56 of file satellite-address-tag.cc.

References GetTypeId().

Here is the call graph for this function:

◆ GetSerializedSize()

uint32_t ns3::SatAddressTag::GetSerializedSize ( void ) const

virtual

Inherited from Tag base class.

Definition at line 62 of file satellite-address-tag.cc.

References m_sourceAddress.

◆ GetSourceAddress()

Address ns3::SatAddressTag::GetSourceAddress ( ) const

Get the source address.

Returns: the source address.

Definition at line 98 of file satellite-address-tag.cc.

References m_sourceAddress.

Referenced by ns3::SatOrbiterFeederPhy::GetE2ESourceAddress(), ns3::SatLorawanNetDevice::Receive(), ns3::SatNetDevice::Receive(), ns3::SatMac::RxTraces(), ns3::SatOrbiterUserPhy::RxTraces(), ns3::SatPhy::RxTraces(), and ns3::SatLorawanNetDevice::Send().

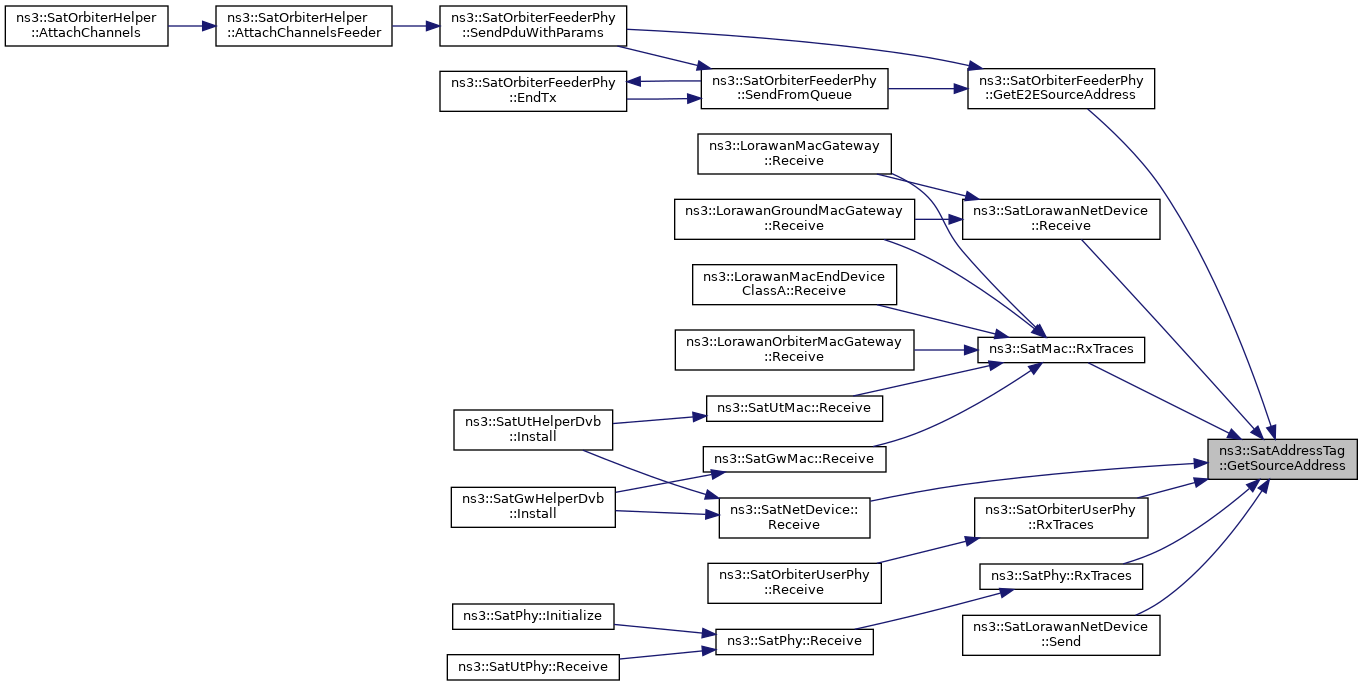

Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::SatAddressTag::GetTypeId ( void )

static

Inherited from ObjectBase base class.

Definition at line 48 of file satellite-address-tag.cc.

Referenced by ns3::SatOrbiterFeederPhy::GetE2ESourceAddress(), GetInstanceTypeId(), ns3::SatLorawanNetDevice::Receive(), ns3::SatNetDevice::Receive(), ns3::SatMac::RxTraces(), ns3::SatOrbiterUserPhy::RxTraces(), ns3::SatPhy::RxTraces(), and ns3::SatLorawanNetDevice::Send().

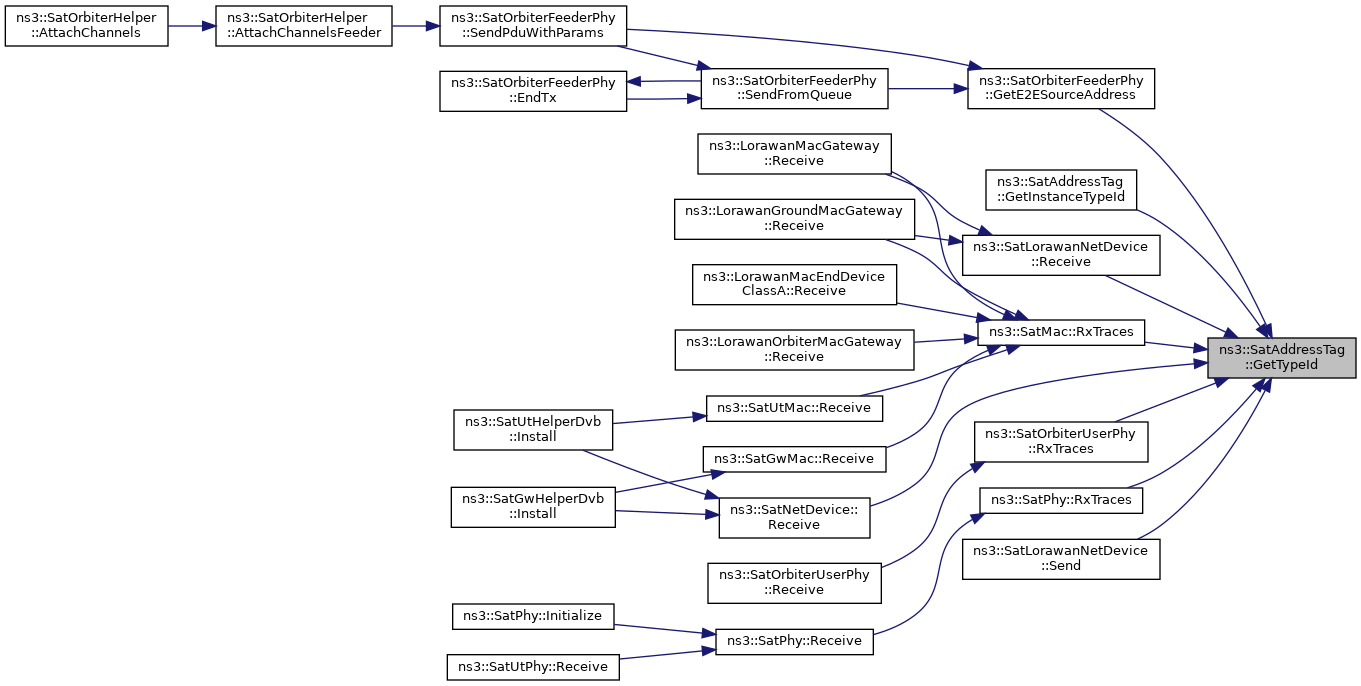

Here is the caller graph for this function:

◆ Print()

void ns3::SatAddressTag::Print ( std::ostream & os ) const

virtual

Print time stamp of this instance of Inherited.

Parameters

&os	Output stream to which tag timestamp is printed.

Definition at line 84 of file satellite-address-tag.cc.

References m_sourceAddress.

◆ Serialize()

void ns3::SatAddressTag::Serialize ( TagBuffer buf ) const

virtual

Serializes information to buffer from this instance of Inherited.

Parameters

buf	Buffer in which the information is serialized

Definition at line 68 of file satellite-address-tag.cc.

References m_sourceAddress.

◆ SetSourceAddress()

void ns3::SatAddressTag::SetSourceAddress ( Address addr )

Set the source address.

Parameters

addr	the source address.

Definition at line 91 of file satellite-address-tag.cc.

References m_sourceAddress.

Member Data Documentation

◆ m_sourceAddress

Address ns3::SatAddressTag::m_sourceAddress

private

The source address.

Definition at line 99 of file satellite-address-tag.h.

Referenced by Deserialize(), GetSerializedSize(), GetSourceAddress(), Print(), Serialize(), and SetSourceAddress().

The documentation for this class was generated from the following files:

/builds/sns3/satellite/satellite/model/satellite-address-tag.h
/builds/sns3/satellite/satellite/model/satellite-address-tag.cc
