Public Member Functions | Static Public Member Functions | Private Attributes | List of all members
ns3::PointToPointIslHelper Class Reference

#include "satellite-point-to-point-isl-helper.h"

+ Inheritance diagram for ns3::PointToPointIslHelper:
+ Collaboration diagram for ns3::PointToPointIslHelper:

Public Member Functions

 PointToPointIslHelper ()

NetDeviceContainer Install (Ptr< Node > a, Ptr< Node > b)


Static Public Member Functions

static TypeId GetTypeId (void)
 Get the type ID. More...


Private Attributes

ObjectFactory m_channelFactory
 Channel Factory. More...

DataRate m_dataRate
 Data rate of ISL link. More...

ObjectFactory m_deviceFactory
 Device Factory. More...

uint32_t m_maxBytes
 The maximum number of bytes accepted by ISL queues. More...

uint32_t m_maxPackets
 The maximum number of packets accepted by ISL queues. More...

ObjectFactory m_queueFactory
 Queue Factory. More...


Detailed Description

Definition at line 39 of file satellite-point-to-point-isl-helper.h.

Constructor & Destructor Documentation

◆ PointToPointIslHelper()

ns3::PointToPointIslHelper::PointToPointIslHelper ( )

Definition at line 67 of file satellite-point-to-point-isl-helper.cc.

References m_channelFactory, m_deviceFactory, and m_queueFactory.

Member Function Documentation

◆ GetTypeId()

TypeId ns3::PointToPointIslHelper::GetTypeId ( void  )
static

Get the type ID.

Returns
the object TypeId

Definition at line 43 of file satellite-point-to-point-isl-helper.cc.

References m_dataRate, m_maxBytes, and m_maxPackets.

◆ Install()

NetDeviceContainer ns3::PointToPointIslHelper::Install ( Ptr< Node >  a,
Ptr< Node >  b
)

Definition at line 75 of file satellite-point-to-point-isl-helper.cc.

References ns3::PointToPointIslChannel::Attach(), m_channelFactory, m_dataRate, m_deviceFactory, m_maxPackets, m_queueFactory, and ns3::PointToPointIslNetDevice::SetAddress().

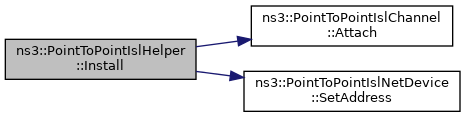

+ Here is the call graph for this function:

Member Data Documentation

◆ m_channelFactory

ObjectFactory ns3::PointToPointIslHelper::m_channelFactory
private

Channel Factory.

Definition at line 56 of file satellite-point-to-point-isl-helper.h.

Referenced by PointToPointIslHelper(), and Install().

◆ m_dataRate

DataRate ns3::PointToPointIslHelper::m_dataRate
private

Data rate of ISL link.

Definition at line 59 of file satellite-point-to-point-isl-helper.h.

Referenced by GetTypeId(), and Install().

◆ m_deviceFactory

ObjectFactory ns3::PointToPointIslHelper::m_deviceFactory
private

Device Factory.

Definition at line 57 of file satellite-point-to-point-isl-helper.h.

Referenced by PointToPointIslHelper(), and Install().

◆ m_maxBytes

uint32_t ns3::PointToPointIslHelper::m_maxBytes
private

The maximum number of bytes accepted by ISL queues.

Definition at line 61 of file satellite-point-to-point-isl-helper.h.

Referenced by GetTypeId().

◆ m_maxPackets

uint32_t ns3::PointToPointIslHelper::m_maxPackets
private

The maximum number of packets accepted by ISL queues.

Definition at line 60 of file satellite-point-to-point-isl-helper.h.

Referenced by GetTypeId(), and Install().

◆ m_queueFactory

ObjectFactory ns3::PointToPointIslHelper::m_queueFactory
private

Queue Factory.

Definition at line 55 of file satellite-point-to-point-isl-helper.h.

Referenced by PointToPointIslHelper(), and Install().

The documentation for this class was generated from the following files:
