Point to Point ISL Channel. More...
#include "satellite-point-to-point-isl-channel.h"
Inheritance diagram for ns3::PointToPointIslChannel:

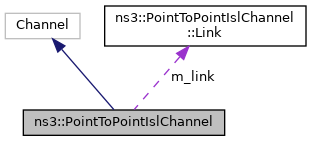

Collaboration diagram for ns3::PointToPointIslChannel:
Classes | |
| class | Link |
| Wire model for the PointToPointIslChannel. More... | |
Public Member Functions | |
| PointToPointIslChannel () | |
| Create a PointToPointIslChannel. More... | |
| void | Attach (Ptr< PointToPointIslNetDevice > device) |
| Attach a given netdevice to this channel. More... | |
| virtual Ptr< NetDevice > | GetDevice (std::size_t i) const |
| Get NetDevice corresponding to index i on this channel. More... | |
| virtual std::size_t | GetNDevices (void) const |
| Get number of devices on this channel. More... | |
| Ptr< PointToPointIslNetDevice > | GetPointToPointIslDevice (std::size_t i) const |
| Get PointToPointIslNetDevice corresponding to index i on this channel. More... | |
| virtual bool | TransmitStart (Ptr< const Packet > p, Ptr< PointToPointIslNetDevice > src, Ptr< Node > dst, Time txTime) |
| Transmit a packet over this channel. More... | |
Static Public Member Functions | |
| static TypeId | GetTypeId (void) |
| Get the TypeId. More... | |
Protected Member Functions | |
| Time | GetDelay (Ptr< MobilityModel > senderMobility, Ptr< MobilityModel > receiverMobility) const |
| Get the delay between two nodes on this channel. More... | |
| Ptr< PointToPointIslNetDevice > | GetDestination (uint32_t i) const |
| Get the destination net-device. More... | |
| Ptr< PointToPointIslNetDevice > | GetSource (uint32_t i) const |
| Get the source net-device. More... | |
| bool | IsInitialized (void) const |
| Check to make sure the link is initialized. More... | |
Private Types | |
| enum | WireState { INITIALIZING , IDLE , TRANSMITTING , PROPAGATING } |
| Wire states. More... | |
Private Attributes | |
| Link | m_link [N_DEVICES] |
| Link model. More... | |
| std::size_t | m_nDevices |
| Devices of this channel. More... | |
| double | m_propagationSpeed |
| propagation speed on the channel More... | |
Static Private Attributes | |
| static const std::size_t | N_DEVICES = 2 |
| Each point to point link has exactly two net devices. More... | |
Detailed Description
Point to Point ISL Channel.
Channel connecting two satellites
This class represents a very simple point to point channel. Think full duplex RS-232 or RS-422 with null modem and no handshaking. There is no multi-drop capability on this channel – there can be a maximum of two point-to-point net devices connected.
There are two "wires" in the channel. The first device connected gets the [0] wire to transmit on. The second device gets the [1] wire. There is a state (IDLE, TRANSMITTING) associated with each wire.
(PointToPointChannel with mobile nodes)
Definition at line 56 of file satellite-point-to-point-isl-channel.h.
Member Enumeration Documentation
◆ WireState
|
private |
Wire states.
Definition at line 165 of file satellite-point-to-point-isl-channel.h.
Constructor & Destructor Documentation
◆ PointToPointIslChannel()
| ns3::PointToPointIslChannel::PointToPointIslChannel | ( | ) |
Create a PointToPointIslChannel.
Definition at line 51 of file satellite-point-to-point-isl-channel.cc.
Member Function Documentation
◆ Attach()
| void ns3::PointToPointIslChannel::Attach | ( | Ptr< PointToPointIslNetDevice > | device | ) |
Attach a given netdevice to this channel.
- Parameters
-
device pointer to the netdevice to attach to the channel
Definition at line 59 of file satellite-point-to-point-isl-channel.cc.
References IDLE, ns3::PointToPointIslChannel::Link::m_dst, m_link, m_nDevices, ns3::PointToPointIslChannel::Link::m_src, ns3::PointToPointIslChannel::Link::m_state, and N_DEVICES.
Referenced by ns3::PointToPointIslHelper::Install().
Here is the caller graph for this function:
◆ GetDelay()
|
protected |
Get the delay between two nodes on this channel.
- Parameters
-
senderMobility location of the sender receiverMobility location of the receiver
- Returns
- Time delay
Definition at line 133 of file satellite-point-to-point-isl-channel.cc.
References m_propagationSpeed.
Referenced by TransmitStart().
Here is the caller graph for this function:
◆ GetDestination()
|
protected |
Get the destination net-device.
- Parameters
-
i the link requested
- Returns
- Ptr to destination PointToPointIslNetDevice for the specified link
Definition at line 151 of file satellite-point-to-point-isl-channel.cc.
References ns3::PointToPointIslChannel::Link::m_dst, and m_link.
◆ GetDevice()
|
virtual |
Get NetDevice corresponding to index i on this channel.
- Parameters
-
i Index number of the device requested
- Returns
- Ptr to NetDevice requested
Definition at line 125 of file satellite-point-to-point-isl-channel.cc.
References GetPointToPointIslDevice().
Here is the call graph for this function:
◆ GetNDevices()
|
virtual |
Get number of devices on this channel.
- Returns
- number of devices on this channel
Definition at line 108 of file satellite-point-to-point-isl-channel.cc.
References m_nDevices.
◆ GetPointToPointIslDevice()
| Ptr< PointToPointIslNetDevice > ns3::PointToPointIslChannel::GetPointToPointIslDevice | ( | std::size_t | i | ) | const |
Get PointToPointIslNetDevice corresponding to index i on this channel.
- Parameters
-
i Index number of the device requested
- Returns
- Ptr to PointToPointIslNetDevice requested
Definition at line 116 of file satellite-point-to-point-isl-channel.cc.
References m_link, and ns3::PointToPointIslChannel::Link::m_src.
Referenced by GetDevice().
Here is the caller graph for this function:
◆ GetSource()
|
protected |
Get the source net-device.
- Parameters
-
i the link (direction) requested
- Returns
- Ptr to source PointToPointIslNetDevice for the specified link
Definition at line 143 of file satellite-point-to-point-isl-channel.cc.
References m_link, and ns3::PointToPointIslChannel::Link::m_src.
◆ GetTypeId()
|
static |
Get the TypeId.
- Returns
- The TypeId for this class
Definition at line 37 of file satellite-point-to-point-isl-channel.cc.
References m_propagationSpeed, and ns3::SatConstVariables::SPEED_OF_LIGHT.
◆ IsInitialized()
|
protected |
Check to make sure the link is initialized.
- Returns
- true if initialized, asserts otherwise
Definition at line 159 of file satellite-point-to-point-isl-channel.cc.
References INITIALIZING, and m_link.
◆ TransmitStart()
|
virtual |
Transmit a packet over this channel.
- Parameters
-
p Packet to transmit src source PointToPointIslNetDevice dst node at the other end of the channel txTime transmission time
- Returns
- true if successful (always true)
Definition at line 81 of file satellite-point-to-point-isl-channel.cc.
References GetDelay(), INITIALIZING, ns3::PointToPointIslChannel::Link::m_dst, m_link, ns3::PointToPointIslChannel::Link::m_src, and ns3::PointToPointIslNetDevice::Receive().

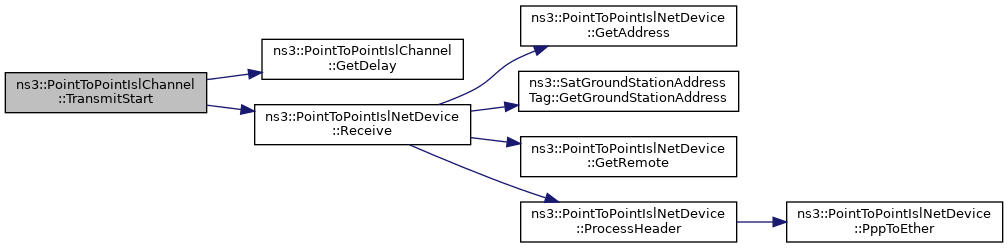

Here is the call graph for this function:
Member Data Documentation
◆ m_link
Link model.
Definition at line 198 of file satellite-point-to-point-isl-channel.h.
Referenced by Attach(), GetDestination(), GetPointToPointIslDevice(), GetSource(), IsInitialized(), and TransmitStart().
◆ m_nDevices
|
private |
Devices of this channel.
Definition at line 160 of file satellite-point-to-point-isl-channel.h.
Referenced by Attach(), and GetNDevices().
◆ m_propagationSpeed
|
private |
propagation speed on the channel
Definition at line 159 of file satellite-point-to-point-isl-channel.h.
Referenced by GetDelay(), and GetTypeId().
◆ N_DEVICES
|
staticprivate |
Each point to point link has exactly two net devices.
Definition at line 157 of file satellite-point-to-point-isl-channel.h.
Referenced by Attach().
The documentation for this class was generated from the following files:
- /builds/sns3/satellite/satellite/model/satellite-point-to-point-isl-channel.h
- /builds/sns3/satellite/satellite/model/satellite-point-to-point-isl-channel.cc
