ns3::LoraBeamTag Class Reference

Tag used to save various data about a packet, like its Spreading Factor and data about interference. More...

#include "lora-beam-tag.h"

Inheritance diagram for ns3::LoraBeamTag:

Collaboration diagram for ns3::LoraBeamTag:

Public Member Functions
	LoraBeamTag (uint8_t beamId=0)
	Create a LoraBeamTag with a given beam ID. More...
virtual	~LoraBeamTag ()
virtual void	Deserialize (TagBuffer i)
uint8_t	GetBeamId () const
	Read which beam ID this packet was transmitted with. More...
virtual TypeId	GetInstanceTypeId (void) const
virtual uint32_t	GetSerializedSize () const
virtual void	Print (std::ostream &os) const
virtual void	Serialize (TagBuffer i) const
void	SetBeamId (uint8_t beamId)
	Set which beamId this packet was transmitted with. More...

Static Public Member Functions
static TypeId	GetTypeId (void)

Private Attributes
uint8_t	m_beamId
	The beam ID used by the packet. More...

Detailed Description

Tag used to save various data about a packet, like its Spreading Factor and data about interference.

Definition at line 33 of file lora-beam-tag.h.

Constructor & Destructor Documentation

LoraBeamTag()

ns3::LoraBeamTag::LoraBeamTag

(

uint8_t

beamId = 0

)

Create a LoraBeamTag with a given beam ID.

Parameters

beamId

The beam ID associated to this packet

Definition at line 45 of file lora-beam-tag.cc.

~LoraBeamTag()

ns3::LoraBeamTag::~LoraBeamTag ( )

virtual

Definition at line 50 of file lora-beam-tag.cc.

Member Function Documentation

Deserialize()

void ns3::LoraBeamTag::Deserialize ( TagBuffer  i )

virtual

Definition at line 67 of file lora-beam-tag.cc.

References m_beamId.

GetBeamId()

uint8_t ns3::LoraBeamTag::GetBeamId

(

)

const

Read which beam ID this packet was transmitted with.

Returns

This tag's packet's beam ID.

Definition at line 79 of file lora-beam-tag.cc.

References m_beamId.

Referenced by ns3::LoraEndDeviceStatus::InsertReceivedPacket(), and ns3::LoraForwarder::ReceiveFromPointToPoint().

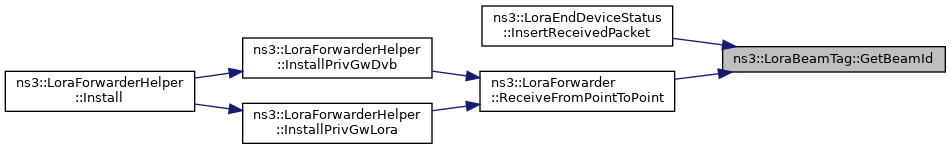

Here is the caller graph for this function:

GetInstanceTypeId()

TypeId ns3::LoraBeamTag::GetInstanceTypeId ( void  ) const

virtual

Definition at line 40 of file lora-beam-tag.cc.

References GetTypeId().

Here is the call graph for this function:

GetSerializedSize()

uint32_t ns3::LoraBeamTag::GetSerializedSize ( void  ) const

virtual

Definition at line 55 of file lora-beam-tag.cc.

GetTypeId()

TypeId ns3::LoraBeamTag::GetTypeId ( void  )

static

Definition at line 33 of file lora-beam-tag.cc.

Referenced by GetInstanceTypeId().

Here is the caller graph for this function:

Print()

void ns3::LoraBeamTag::Print ( std::ostream &  os ) const

virtual

Definition at line 73 of file lora-beam-tag.cc.

References m_beamId.

Serialize()

void ns3::LoraBeamTag::Serialize ( TagBuffer  i ) const

virtual

Definition at line 61 of file lora-beam-tag.cc.

References m_beamId.

SetBeamId()

void ns3::LoraBeamTag::SetBeamId

(

uint8_t

beamId

)

Set which beamId this packet was transmitted with.

Parameters

beamId

The beam ID.

Definition at line 85 of file lora-beam-tag.cc.

References m_beamId.

Referenced by ns3::LoraNetworkStatus::GetReplyForDevice().

Here is the caller graph for this function:

Member Data Documentation

m_beamId

uint8_t ns3::LoraBeamTag::m_beamId

private

The beam ID used by the packet.

Definition at line 68 of file lora-beam-tag.h.

Referenced by Deserialize(), GetBeamId(), Print(), Serialize(), and SetBeamId().

---

The documentation for this class was generated from the following files:

• /builds/sns3/satellite/satellite/model/lora-beam-tag.h
• /builds/sns3/satellite/satellite/model/lora-beam-tag.cc
